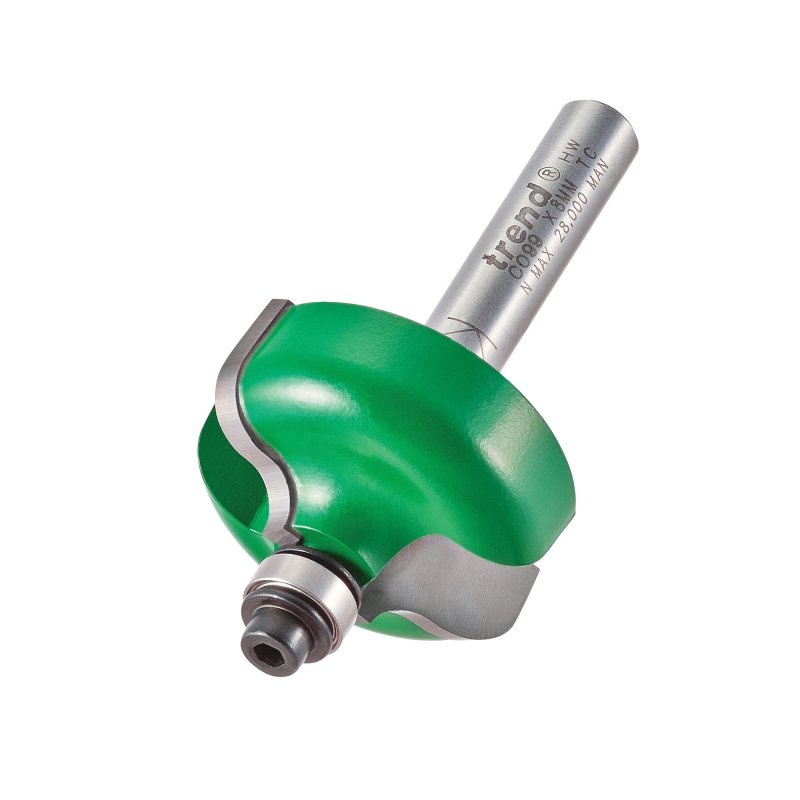

Trend C099x8MMTC CraftPro Guided Ogee Mould Router Cutter 6.3/4.8mm Radius x 8mm Shank

TREND C099x8MMTC
CRAFT PRO ROUTER CUTTER
GUIDED OGEE MOULD 6.3/4.8MM RAD

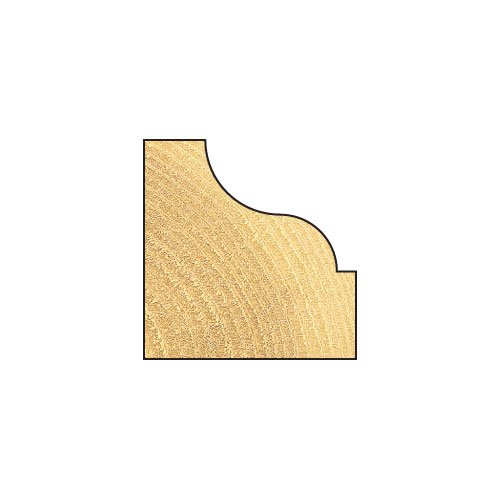

• Supplied with extra 1/2 inch bearing for removing the lower quirk.

• Shank Diameter: 8 mm
• Cutter Diameter Metric (D): 35 mm
• Cut Length Imperial (C): 11/16 inch
• Cut Length Metric (C): 17.5 mm
• Bearing Diameter Metric: 9.5 mm
• B2 Metric: 12.7 mm
• R Metric: 6.3 mm
• R2 Metric: 4.8 mm
• Overall Length Metric: 66.5 mm
• Grade: TCT - Tungsten Carbide Tipped

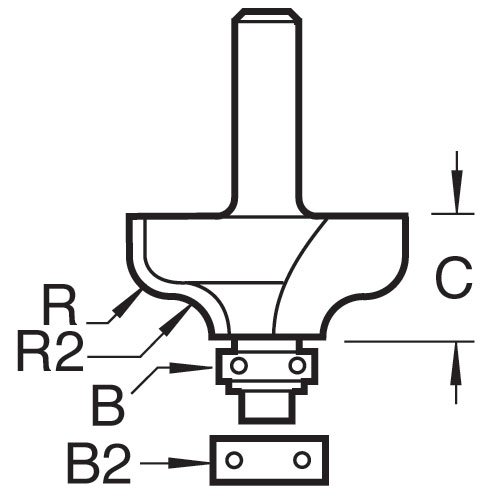

Dimensions:
C=11/16 inch
C=17.5 mm
B=9.5 mm
B2=12.7 mm
R=6.3 mm
R2=4.8 mm
Overall length=66.5 mm
Shank Diameter=8 mm


Shank Diameter: 8 mm

Cut Length Imperial: 11/16

Cut Length Metric: 17.5

Bearing Diameter Metric: 9.5
