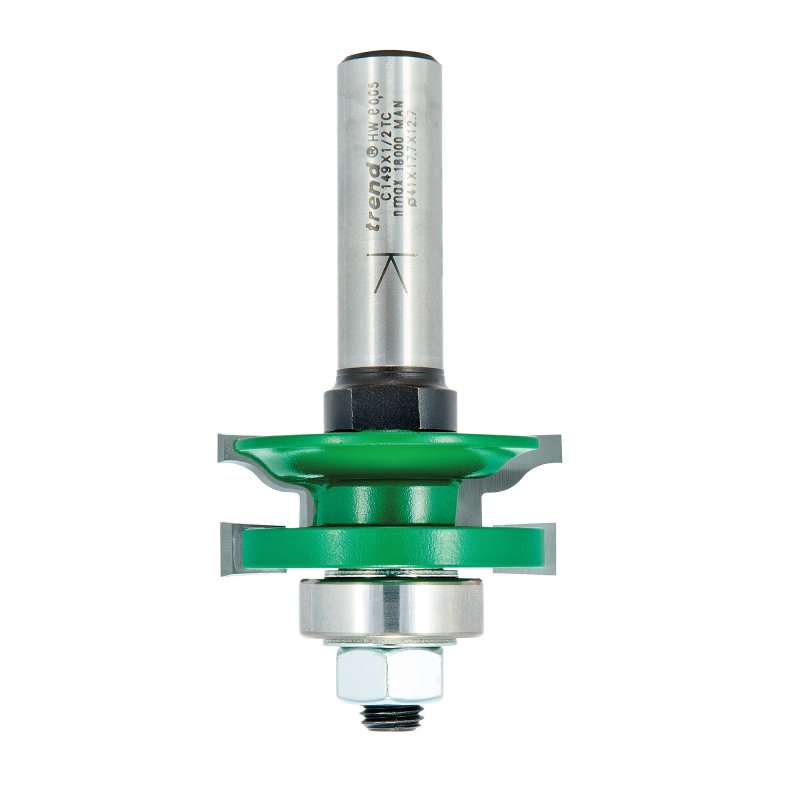

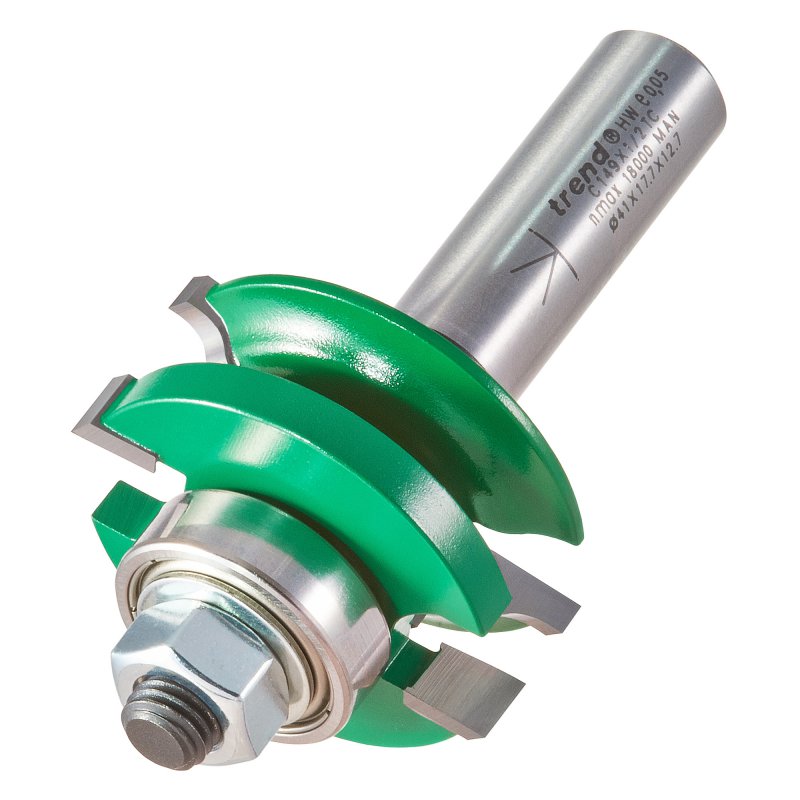

Trend C149X1/2TC CraftPro Combination Ogee Profile Scriber Router Cutter 4mm Radius x 1/2 Shank

TREND C149X1/2TC
CRAFT PRO ROUTER CUTTER
GUIDED COMBINATION OGEE PROFILE SCRIBER 4.0MM RADIUS

• The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets.
• With the combination type, components are re-arranged on the arbor to cut the profile or the scribe.
• Cuts both parts of the joint by reassembly of the tool.
• Router table use only.
• 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router.
• For certain routers the aperture in the base may need to be enlarged.
• A workholding device should be used when cutting the scribe cut on the rail ends.
• The cutting edges should be staggered to each other.

• Shank Diameter: 1/2 inch
• Cutter Diameter Metric (D): 41 mm
• Cut Length Metric (C): 17 mm
• Metric (C2): 6.35 mm
• Bearing Diameter Metric (B): 22 mm
• Metric (R): 4 mm
• Overall Length Metric: 80 mm
• Timber thickness min: 18 mm
• Timber thickness max: 22 mm
• Grade: TCT - Tungsten Carbide Tipped

Trend Craft Pro C149, C156, C157 Instructions
