Trend C156X1/4TC CraftPro Guided Combination Flat Classic Profile Scriber 3.5mm Rad x 1/4 Shank

X
Product Code: TREC156X1/4TC
Brand: Trend
In Stock
Was £64.59 Inc. VAT
Now £48.83!
£40.69 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

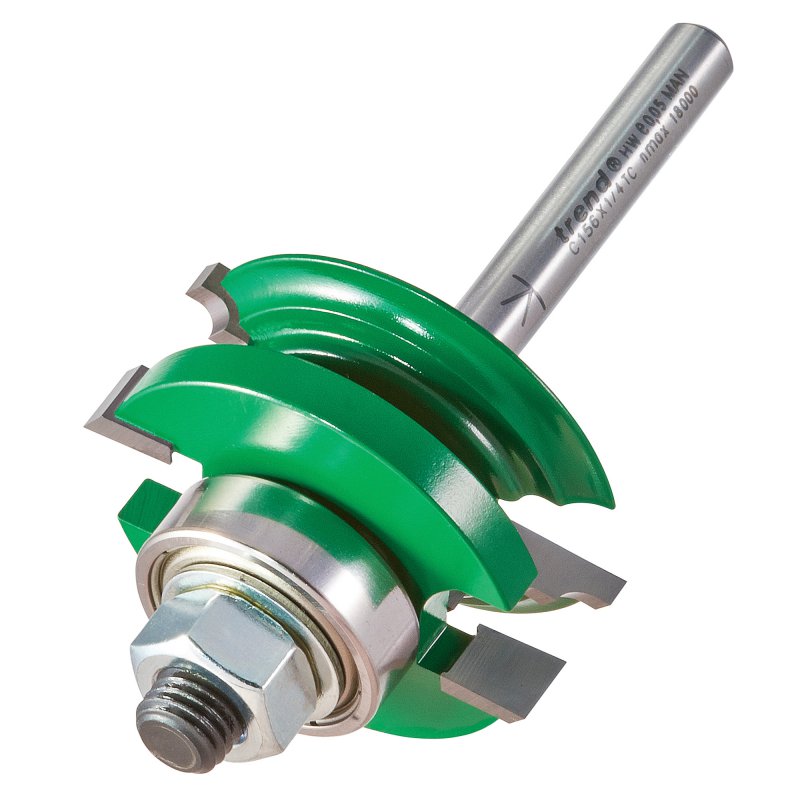

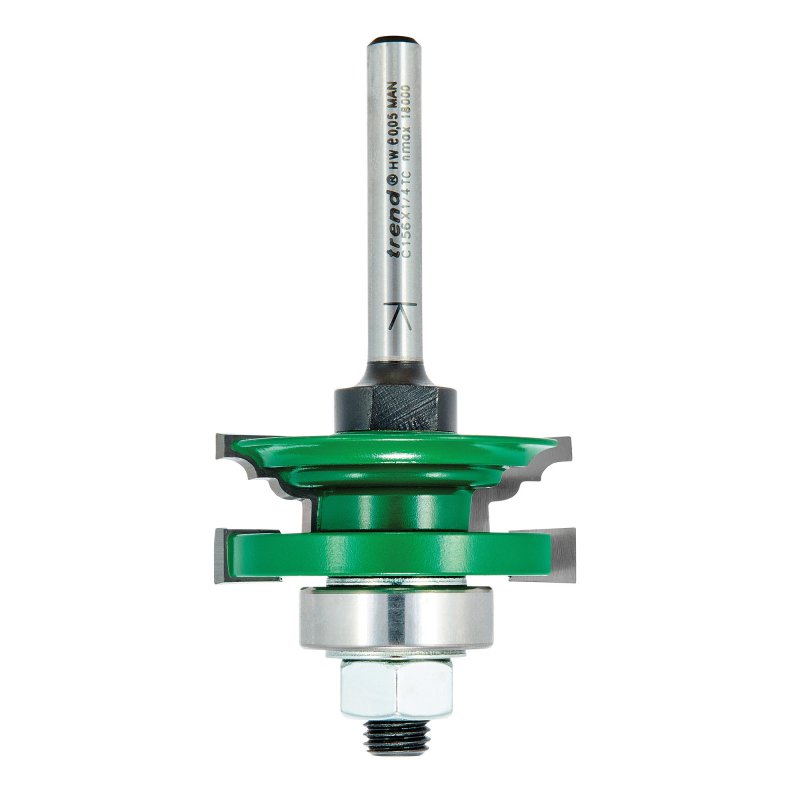

TREND C156X1/4TC
CRAFT PRO ROUTER CUTTER
GUIDED COMBINATION FLAT CLASSIC PROFILE SCRIBER 3.5MM RAD



Key Features

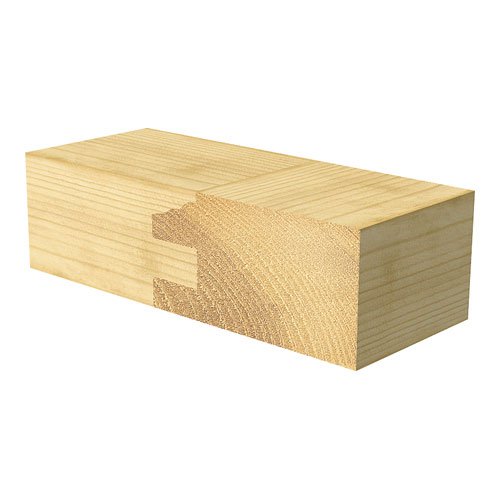

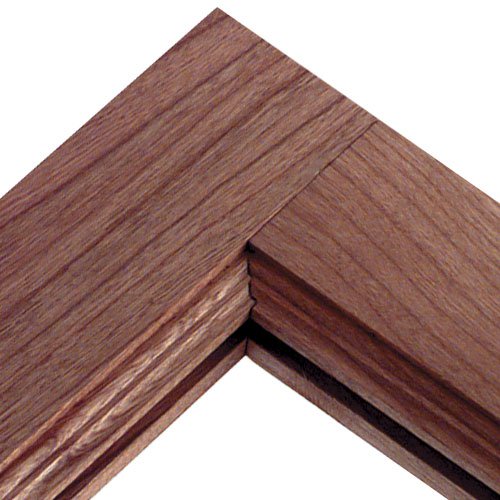

  • The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets.

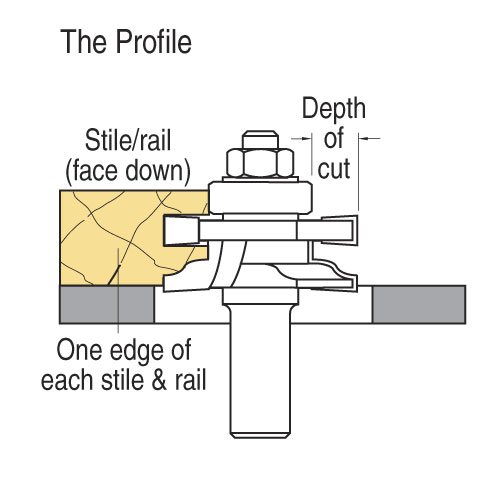

  • With the combination type, components are re-arranged on the arbor to cut the profile or the scribe.

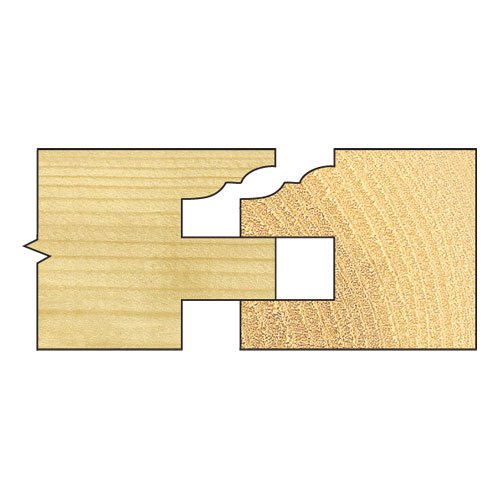

    Cuts both parts of the joint by only changing the cutter height.
  • No reassembly of the tool is required so saving time.
    Router table use only. 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router.
  • For certain routers the aperture in the base may need to be enlarged.

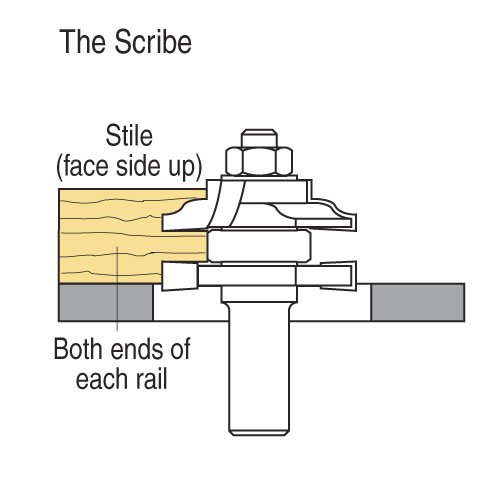

  • A workholding device should be used when cutting the scribe cut on the rail ends.
  • The cutting edges should be staggered to each other.
  • When using Easyset cutters take several passes.

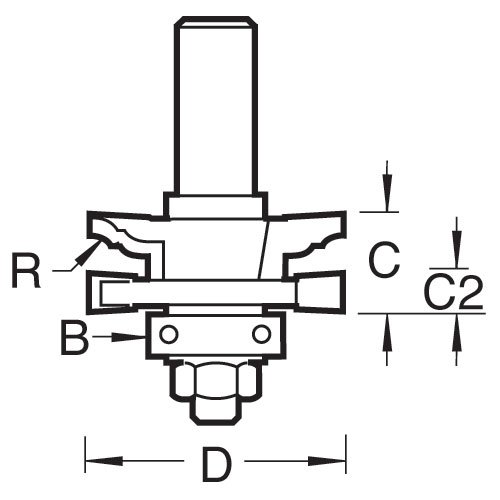

Specification

  • Shank Diameter: 1/4 inch
  • Cutter Diameter Metric (D): 41 mm
  • Cut Length Metric (C): 17 mm
  • Metric (C2): 6.35 mm
  • Bearing Diameter Metric (B): 22 mm
  • Metric (R): 3.5 mm
  • Overall Length Metric: 80 mm
  • Timber thickness min: 18 mm
  • Timber thickness max: 22 mm
  • Grade: TCT - Tungsten Carbide Tipped



Trend Craft Pro C149, C156, C157 Instructions
