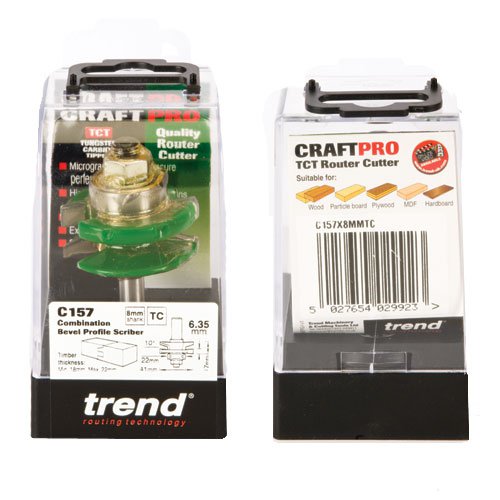

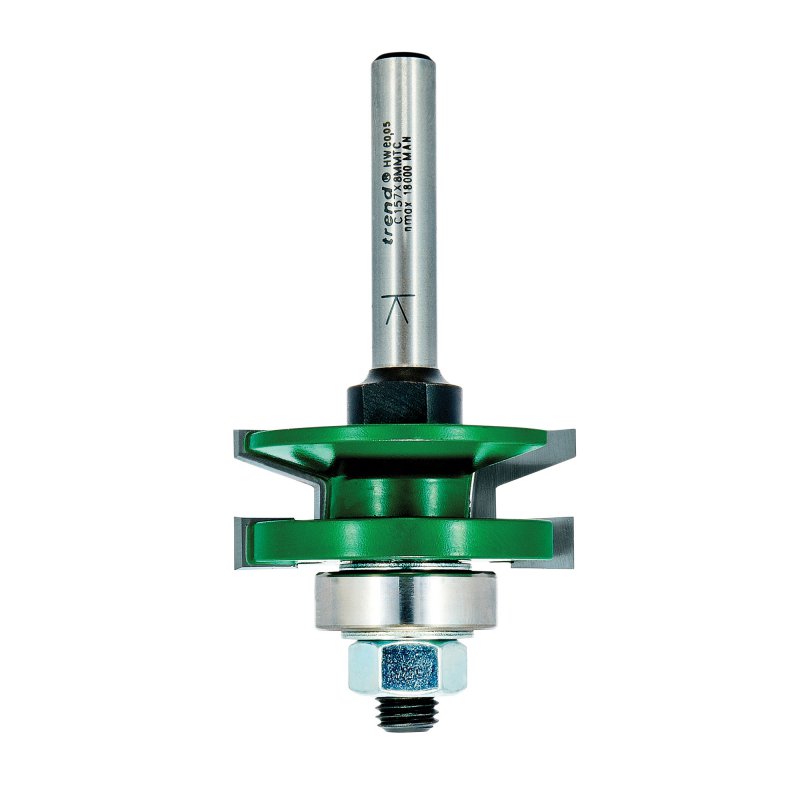

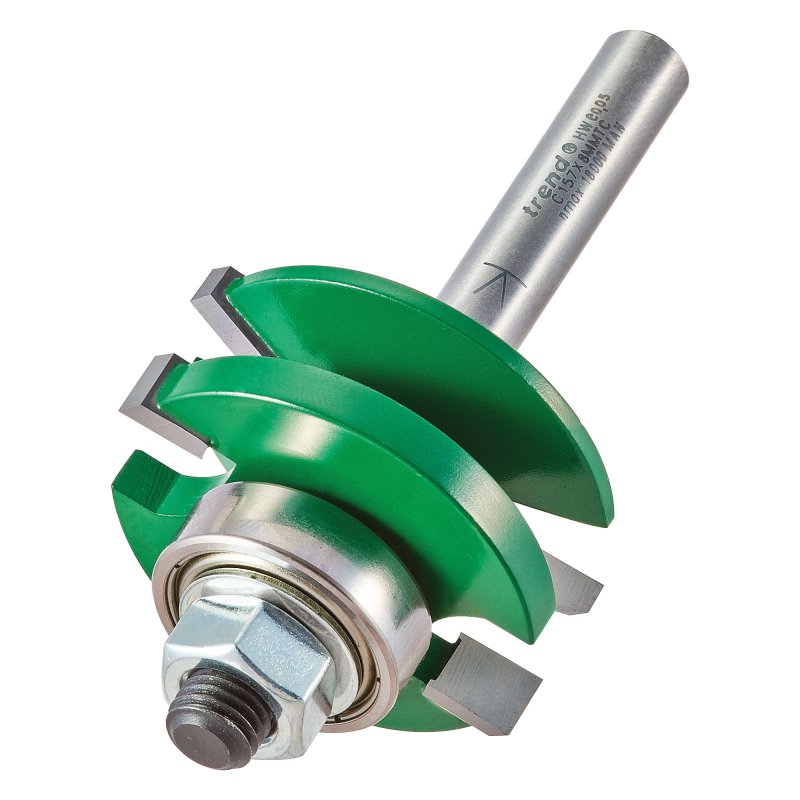

Trend C157X8MMTC CraftPro Guided Combination Bevel Profile Scriber 10 Deg x 8mm Shank
Product Code: TREC157X8MMTC
Brand: Trend
Low Stock - Please Call For Availability
£59.82 Inc. VAT
£49.85 Exc. VAT
TREND C157X8MMTC
GUIDED COMBINATION BEVEL PROFILE SCRIBER 10 DEG
Key Features
- The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets.
- With the combination type, components are re-arranged on the arbor to cut the profile or the scribe.
Cuts both parts of the joint by only changing the cutter height.
- No reassembly of the tool is required so saving time.
Router table use only. 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router.
- For certain routers the aperture in the base may need to be enlarged.
- A workholding device should be used when cutting the scribe cut on the rail ends.
- The cutting edges should be staggered to each other.
- When using Easyset cutters take several passes.
Specification
- Shank Diameter: 8 mm
- Cutter Diameter Metric (D): 41 mm
- Cut Length Metric (C): 17 mm
- Metric (C2): 6.35 mm
- Bearing Diameter Metric (B): 22 mm
- Angle (A): 10 degrees
- Overall Length Metric: 81 mm
- Timber thickness min: 18 mm
- Timber thickness max: 22 mm
- Grade: TCT - Tungsten Carbide Tipped
Trend Craft Pro C149, C156, C157 Instructions
