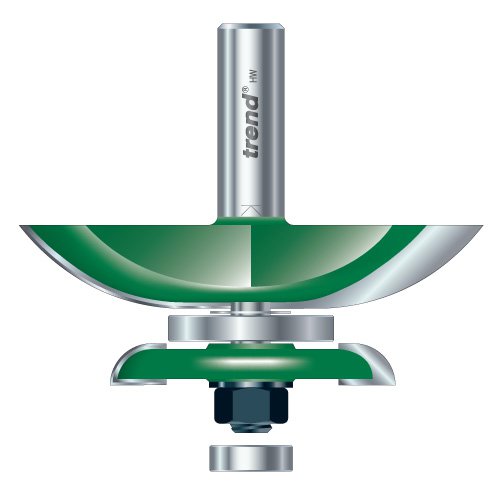

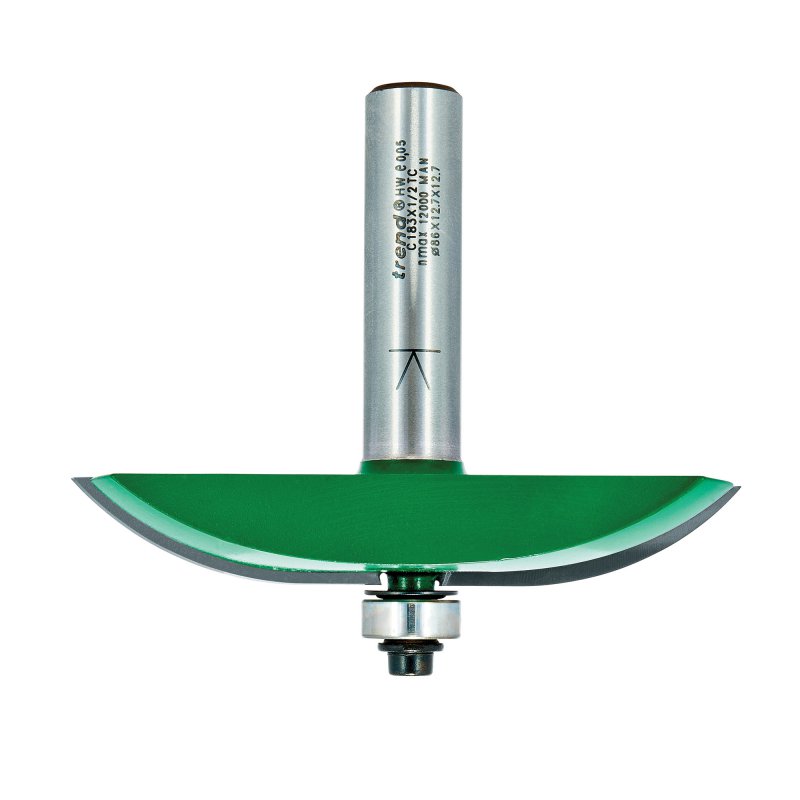

Trend C183X1/2TC CraftPro Guided Panel Raiser Router Cutter 40mm Radius

TREND C183X1/2TC
CRAFT PRO ROUTER CUTTER
GUIDED PANEL RAISER 40.0MM RAD

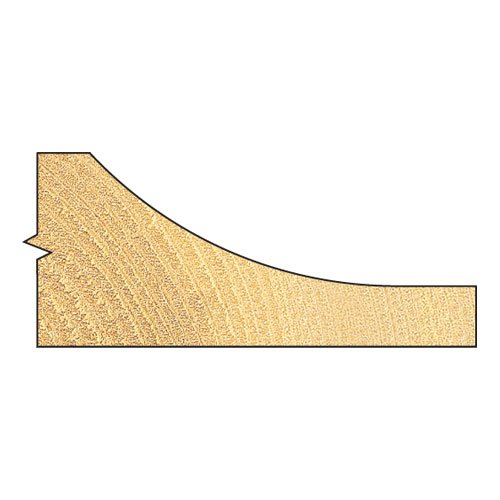

• Panel raiser cutters for producing the panel for cabinet panelled doors.
• The tool is fitted with a back cutter to ensure a maximum panel tongue thickness of 6.3mm.
• Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed.
• For use on natural timber and MDF.
• Take several passes by adjusting back fence position with each pass.
• Stationary use only.
• Back cutter must be fitted at 90 degrees to main tool to reduce the cutting impact.

• Cutter Diameter Metric (D): 86 mm
• Cut Length Metric (C): 12.7 mm
• Bearing Diameter Metric (B): 12.7 mm
• Metric (R): 40 mm
• Overall Length Metric: 75 mm
• Shank diameter: 1/2 inch
• Grade: TCT - Tungsten Carbide Tipped
