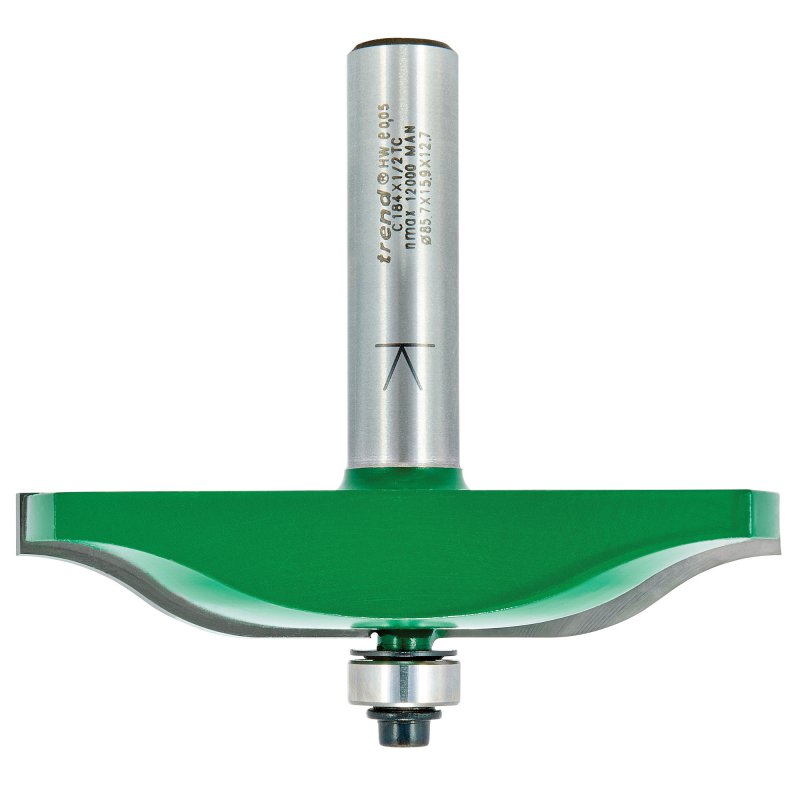

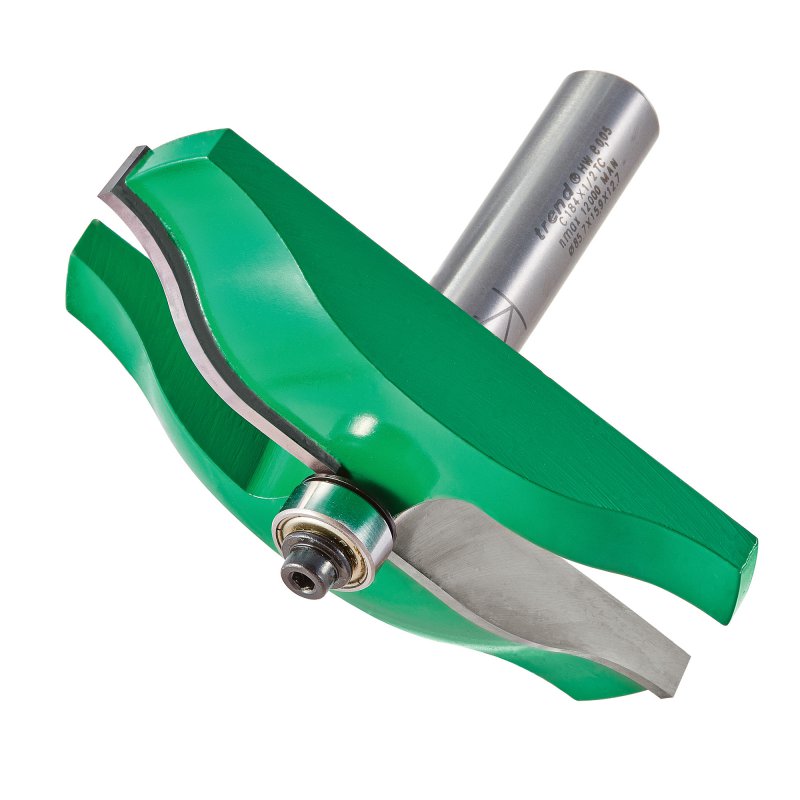

Trend C184X1/2TC CraftPro Guided Ogee Panel Raiser Router Cutter 22.2mm Rad x 1/2 Shank

X
Product Code: TREC184X1/2TC
Brand: Trend
In Stock
£81.42 Inc. VAT
£67.85 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Trend

TREND C184X1/2TC
CRAFT PRO ROUTER CUTTER

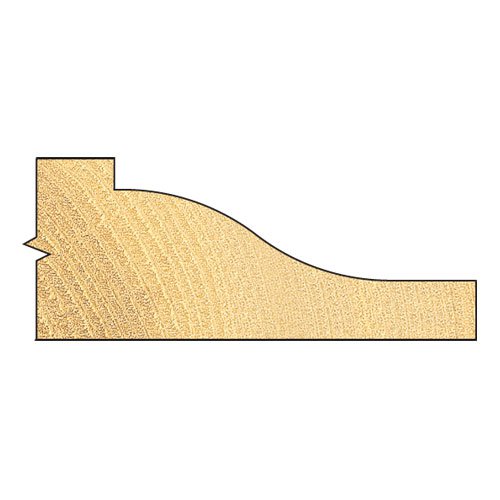

GUIDED OGEE PANEL RAISER 22.2MM RAD



Key Features

  • Panel raiser cutters for producing the panel for cabinet panelled doors.
  • The tool is fitted with a back cutter to ensure a maximum panel tongue thickness of 6.3mm.
  • Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed.
  • For use on natural timber and MDF.
  • Take several passes by adjusting back fence position with each pass.
  • Stationary use only.
  • Back cutter must be fitted at 90 degrees to main tool to reduce the cutting impact.



Specification

  • Shank Diameter: 1/2 inch
  • Cutter Diameter Metric (D): 85.7 mm
  • Cut Length Metric (C): 15.9 mm
  • Bearing Diameter Metric (B): 12.7 mm
  • Metric (R): 22.2 mm
  • Overall Length Metric: 78.5 mm
  • Grade: TCT - Tungsten Carbide Tipped
