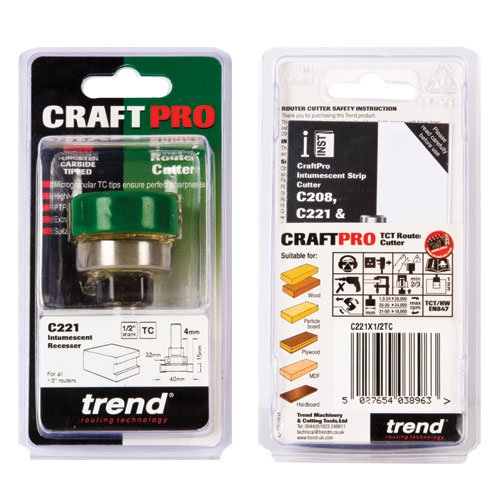

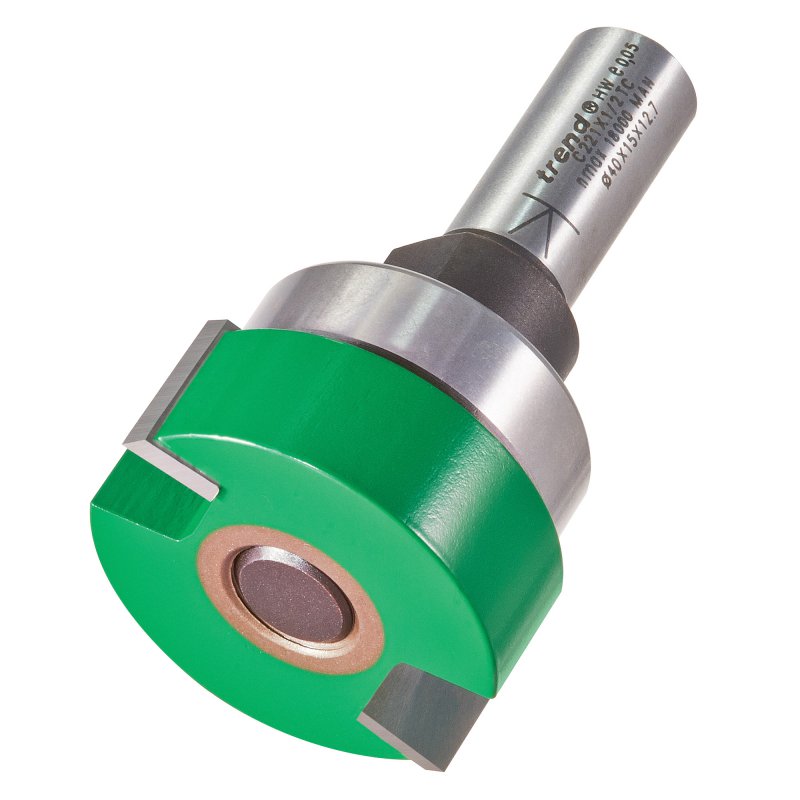

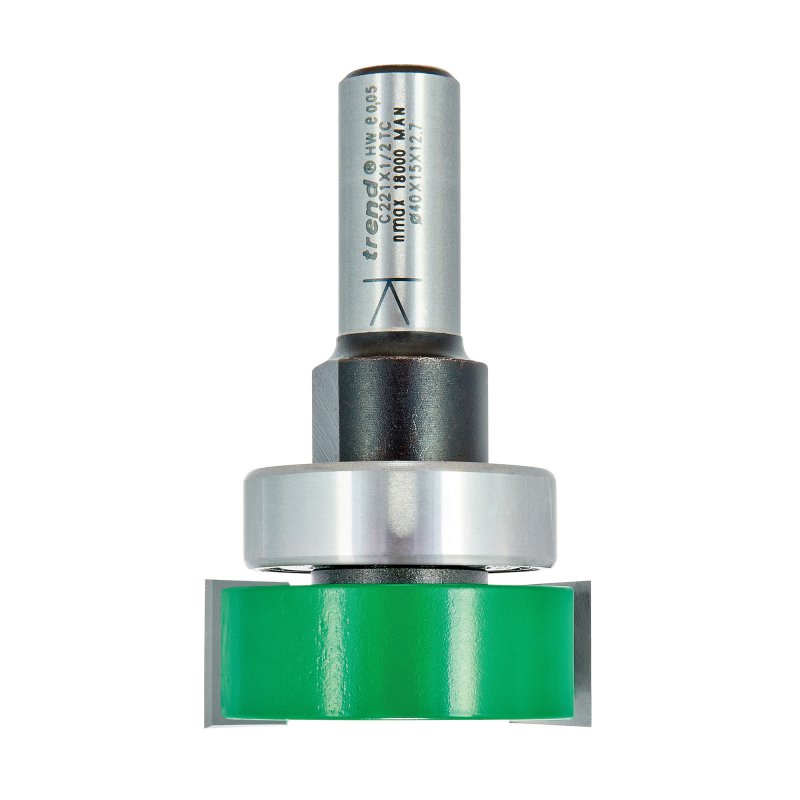

Trend C221X1/2TC CraftPro Guided Intumescent Router Cutter 15mm Cut x 4mm Depth x 1/2 Shank

TREND C221X1/2TC
CRAFT PRO ROUTER CUTTER
GUIDED INTUMESCENT RECESSER 15.0MM X 4.0MM CUT

• Bearing guided intumescent strip cutter for routing the groove for intumescent strip in a frame or door.
• Three sizes available to suit 4mm thick strip of widths 10mm, 15mm or 20mm.
• Intumescent strip is used to create an effective barrier to both fire and smoke.
• Choose alternative bearings to suit other thicknesses of intumescent strip.

• Shank Diameter: 1/2 inch
• Diameter Metric (D): 40 mm
• Cut Length Metric (C): 15 mm
• Bearing Diameter Metric (B): 32 mm
• Metric (E): 4 mm
• Fire check: 30 minutes
• Overall Length Metric: 67 mm
• Grade: TCT - Tungsten Carbide Tipped

Trend C208, C221, C223 Instructions
