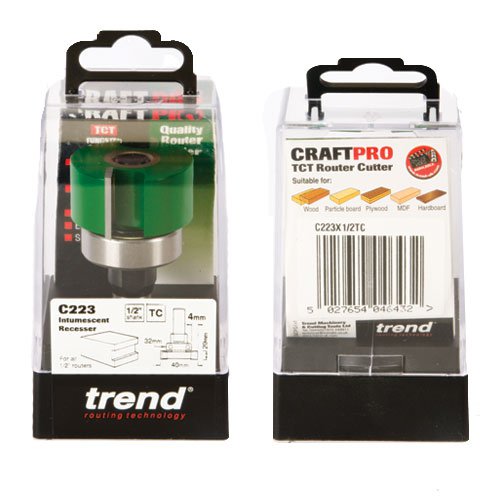

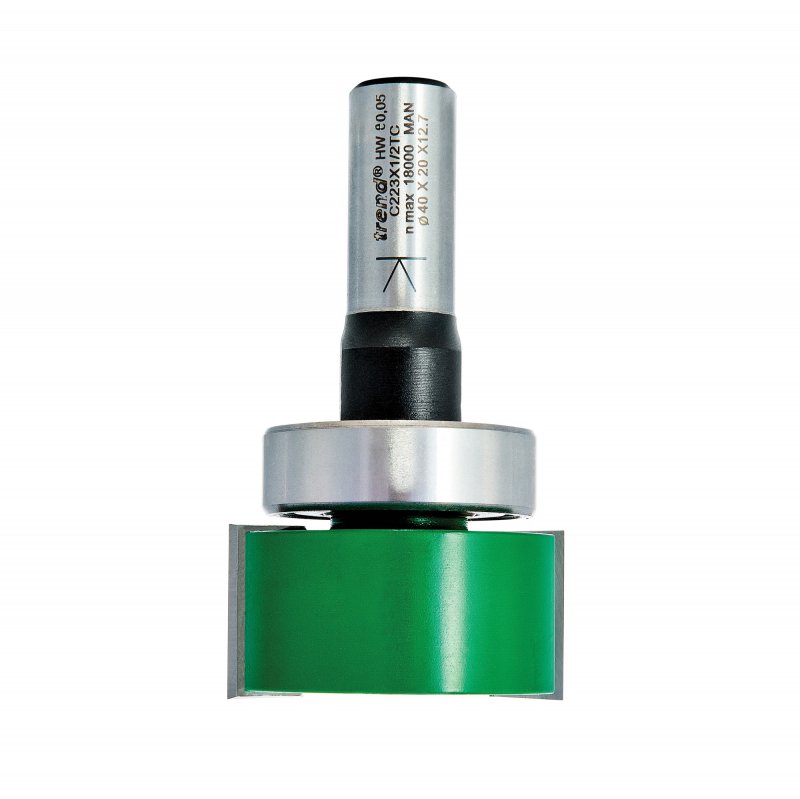

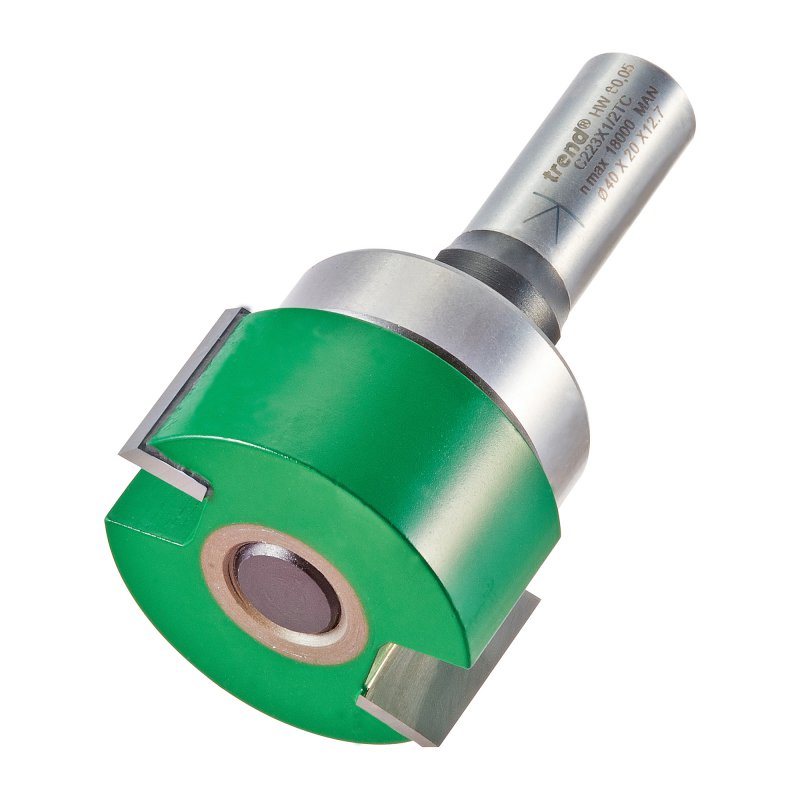

Trend C223X1/2TC CraftPro Guided Intumescent Router Cutter 20mm Cut x 4mm Depth x 1/2 Shank

TREND C223X1/2TC
GUIDED INTUMESCENT RECESSER 20.0MM X 4.0MM CUT

• For either frame or door applications, with standard Intumescent Strip.
• Neatly cuts grooves on doors or frames to accept Intumescent Strip which enables the formation of effective barriers to both fire and smoke.
• By using alternative ball bearings diameters other seal thicknesses can be introduced.
• Alternative bearings can be purchased to suit other thicknesses.

• Shank Diameter: 1/2 inch
• Diameter Metric (D): 40 mm
• Cut Length Metric (C): 20 mm
• Bearing Diameter Metric (B): 32 mm
• Metric (E): 4 mm
• Overall Length Metric: 72 mm
• Fire check: 60 minutes
• Grade: TCT - Tungsten Carbide Tipped

Trend C208, C221, C223 Instructions
