Trend E/SCRIBE Easy Scribe Multi-Purpose Scribing Tool

Trend Hand Tools

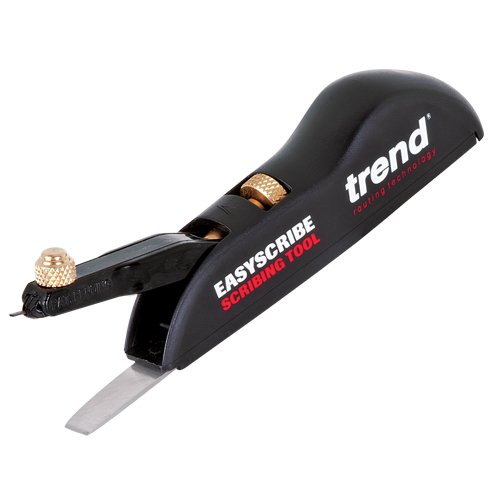

Trend EasyScribe - Multi-Purpose Scribing Tool
Ref: E/SCRIBE

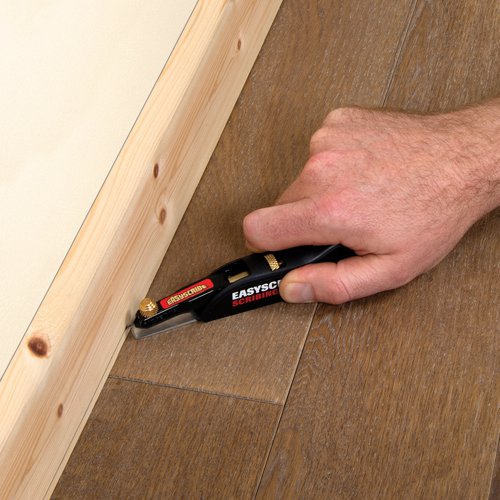

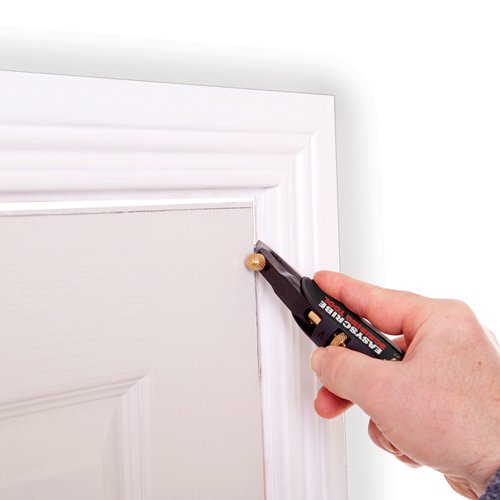

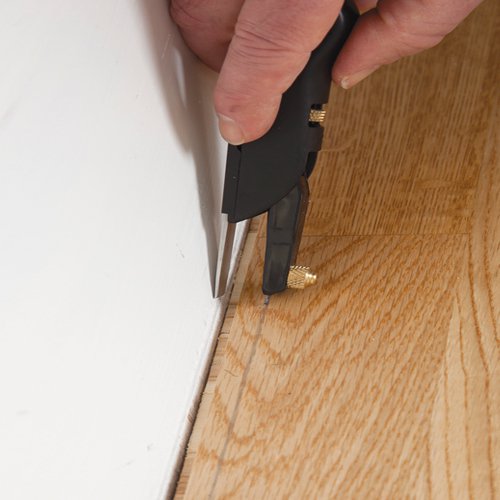

• Handheld scribing tool for architrave, skirting, scribing doors, scribing worktops, setting hinge recess depth etc.
• Articulated arm allows the required offset to be set precisely from 1mm to 40mm giving full flexibility.
• Use for a multitude of applications including hanging doors, installing worktops, plinths & skirting, architraves, flooring, window boards, panelling, shop fitting and tiling.

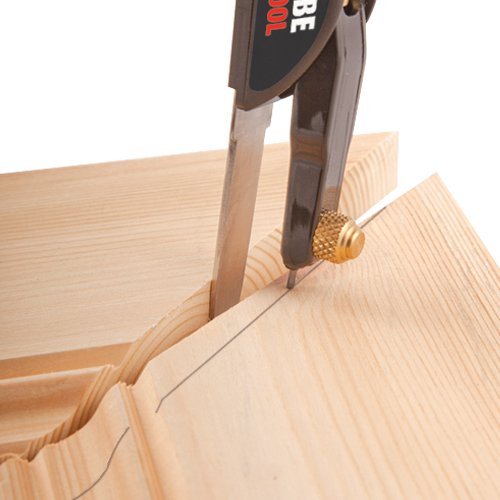

• Can be used as a marking gauge.
• Thin guide plate (0.5mm) for access into narrow gaps ensuing full versatility.
• Flat base ensures object surface remains in contact ensuring a consistent scribe.
• Knurled foregrip sliding steel guide plate allows up to 50mm projection.
• Thumb wheel fine adjustment.
• Marks narrow pencil line of 0.7mm width ensuring accuracy.
• Spare graphite refillls available.
• Patent pending EP11754466.8.
• US patent US 9,073,203.

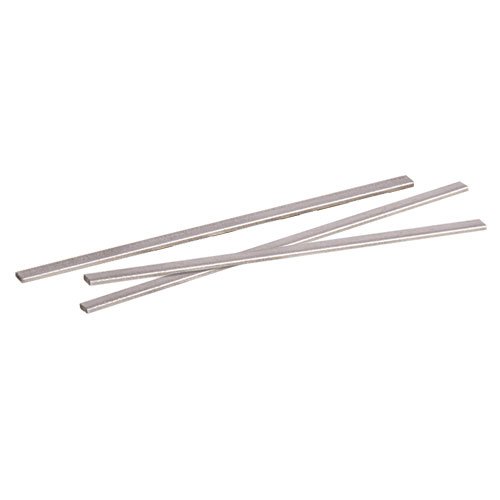

• 3 x Graphite leads

• Graphite width 0.7mm
• Graphite grade 2H
