Trend GAUGE/D60 - Digital Router Depth Gauge 60mm Jaw
Product Code: TRE/GAUGE/D60
Brand: Trend
Was £19.67 Inc. VAT
Now £15.00!
£12.50 Exc. VAT

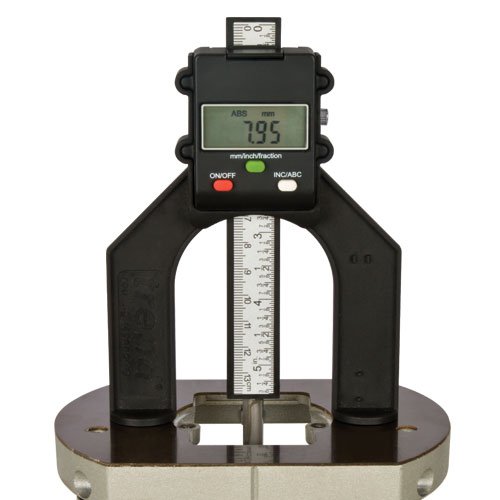

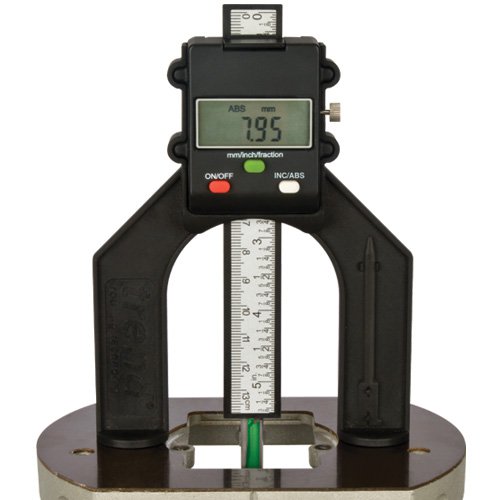

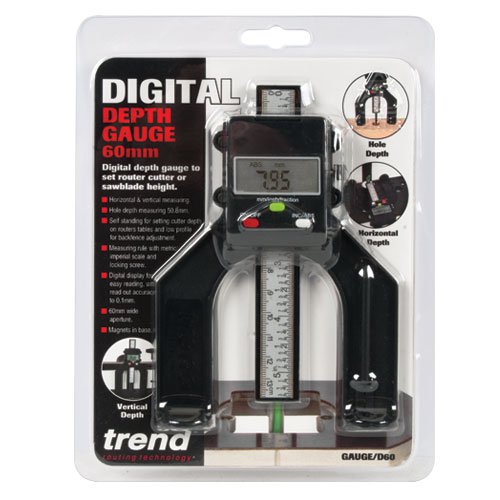

Trend Digital Depth Gauge - for setting and checking depths for routing and sawing applications - (Ref: GAUGE/D60)

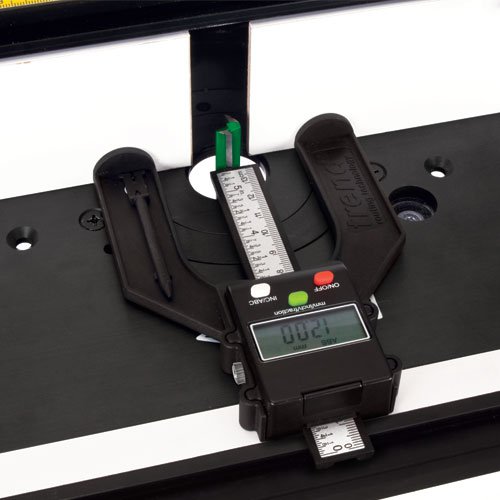

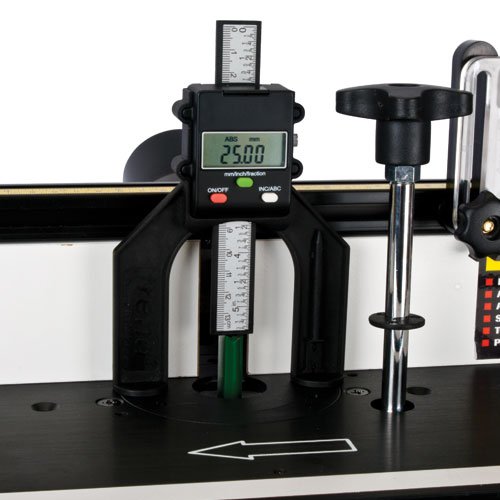

- Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
- For hand routers, router tables and saw benches.
- LCD readout for mm, imperial and fractions with auto shut off 5 mins.
- Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).
- Self standing with magnetic feet and flat back.
- Injection plastic moulding with plastic rule.
- 60mm wide aperture.
- Read-out has relative co-ordinate and absolute function.
- Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.
- Spare battery available ref. BAT/CR2032/3V.
- For UK sale only.
Items included
- 1 x 3V CR2032 lithium battery
- 1 x Small rebate clip
Specification
- Measuring range: 80 mm (3-1/8")
- Opening width: 60 mm (2-3/8")
- Resolution: 0.05 mm (0.002")
- Accuracy: +/- 0.1 mm (0.004")
- Repeatability: +/- 0.1 mm (0.004")
- Max. measuring speed: 1.5 m/s (60 in/s)
- Weight: 92g
- Voltage: 3 volt
- ABS mode (Absolute): Measuring single amounts from Zero
- INC mode (Relative): Measuring from last point
