Trend LOCK/JIG/B adjustable trade lock jig for router & cutter C172

X
Product Code: LOCK/JIG/B-PK1
Brand: Trend
In Stock
£139.58 Inc. VAT
£116.32 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

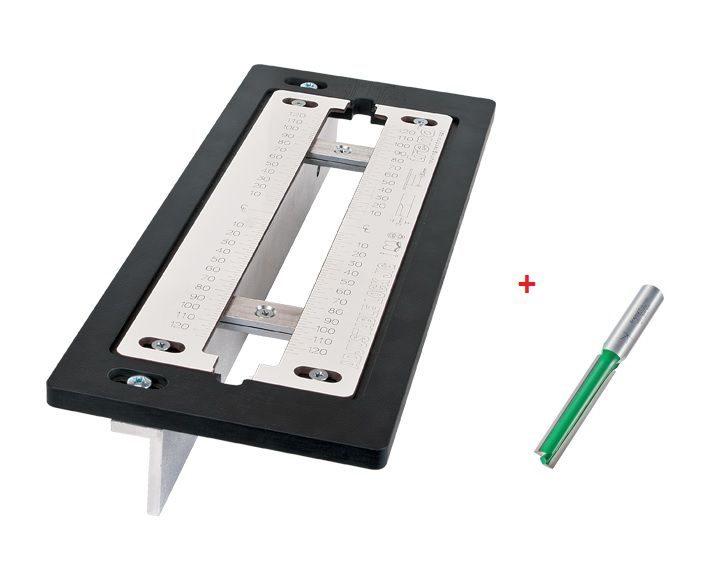

Trend Fully Adjustable Trade Lock Jig Package

LOCK/JIG/B & Trend C172x1/2TC Cutter



Trade jig with adjustable sliding inserts to allow faceplate and mortise recesses for popular size door locks to be routed with a plunge router.
Complete with Trend C172 x 1/2 TC lock jig router cutter 63mm long x 12mm diameter



Key Features

  • Fully adjustable for lock face plate length up to 250mm.
  • Quick and easy to set up using engraved lines for lock size and door sizes.
  • Fast, clean & accurate results on doors even in hardwood.
  • Engraved for 16mm and 19mm lock width and 22.5mm and 25.4mm face plate widths.
  • Measuring required for other lock widths.
  • Engraved on underside to allow set up for 35mm, 40mm, 44mm and 54mm door widths.
  • Deeper mortises can be achieved with a suitable size of auger bit.
  • Plastic laminate body with aluminium clamping bar, with clamping range 30mm to 80mm.

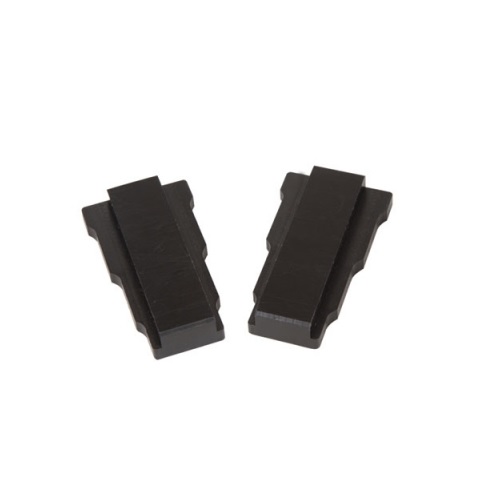

  • Includes a pair of setting blocks for specific lock widths and to aid door centring.
  • The jig requires a 1/2-inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 10mm spigot, 12mm diameter long reach cutter and two quick action clamps. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.
  • Includes C172x1/2TC lock jig cutter


Specification



Description

Metric & Imperial Conversion
Door thickness min. 30mm
Door thickness max. 80mm
Faceplate length min. (OL) 30mm
Faceplate length max. (OL) 250mm
Face plate width engraved size (D)
Width 22.5 mm
Width 25.4 mm (1 inch)
Mortise width engraved size (D)
Width 16 mm (5/8 inch)
Width 19 mm (3/4 inch)

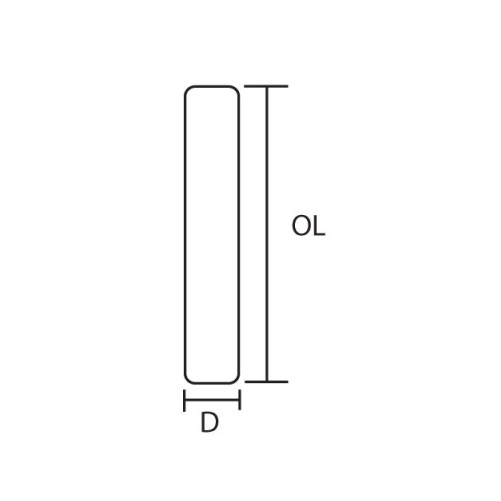

Faceplate Dimensions:

Tempate
For faceplate or mortise
Professional 12mm diameter router cutter 3/75X1/2TC
Trade Range 12mm diameter router cutter TR37X1/2TC
CraftPro 12mm diameter router cutter C172X1/2TC



115mm overall length. For up to 70mm deep mortise dependant on plunge of router and use of Unibase etc.



Faceplate Dimensions:

Tempate
For faceplate
Professional 12mm diameter router cutter 3/8LX1/4TC
Trade 12mm diameter router cutter TR12X1/4TC
CraftPro 12mm diameter router cutter C019AX1/4TC



70mm overall length. For mortise, deepening of mortise with auger bit required.



Optional Accessories: (not included)

Description

Product Reference
1. Guide bush 30mm diameter with 10mm spigot  GB30/A
2. Universal sub-base UNIBASE
3. Clamp (200mm jaw) FC/200



Find a fully in depth step-by-step guide to using an adjustable lock jig here in our Knowledge Centre.

Items Included
Click For Bigger Image
1 X Trend LOCK/JIG/B adjustable trade lock jig for router
Click For Bigger Image
1 X Trend C172X1/2TC CraftPro Lock Jig Router Cutter 12mm Dia x 63mm Cut x 1/2 Shank
