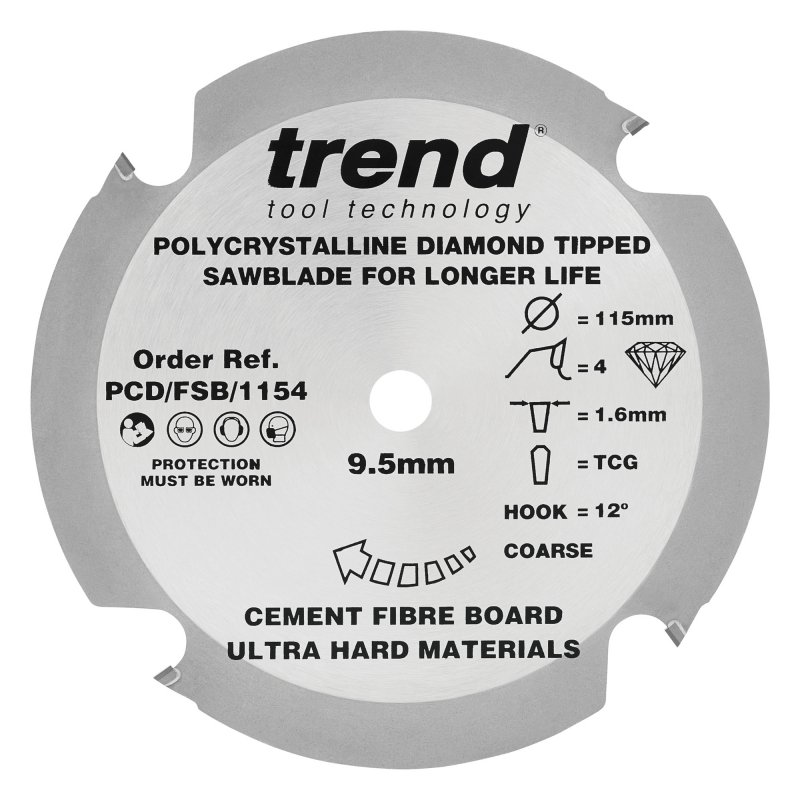

Trend PCD Fibreboard Saw Blade - 115mm dia x 1.6 kerf x 9.5 bore 4T

Trend PCD Fibreboard Saw Blade - 115mm dia x 1.6 kerf x 9.5 bore 4T

ref: PCD/FSB/1154

PCD sawblade for use on cement fibre board and tool-wearing material eg laminate, solid wood and ultra hard materials.

• Precision EDM ground high-quality industrial polycrystalline diamond cutting tips.
• Flat tooth with chamfer (Triple Chip Grind) tips for cleaner cut.
• Laser cut hardened body.
• Longer life, faster cleaner cuts with less dust.
• Up to 60 times longer life when compared to TCT blades.
• Ideal for Hardie-Board cladding, Aqua board, Minerit, Eternit and MDF.
• Portable, bench and mitre saw use.
• Suitable for Dewalt DCS571N-XJ

• Designed to cut composite decking, fibre cement board/cladding, carbon fibre-reinforced polymer, glass-reinforced plastic, compact laminate and MDF.

• D1: 4 1/2 inches
• D1: 115 mm
• Bore: 9.5 mm
• Kerf: 1.6 mm
• Plate thick: 1.2 mm
• No. of Teeth: 4
• Tooth form: TCG
• Hook: 12 degrees
• Quick Selector No: M6
• Cut Finish: Coarse
• Max rpm: 12000
• It is recommended that the blade should not project more than 1mm out of bottom of substrate.

Additional Information:

• Power Tool Blade and Bore Compatibility Chart
• Cross Cut Mitre Saw blades with part number are prefixed CSB/CCxxxxx
• General Saw blades with part number are prefixed CSB/xxxxx
• CSB = Craft Saw Blade
• CC = Cross Cut
• XXXXX = blade diameter & no. of teeth ie 25048 = 250mm dia 48 teeth
• Trend Saw Blade Safety Instructions
