Trend PH/JIG/BK 3-In-1 Pocket Hole Jig - Kit with Screws and Carry Case

X
Product Code: TRE/PH/JIG/BK
Brand: Trend
In Stock
£72.57 Inc. VAT
£60.47 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

Trend Drilling Accessories
3 in 1 POCKET HOLE JIG
Ref: PH/JIG/BK



Multi-function jig for drilling 9.5mm pocket hole joints suited to both new and repair work. Lightweight glass-fibre reinforced nylon construction with full-length, hardened drill guide bushes. Unique drill depth setting system for fast set-up on materials from 12.7 to 38mm. Adjustable centres are ideal for narrow and wide stock, and detachable drill guides are perfect for narrow repairs in confined spaces.



Key Features

  • Material Thickness Gauge allows fast checking of material thickness without the use of a tape measure.
  • Pre-set Depth Gauge adjusts the pocket position to suit the timber thickness.

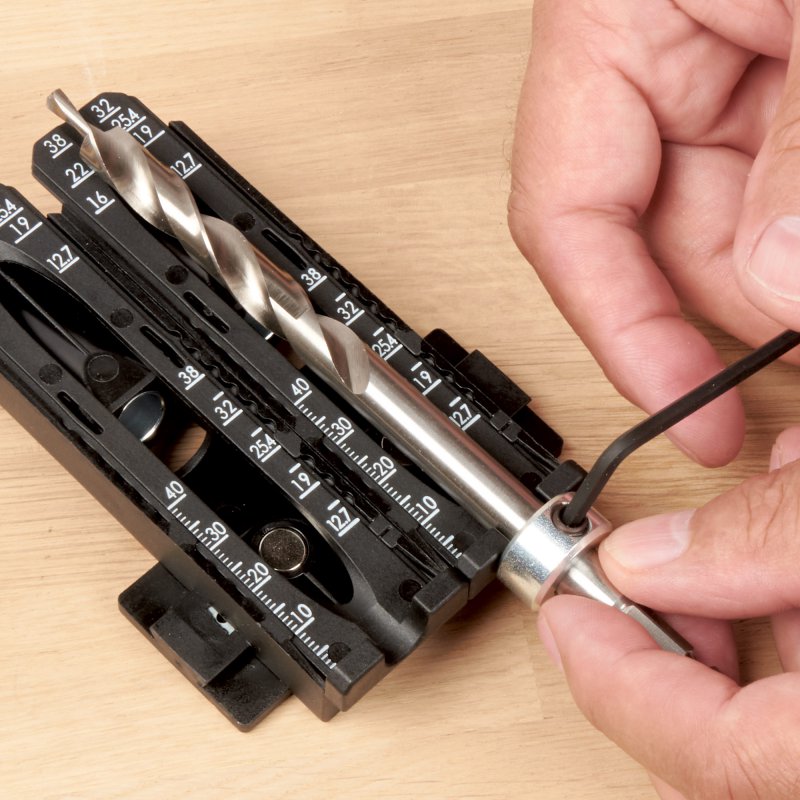

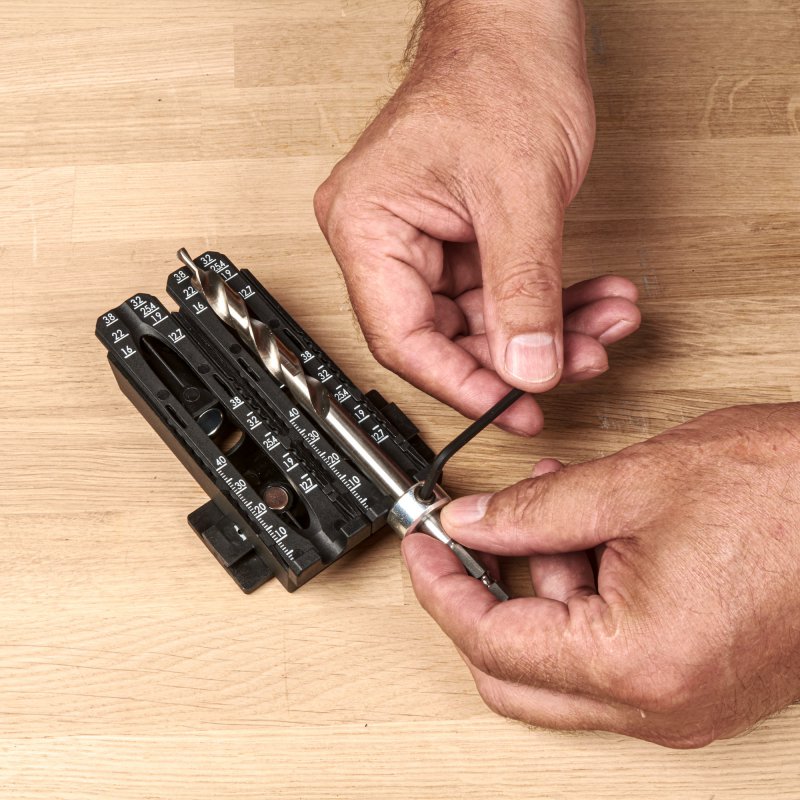

  • Drill Bit Setting Gauge is used to set the correct drilling position for materials between 12.7mm and 38mm thick.
  • Full-Length Hardened Drill Guide Bushes for long life and accurate drilling.

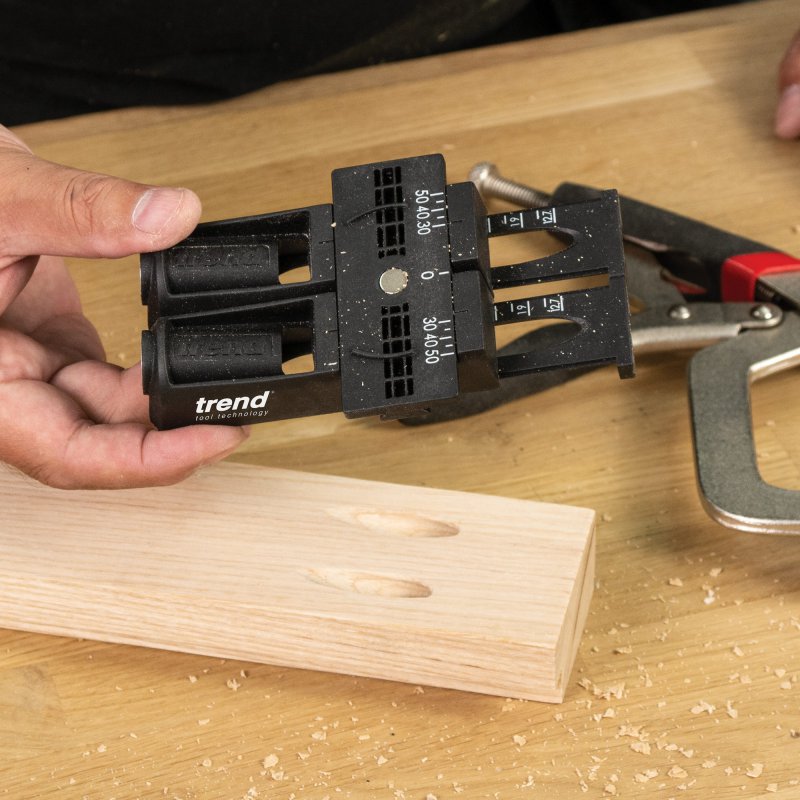

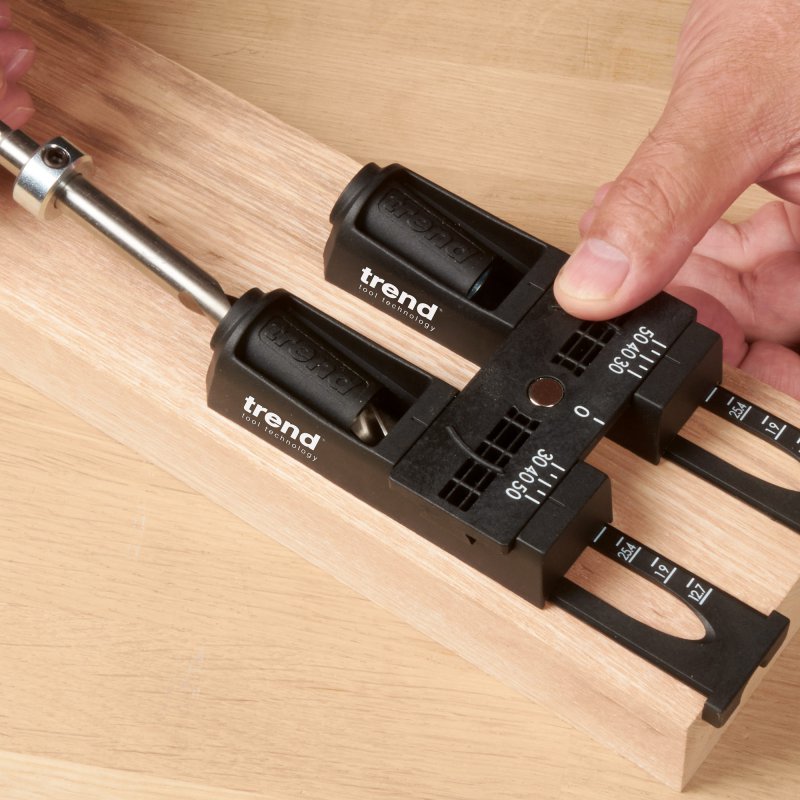

  • Repositionable Drilling Guides allow the hole centres to be altered between 28mm and 50mm ensuring stronger joints in wider material.
  • Woodchip Relief Holes help protect against clogging inside the drilling guides.
  • Flip-Over End Stop allows the jig to hook over for an external joint or butt up to an edge for an internal joint.

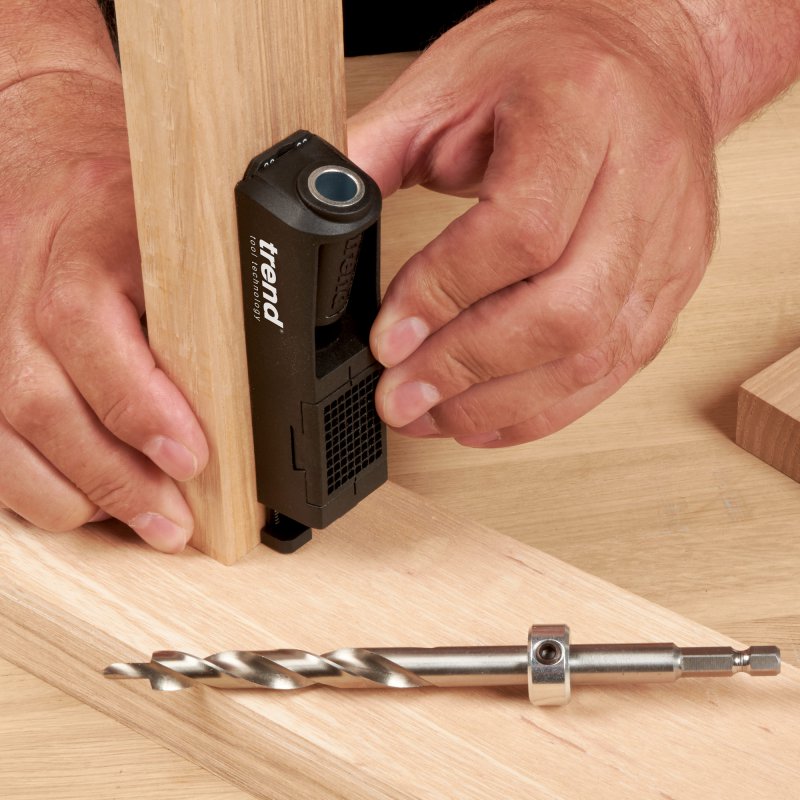

  • Pocket Hole Guides can be removed and used as single pocket hole jigs for narrow stock or repairs.

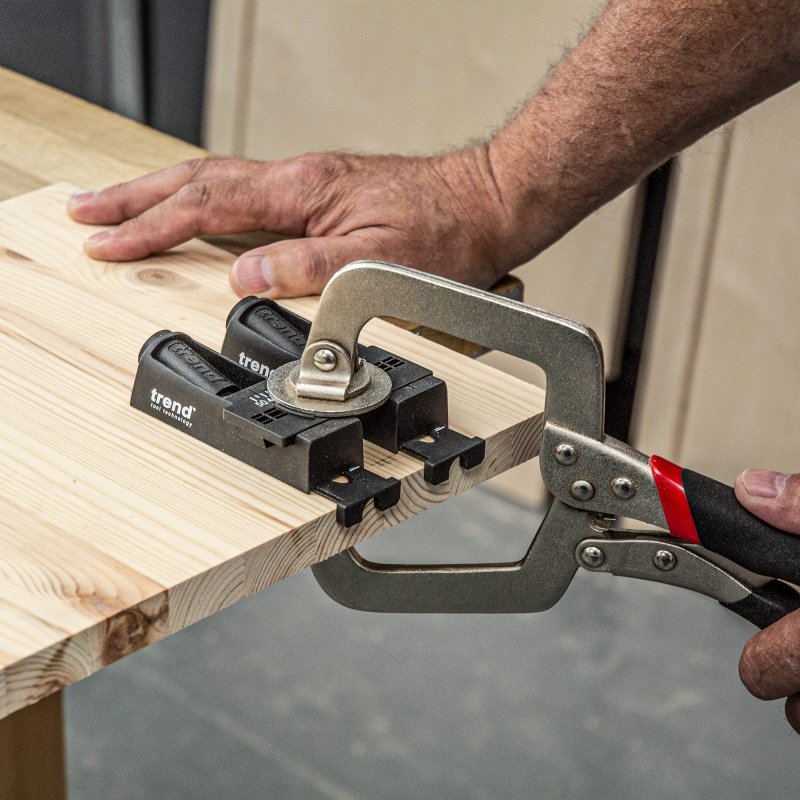

  • Magnetic Clamp Position allows a face clamp to attach to the jig for easier repositioning.
  • Centering Plate Index for setting the drill guides to pre-set positions.
  • Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.

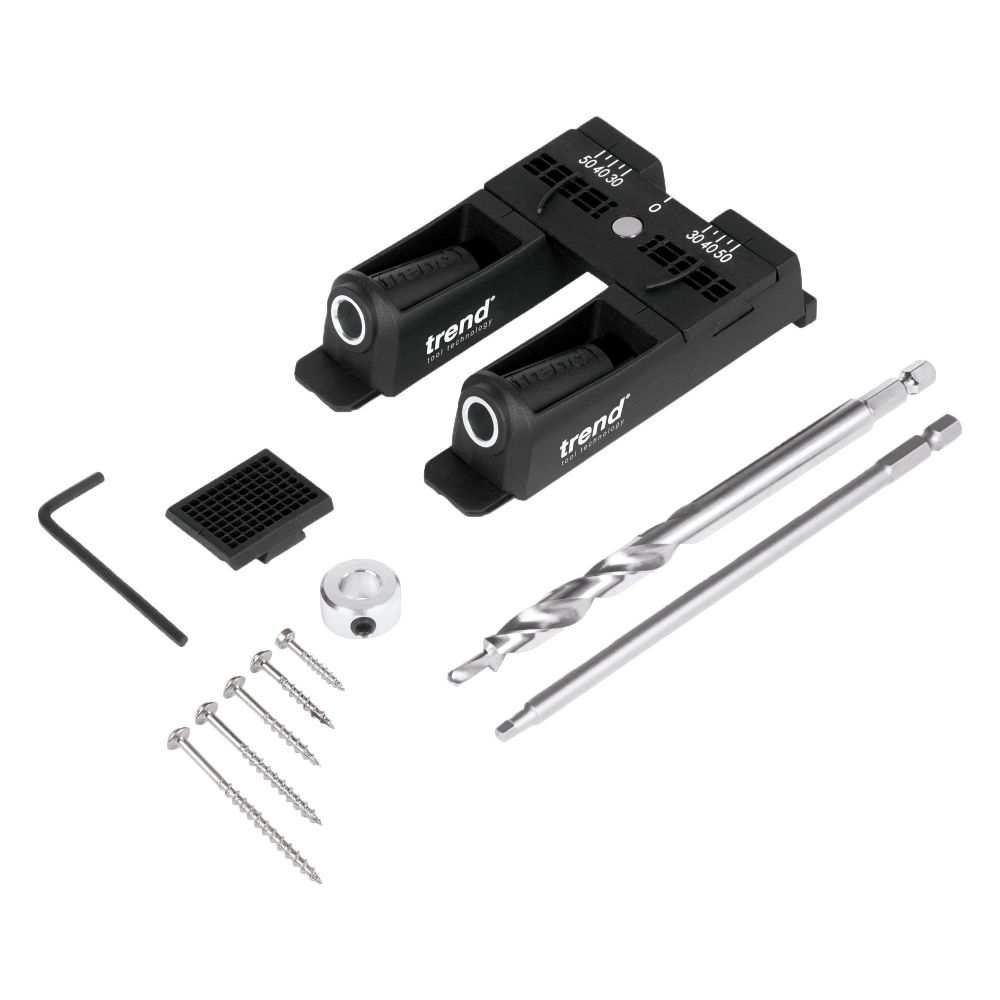

Items included

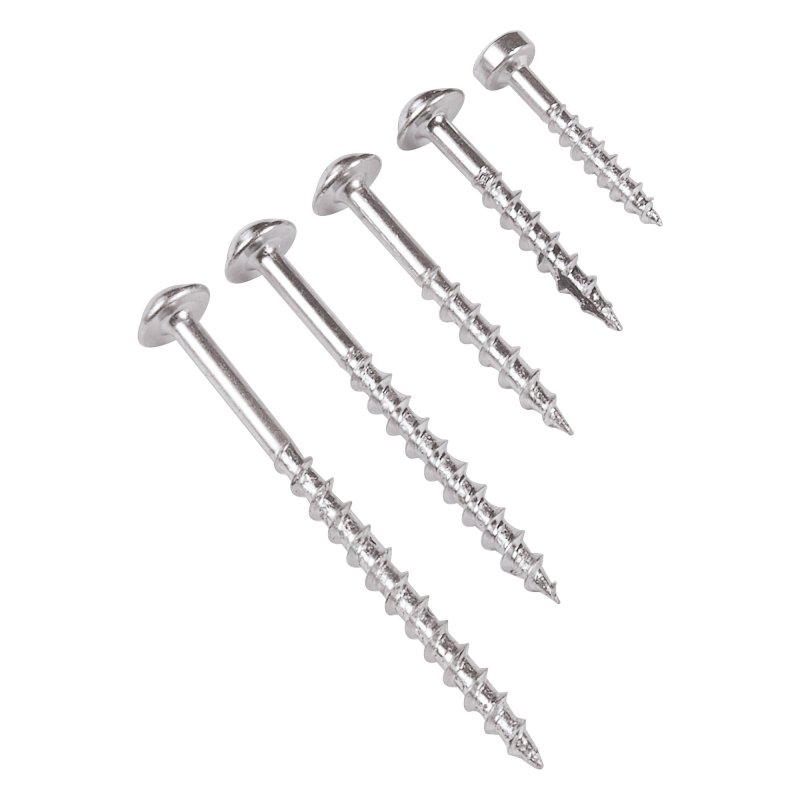

  • 50 x Assorted Screws
  • 1 x HSS drill bit with collar
  • 1 x 150mm Square drive bit
  • 1 x Adapter plate
  • 1 x Hex key 3mm A/F
  • 1 x Carry case



Strengths and benefits

  • Simple slide adjustment for 28mm – 50mm centres.
  • Built in depth gauge for fast drill depth setting.
  • The jig hooks over the end of the material for accurate positioning on new work.

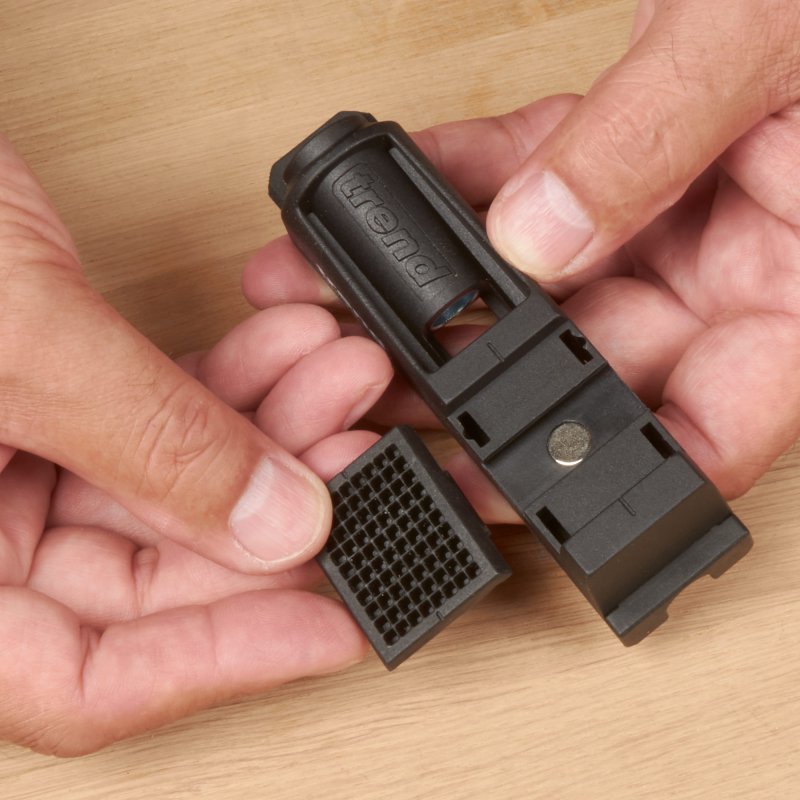

  • The small plate slides in for single hole applications to allow it to be clamped to the work.
  • Easy to locate in situ for repair work.
  • Fast, strong and quick construction for impressive projects.



Specification

  • Material thickness min:12.7 mm
  • Material thickness max: 38 mm
  • Hole pitch: 28 to 50 mm
  • Drilling angle 15 degrees
