Trend PH/JIG/C Twin Pocket Hole Jig - Kit with Screws

Trend Twin Pocket Hole Jig

ref: PH/JIG/C

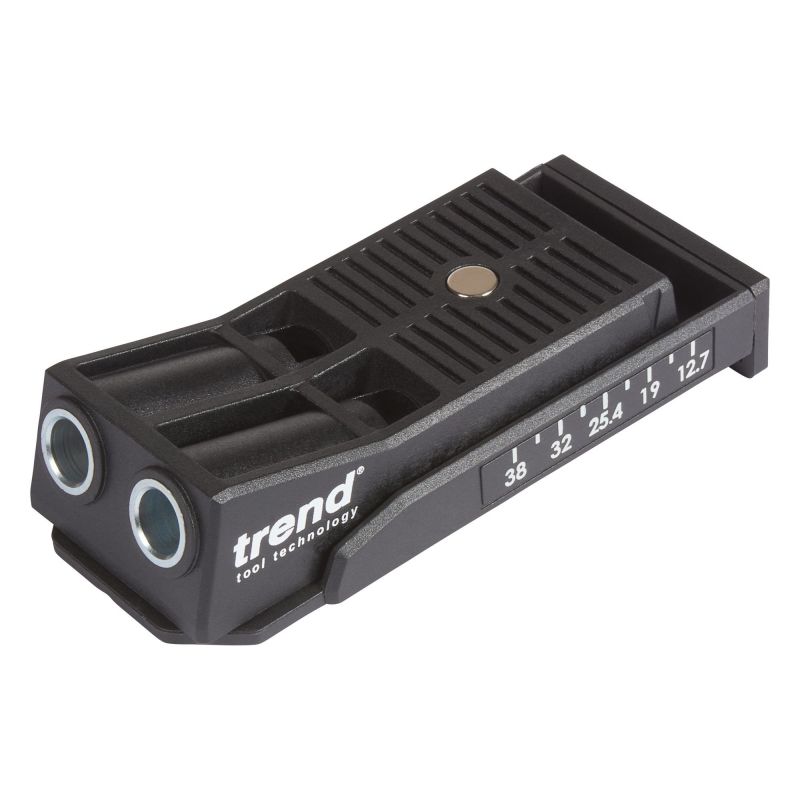

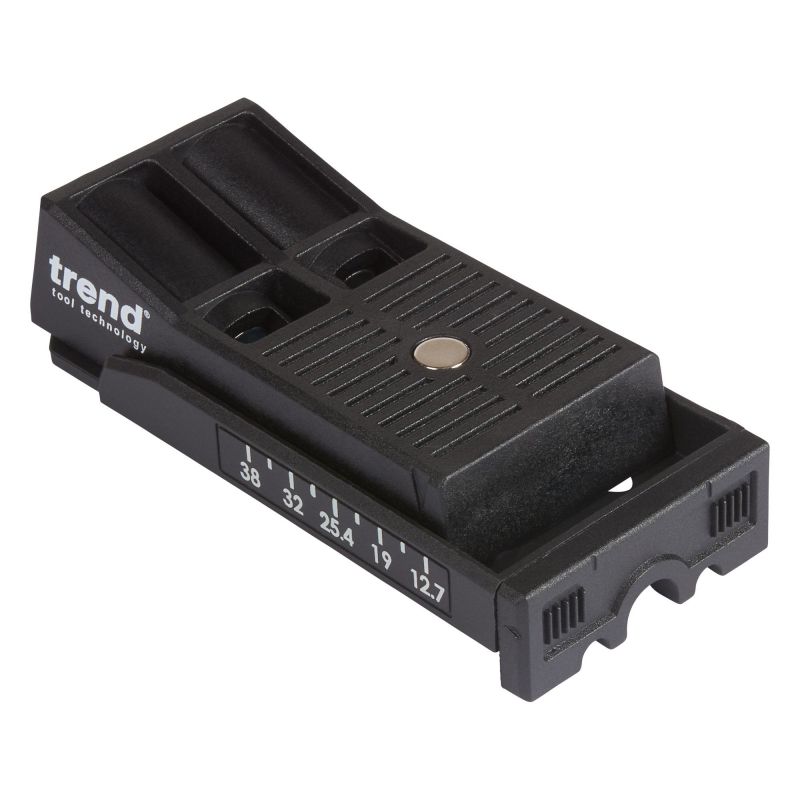

Strong glass-reinforced nylon body in a compact design. For drilling 9.5mm twin pocket hole joints in wood, such as panel fixing, corners and mitre joints. Features hardened steel drill guide and magnetic clamping point. Unique drill depth setting system for fast set-up on materials from 12.7 to 38mm. Perfect for small construction projects and strengthening applications.

• Material Thickness Gauge allows fast checking of material thickness without the use of a tape measure.
• Pre-set Depth Gauge adjusts the pocket position to suit the timber thickness.

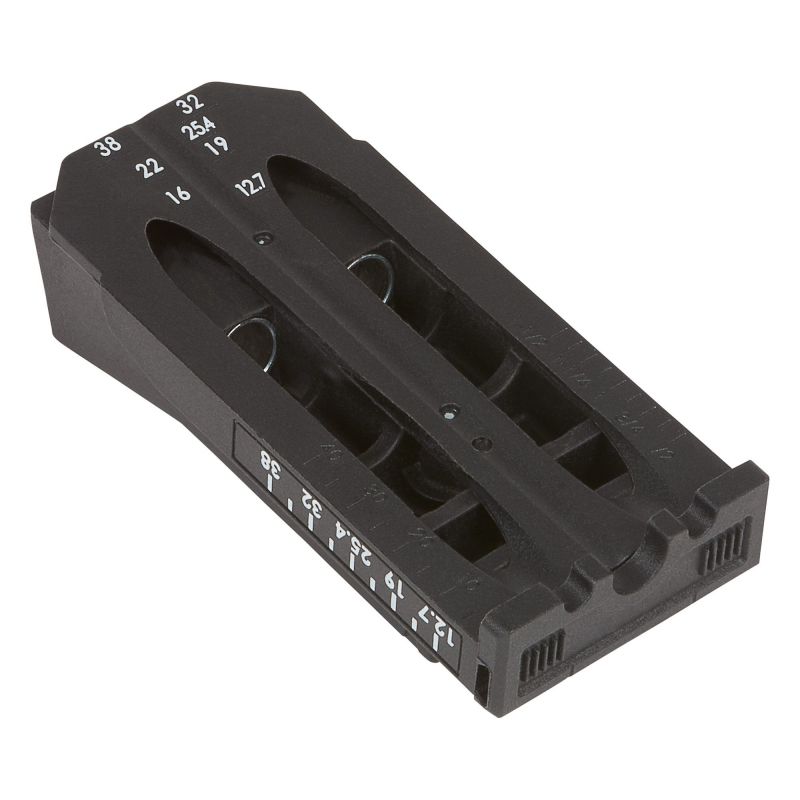

• Drill Bit Setting Gauge is used to set the correct drilling position for materials between 12.7mm and 38mm thick.
• Full-Length Hardened Drill Guide Bushes for long life and accurate drilling.
• Woodchip Relief Holes help protect against clogging inside the drilling guides.

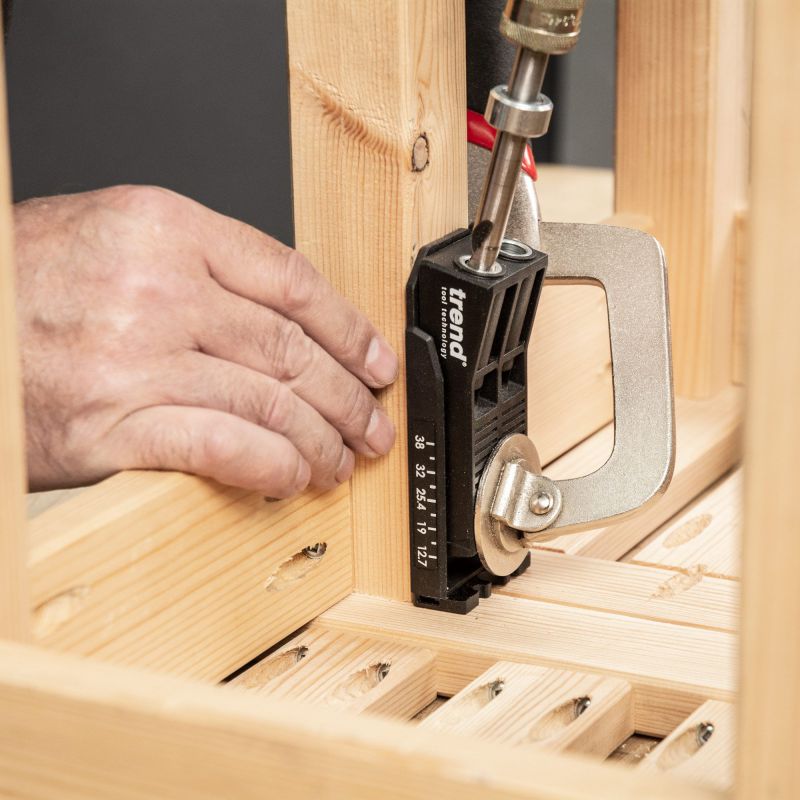

• Flip-Over End Stop allows the jig to hook over for an external joint or butt up to an edge for an internal joint.

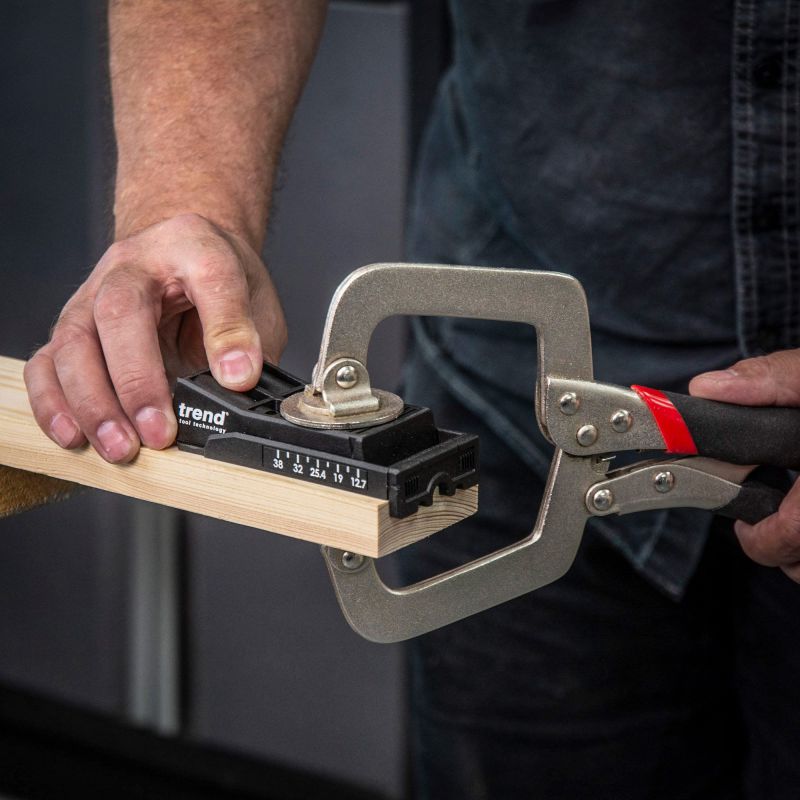

• Magnetic Clamp Position allows a face clamp to attach to the jig for easier repositioning.
• Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.

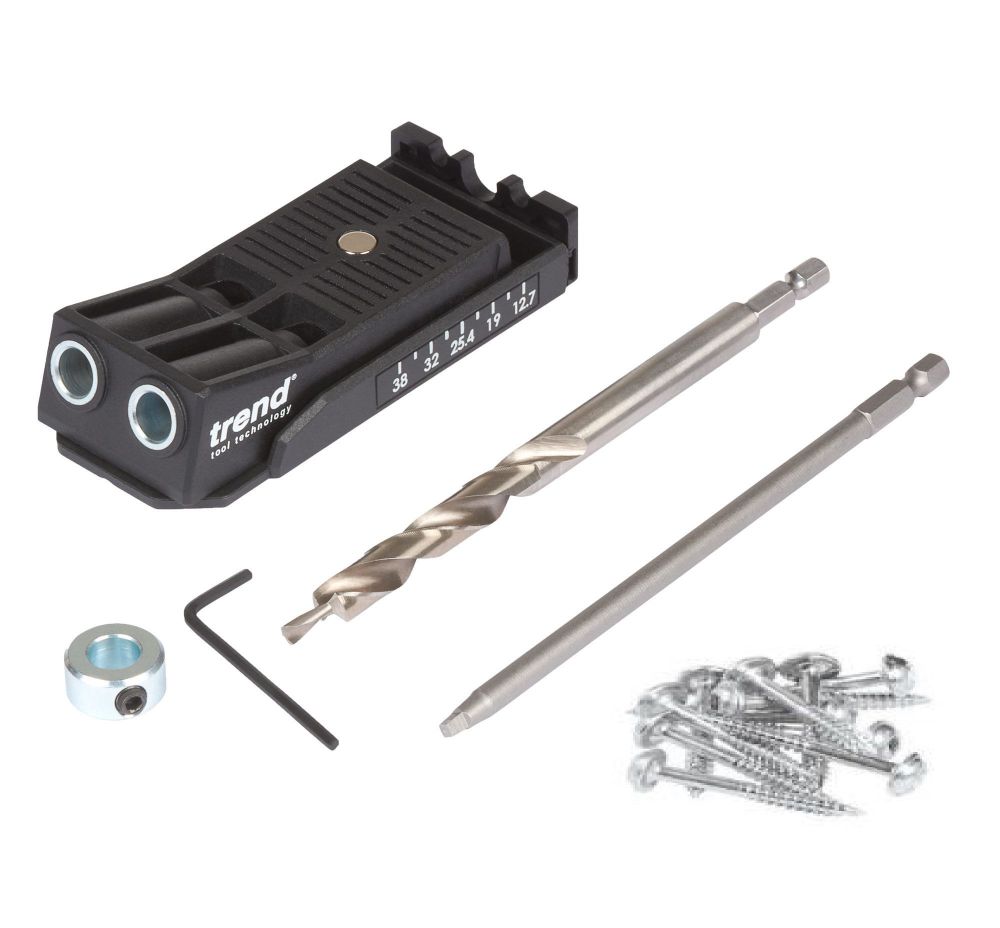

• 1 x HSS Drill Bit With Collar
• 1 x 150mm Square Drive Bit
• 1 x Hex Key 3mm A/F
• 10 x Assorted Screws: No.7 x 30mm (1-1/4”) coarse, No.8 x 50mm (2”) coarse.

• Twin Pockets can be used for drilling two holes for increased strength or single holes for narrower components.
• Full Length Hardened Drill Guides for precision pockets and long life span.
• Wide Material Dimensions Range covers stock from 12.7mm to 38mm.
• Unlimited Material Width can be easily relocated across any material width for infinite pocket hole positioning.
• Multi-Function ideal for making repairs to existing work, constructing smaller projects and heavy duty builds.
• Adaptable for multiple jointing styles and applications.
• Compact and Portable fits easily into a pocket or tool pouch, always readily to hand.
• Fast Setup easy adjustments for different component sizes.

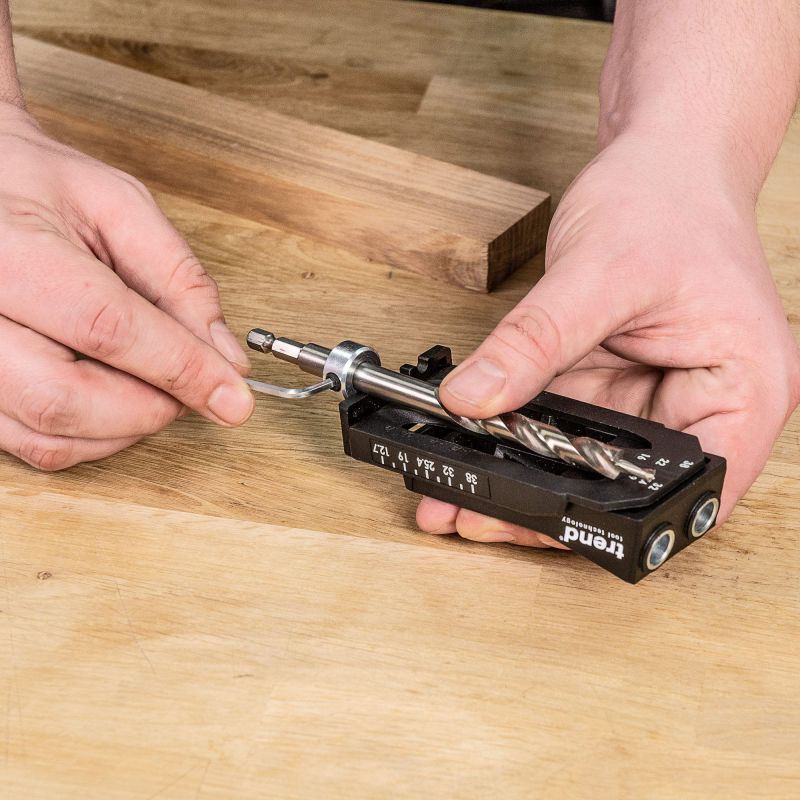

• Quick Set Drill and Timber Setting sliding Set Up Gauge sets the correct drilling depth and jig position for different material thicknesses.
• Trend Snappy Chuck Compatible supplied with high quality HSS stepped drill and No2 square Drive bit with quick change hex shanks.
• Ready To Go supplied complete with HSS Stepped drill, 150mm Square Drive driver bit and selection of screws.
• Magnetic Clamp plate aids location of the jig when clamping.
• Multi Material compatibility Ideal for jointing in hard and softwoods and sheet material.

• Material thickness min.=12.7 mm
• Material thickness max.=38 mm
• Hole centres=21.5 mm
• Drilling angle=15 degrees
