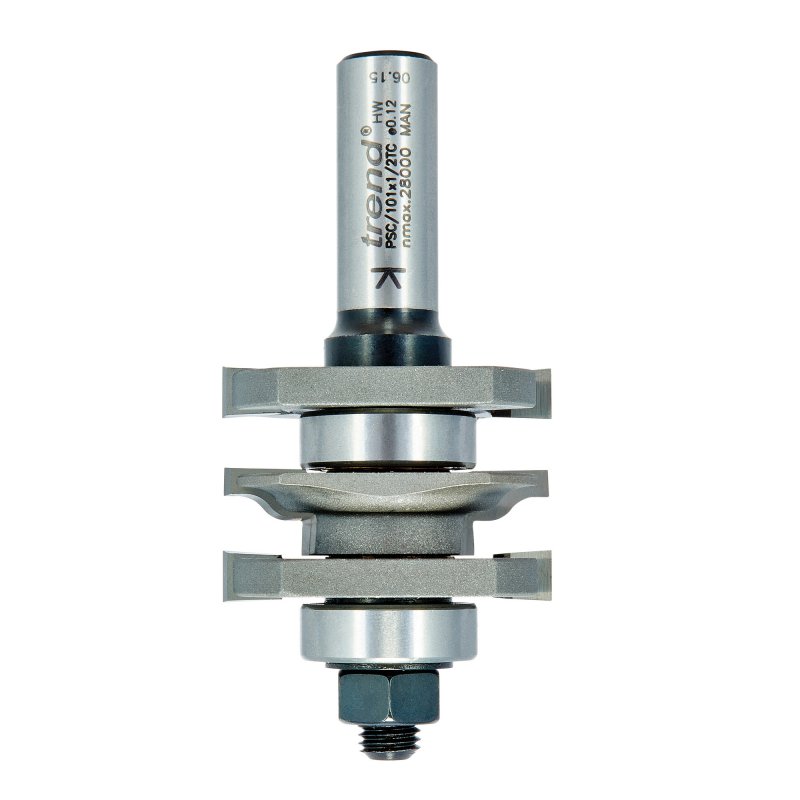

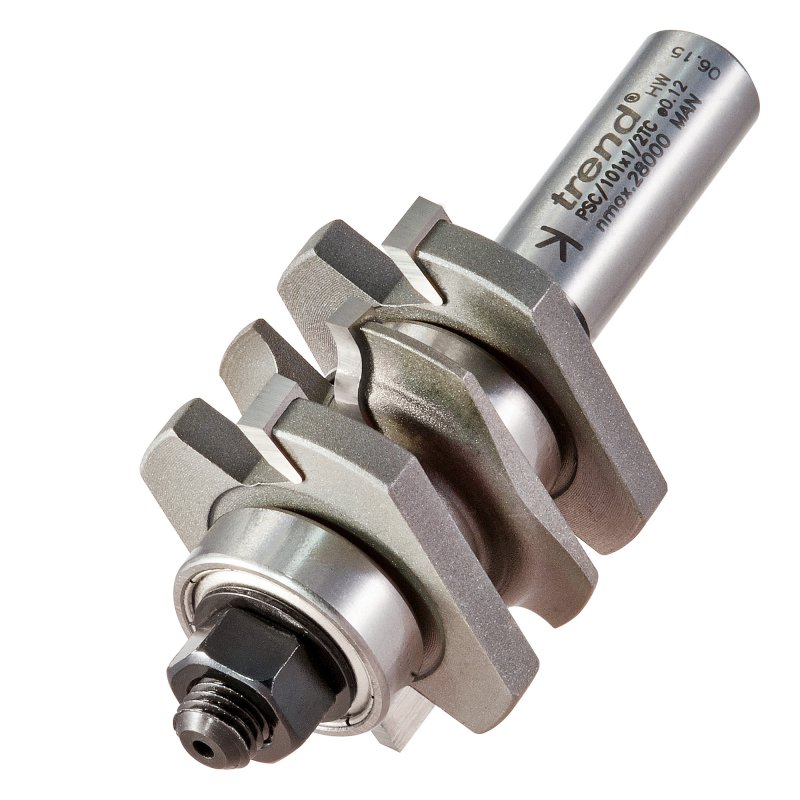

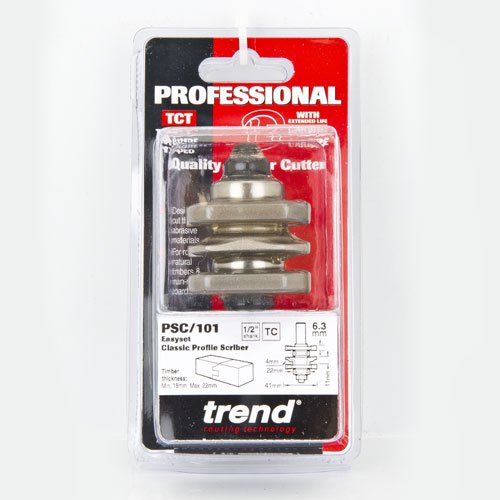

Trend PSC/101X1/2TC Pro Classic Easyset Profile Scribe Cutter Set 4mm radius x 1/2 shank

Trend Professional Profile Scribing Cutters
Easyset Bearing Guided Classic Set - 4.0 Radius
Ref: PSC/101X1/2TC

• These tools produce the same type of joint & use the same components as the combination PSC sets
• Both parts of the joint are cut by only changing the cutter height
• No reassembly of parts is required, to convert the tool from scribing mode to profiling mode and vise-versa
• Router table use only

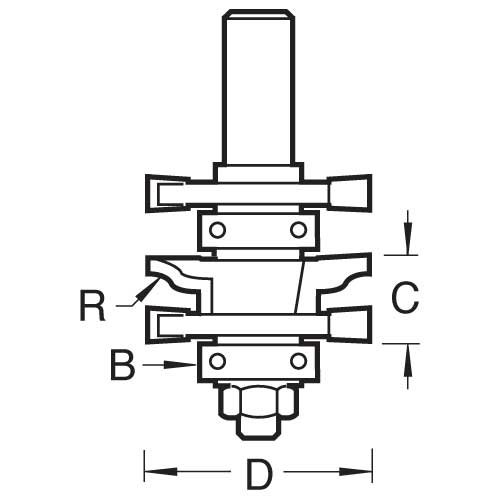

• D: 41 mm (metric diameter)
• C: 11 mm (metric cut length)
• C2: 6.3 mm (metric cut length)
• B: 22 mm (metric bearing diameter)
• R: 4 mm (metric radius)
• OL: 87 mm (overall length)
• Shank Diameter: 1/2 inch
• Timber thickness min: 18 mm
• Timber thickness max: 22 mm

Trend PSC / 101, 103, 105 Easyset Scriber Instructions
