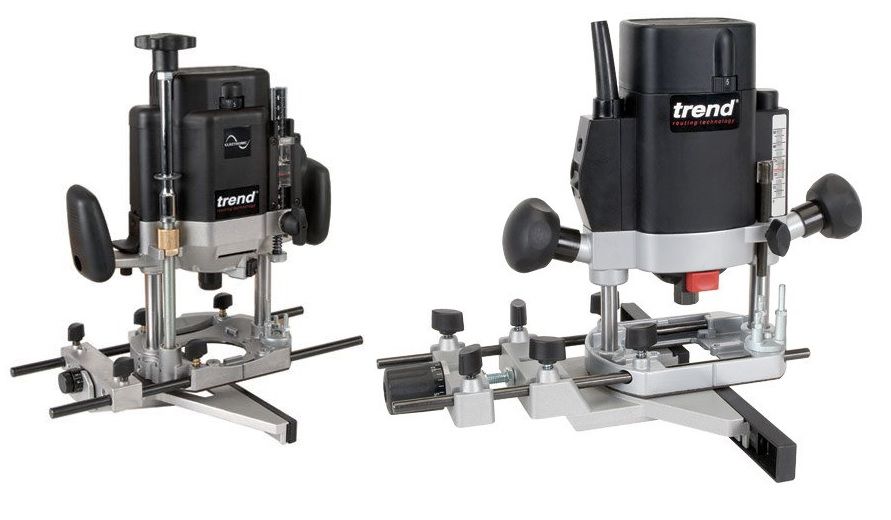

Trend Router Twin Pack - T11EK 1/2" and T5EB 1/4" Variable Speed Plunge Routers 240v

Trend Router Twin Pack

T11EK 1/2" and T5EB MK1 1/4" Variable Speed Plunge Routers 240v

Trend T11EK Variable Speed Router - Kitchen Worktop Router - T11 EK

TREND T11EK ROUTER 1/2" X  2000W VARIABLE SPEED PLUNGE ROUTER 230V (INCLUDES KITBOX)

• Trend 1/2" Collet Variable Speed Workshop Plunge Router fitted with a 2000w motor 230v machine, with built in Quick Raiser fine adjuster and electronic full wave variable control of the spindle speed under load, for a fine finish on all types of material with soft start eliminating sudden movement of machine on start up.
• The two column precision base with large phosphor bronze bushes allows for plunging accuracy with the spindle lock and hex collet nut resulting in easy cutter changes with the 22mm spanner supplied.
• An adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work and the precision machined one-piece multi-slit collet for fail-safe grip of cutter shank the 3-position revolving depth stop gives fast adjustable settings with an adjustable inner plate for guide bush accuracy.
• Comes complete with a router fine height adjuster for above and below height adjustment, one revolution of the handle equals 1.5mm supplied with three quick release recesses in base to fit tables in conjunction with an optional Quick Release Kit with fittings for optional Clamp Guide System Kit and an extra large base aperture for large cutters.

• Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
• Soft start eliminates sudden movement of routing machine on start up.
• Two column precision base with large phosphor bronze bushes for plunging accuracy.
• Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied.
• Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.
• Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank.
• 3-position revolving depth stop for fast adjustable settings. Adjustable inner plate for guide bush accuracy.
• Router fine height adjuster for above and below height adjustment. One revolution of the handle equals 1.5mm.
• Three quick release recesses in base to fit tables in conjunction with optional Quick Release Kit.
• Fittings for optional Clamp Guide System Kit.
• Extra large base aperture for large cutters. Quick release dust spout.
• Three year extended warranty with online registration (UK and Eire only).
• For UK sale only

• Rating:  Professional / Trade
• Plunge stroke: 0-80 mm
• Power input: 2000 watt
• Power ampage: 9.6 amp
• Standard collet dia.: 1/2"
• No load speeds: 8-20000 rpm
• Dust spout size ID: 35 mm
• Guide bush dia. supplied: 30 mm
• Rod diameter: 10 mm
• Rod length: 360mm
• Rod centres: 110 mm
• Cutter dia. max. plunge/table: 70/86 mm
• Other collet dia.: 6mm, 1/4", 8mm, 3/8", 10mm & 12mm
• Weight: 6.2kg
• Voltage: 230 volt (for 115 volts see T11ELK)
• Sound pressure Lpa: 6' 5" (1956 mm)
• Acoustic pressure Lwa: 93.0 dB(A)1
• Thickness min.: 102.0dB(A)2
• Hand arm vibration: <2.5 m/s2
• Quick raiser socket A/F: 12mm

• 1 x 1/2" Collet - CLT/T10/127
• 1 X Fine Height Adjuster - QP - T11/128
• 1 X Inner Plate - WP-T9/075
• 1 X Line up Pin - WP-T9/090
• 1 X 35mm Clip-in Dust Spout - WP-T11/107
• 1 X Side-fence with Micro Adjuster - WP-T10/087
• 1 X Storage Case - CASE/T10

Optional  Accessories:

• Quick release kit
  Comprising: 3 sets of cams, bolts & fixings
  Product Ref:T11/JT/KIT

• Varijig clamp guide system kits
  Comprising: alloy bracket fixing & plastic slider. Allows
  Product Ref: T11 to join to Varijig Clamp Guides. T11/VJS/CGKIT

• Extra side-fence
  Product Ref: WP-T11/087

• Direct fit large guide bushes
  50mm - Product Ref: GB500
  60mm - Product Ref: GB600
  70mm - Product Ref: GB700

• Plug 115v 32A
  32A BS4343 115 volt plug
  Product Ref: PLUG/110V/32A

Trend 1000W 1/4" Variable Speed Router 240V
Ref: T5EB

T5 Mark 1

• Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
• Soft-start feature eliminates sudden movement of machine on start up.
• Spindle lock & hex collet nut allows easy cutter changes.
• Precision machined one piece multi-slit collet with combined nut.
• Compact design & low weight make it easy to use especially for intricate work.
• Adjustable twin rod side-fence for guiding along a straight edge.
• New features include: increased power, soft grip handles, low profile dust spout and ergonomic spindle lock.
• Three year extended warranty with online registration (UK and Eire only).
• For UK sale only.

• 1 x 1/4" Collet
• 1 x 35mm Clip-in Dust Spout
• 1 x 20mm Guide Bush
• 1 x Side-fence with Micro Adjuster
• 1 x Beam Trammel Attachment

• Rating: Professional/Trade
• Voltage: 240 volt
• Plunge stroke: 0-50 mm
• Power input: 1000 watt
• Power ampage: 4.6 amp
• Standard model collet diameter: 1/4"
• Cutter diameter max: 40 mm
• No load speeds: 9-27000 rpm
• Dust spout size ID: 35 mm
• Guide bush diameter: 20 mm
• Rod diameter: 8 mm
• Rod length: 300 mm
• Rod centres: 84 mm
• Weight: 3.3 kg
• Sound pressure Lpa: 81.0 dB(A)1
• Acoustic pressure Lwa: 94.01 dB(A)2
• Hand arm vibration: <2.5 m/s2
