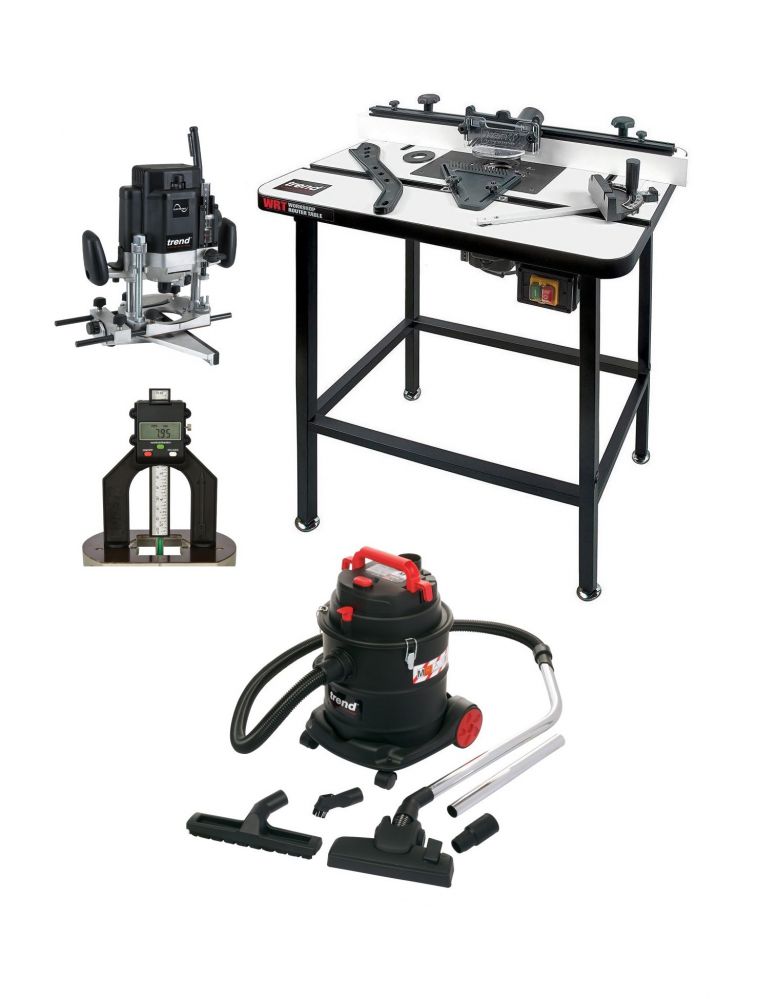

Trend T10EK - 2000W 1/2" Router with WRT Table, T32 Dust Extractor and Depth Gauge

X
Product Code: T10EK-PK3
Brand: Trend
In Stock
£891.62 Inc. VAT
£743.02 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

Trend T10EK Package

2000W 1/2" Router with WRT Table, T32 Dust Extractor and Depth Gauge (UK sale only)



Package includes:

  • 1 x Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox
  • 1 x TREND WRT WORKSHOP ROUTER TABLE 240V
  • 1 x TREND T32 DUST EXTRACTOR 230V 800W - M Class Extractor
  • 1 x TREND GAUGE/D60 - Digital Router Depth Gauge 60mm Jaw

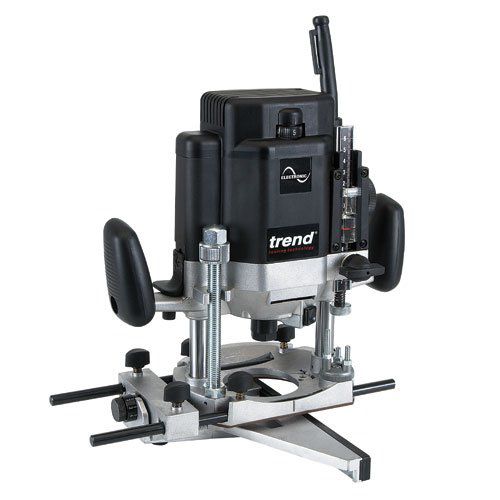

Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox



Heavy Duty Trade Router Designed for Tradespeople in the Workshop or On-Site. The Essential Router for Worktop Fitting, Lock and Stair Jigs and General Workshop use.



Key Features

  • Powerful 2000 Watt Motor for heavy duty work
  • Electronic variable speed control with soft start for a better finish
  • Micro adjustable side fence: Improves accuracy with micro adjustments for straight edge work
  • 80mm plunge depth: Ideal for worktop fitting and lock body mortising
  • Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
  • Soft start eliminates sudden movement of machine on start up.
  • Two column precision base with large phosphor bronze bushes for plunging accuracy.
  • Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied.
  • Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.
  • Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank.
  • 3-position revolving depth stop for fast adjustable settings.
  • Adjustable inner plate for guide bush accuracy.
  • Large base aperture for large cutters with quick release dust spout.
  • Three year extended warranty with online registration (UK and Eire only).



Items included

  • 1 x 1/2" Collet - CLT/T10/127
  • 1 X Inner Plate - WP-T9/075
  • 1 x 30mm Guide Bush
  • 1 X Line up Pin - WP-T9/090
  • 1 X 35mm Clip-in Dust Spout - WP-T11/107
  • 1 X Side-fence with Micro Adjuster - WP-T10/087
  • 1 X Storage Case - CASE/T10



Specification

  • Rating: Professional/Trade
  • Voltage: 230 volt
  • Plunge stroke: 0-80 mm
  • Power input: 2000 watt
  • Power ampage: 9.6 amp
  • Standard collet dia: 1/2 inch
  • No load speeds: 8-20000rpm
  • Dust spout size ID: 35 mm
  • Guide bush dia. supplied: 30 mm
  • Cutter dia. max: 50 mm



Trend T10 / T11 Router Owners Manual




Trend Workshop Router Table 240V - For UK & Eire sale only - (Ref: WRT)



Key Features

  • Floor standing Workshop Router Table.
  • It is packed with the necessary features to maximise the versatility of all popular portable routers.
  • Large laminated MDF table.
  • Quick release aluminium extrusion back fence with sliding MDF cheeks.
  • Removable 6.35mm thick aluminium insert plate with 98mm diameter aperture, pre drilled for Trend TBC routers and T11 routers.
  • Quick Raiser and Quick Release facility for the Trend T11 router.
  • High back fence with fully adjustable guard assembly.
  • Fully adjustable side finger pressure.
  • Front and side adjustable feather pressure guards.
  • Steel leg frame assembly with adjustable feet.
  • Two insert rings 31.8mm and 67.5mm diameter to reduce table aperture.
  • Lead on pin for bearing guided curved work.
  • Edge planing facility on back fence of 1.4mm and 2.4mm.
  • Cable management clips.
  • No volt release switch.
  • Mitre fence with zeroing and spelch block facility.
  • Router not included.
  • For UK sale only.



Items included

  • 2 x Insert rings
  • 1 x Leg stand
  • 1 x No-volt release switch
  • 1 x Side pressure
  • 1 x Top pressure
  • 1 x Mitre fence
  • 1 x Lead-on pin
  • 1 x Safety guard
  • 1 x Pushstick



Specification

  • Rating: Professional/Craftsman
  • Table top size: 804x604x35mm
  • Bench height: 890mm
  • Router cutter aperture: 98mm
  • Max cutter dia: 86mm
  • Max cutter height: 55mm
  • Max component length*: 800mm
    *Workpiece supports required for longer lengths.
  • Insert ring sizes: 31.8mm, 67.5mm
  • Backfence height: 68mm
  • Dust spout aperture: 57mm
  • Edge planing up to: 1.4 & 2.4mm
  • Weight: 27.5kg
  • Voltage: 240v
  • Max. material thickness with pressures: 60 mm
  • Max. material width with pressures: 130 mm (cutter centre)
  • Not intended for continuous production or production line use.



Trend WRT Workshop Router Table Owners Manual




Trend Digital Depth Gauge - for setting and checking depths for routing and sawing applications - (Ref: GAUGE/D60)



Key Features
  • Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
  • For hand routers, router tables and saw benches.
  • LCD readout for mm, imperial and fractions with auto shut off 5 mins.
  • Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).
  • Self standing with magnetic feet and flat back.
  • Injection plastic moulding with plastic rule.
  • 60mm wide aperture.
  • Read-out has relative co-ordinate and absolute function.
  • Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.
  • Spare battery available ref. BAT/CR2032/3V.
  • For UK sale only.



Items included

  • 1 x 3V CR2032 lithium battery
  • 1 x Small rebate clip



Specification

  • Measuring range: 80 mm (3-1/8")
  • Opening width: 60 mm (2-3/8")
  • Resolution: 0.05 mm (0.002")
  • Accuracy: +/- 0.1 mm (0.004")
  • Repeatability: +/- 0.1 mm (0.004")
  • Max. measuring speed: 1.5 m/s (60 in/s)
  • Weight: 92g
  • Voltage: 3 volt
  • ABS mode (Absolute): Measuring single amounts from Zero
  • INC mode (Relative): Measuring from last point

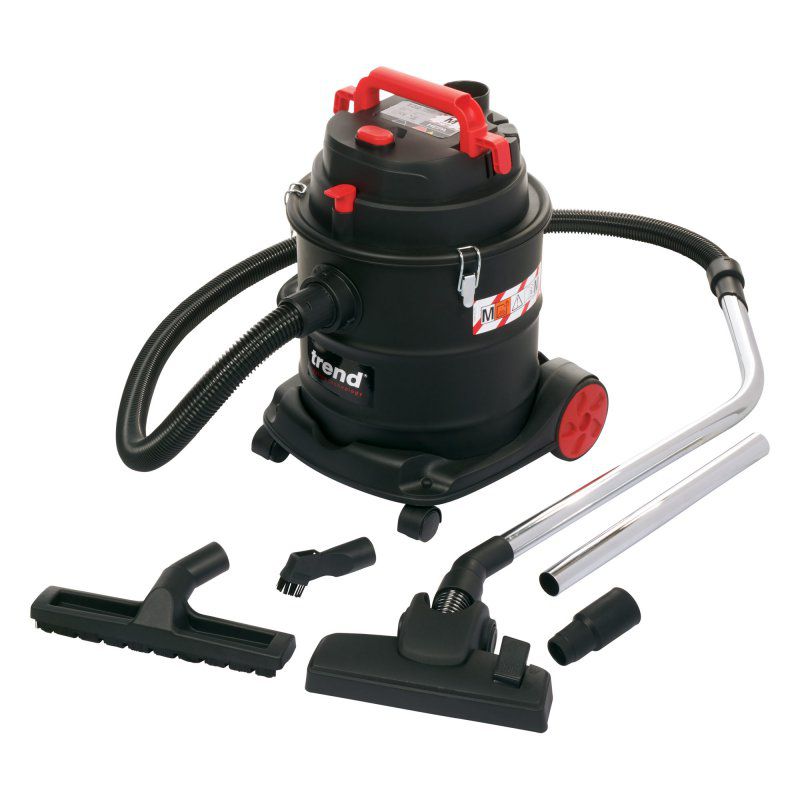

Trend T32 - Vacuum Cleaner 800W 230V - (UK sale only) - (Ref: T32)



Key Features:

  • A Trade level Class M dust extractor ideal for use on site.
  • Dust class category M rated to EN60335-2-69, for dust with workplace limit values > 0.1 mg/m3.
  • 20 litre capacity steel tank.
  • Integrated shaker button for filter cleaning system.
  • HEPA H13 Fire-retardant filter system.
  • Low flow indicator.
  • Long 5 metre power cable.
  • 3 metre hose and on board storage of adaptor and crevice tool
  • Professional Certified: Meets standard 2006/42/EC.
  • Container outlet dust cap.



Items inclulded:

  • 1 x HEPA H13 Cartridge filter
  • 1 x Micro filter bag
  • 1 x 3 metre hose
  • 1 x Crevice tool/brush
  • 1 x Upholstery tool
  • 1 x Dust spout adaptor
  • 1 x High efficiency floor brush
  • 1 x Hard floor brush
  • 2 x Metal tube
  • 1 x Curved metal tube


Specification

  • Rating: Trade
  • Power input: 800 watt
  • Voltage: 230 volt
  • Dust category*: M
  • Tank capacity: 20 L
  • Bag capacity: 15 L
  • Flow rate: 20 L/s
  • Sound pressure Lpa: 70 dB(A)
  • Max suction: 146 mbar
  • Airflow: 20 l/s
  • Negative pressure: 14.6 Kpa
  • Cable: 5M
  • Hose: 3 M x 39mm OD
  • * Vacuum cleaners of dust category to EN60335-2-69 for dry vacuuming of materials of exposure limit volume > 0.1 mg/m3 that are hazardous to ones health.
  • End of life: See below for Environmental Policy link
  • Vibration: <2.5
  • Weight: 6.8 kg
  • Acoustic pressure Lwa: 80 dB(A)
  • Dimensions: 492 x 375 mm



Trend T32 Dust Extractor Owners Manual



Take a look at our Knowledge Centre for beginners guides and helpful advice on everything you need to know about routing.

Items Included
Click For Bigger Image
1 X Trend GAUGE/D60 - Digital Router Depth Gauge 60mm Jaw
Click For Bigger Image
1 X TREND WRT WORKSHOP ROUTER TABLE 240V
Click For Bigger Image
1 X Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox
Click For Bigger Image
1 X TREND T32 DUST EXTRACTOR 230V 800W - M Class Extractor
