Heavy Duty Trade Router Designed for use in a Router Table or for use by Tradespeople in the Workshop or On-Site. The Essential Router for Worktop Fitting, Lock and Stair Jigs and General Workshop use.
Strengths and benefits

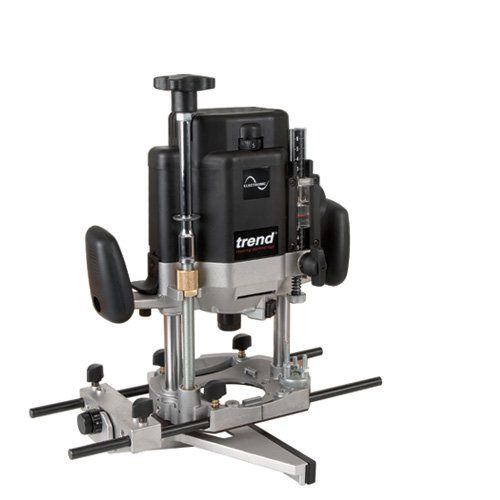

Trend 1/2" Collet Variable Speed Workshop Plunge Router fitted with a 2000w motor 230v machine, with built in Quick Raiser fine adjuster and electronic full wave variable control of the spindle speed under load, for a fine finish on all types of material with soft start eliminating sudden movement of machine on start up.
The two column precision base with large phosphor bronze bushes allows for plunging accuracy with the spindle lock and hex collet nut resulting in easy cutter changes with the 22mm spanner supplied.
An adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work and the precision machined one-piece multi-slit collet for fail-safe grip of cutter shank the 3-position revolving depth stop gives fast adjustable settings with an adjustable inner plate for guide bush accuracy.
Comes complete with a router fine height adjuster for above and below height adjustment, one revolution of the handle equals 1.5mm supplied with three quick release recesses in base to fit tables in conjunction with an optional Quick Release Kit with fittings for optional Clamp Guide System Kit and an extra large base aperture for large cutters.
Key Features
Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
Soft start eliminates sudden movement of routing machine on start up.
Two column precision base with large phosphor bronze bushes for plunging accuracy.
Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied.
Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.
Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank.
3-position revolving depth stop for fast adjustable settings. Adjustable inner plate for guide bush accuracy.
Router fine height adjuster for above and below height adjustment. One revolution of the handle equals 1.5mm.
Three quick release recesses in base to fit tables in conjunction with optional Quick Release Kit.
Fittings for optional Clamp Guide System Kit.
Extra large base aperture for large cutters. Quick release dust spout.
Three year extended warranty with online registration (UK and Eire only).
For UK sale only
Items included
1 x 1/2" Collet - CLT/T10/127
1 X Fine Height Adjuster - QP - T11/128
1 X Inner Plate - WP-T9/075
1 X Line up Pin - WP-T9/090
1 X 35mm Clip-in Dust Spout - WP-T11/107
1 X Side-fence with Micro Adjuster - WP-T10/087

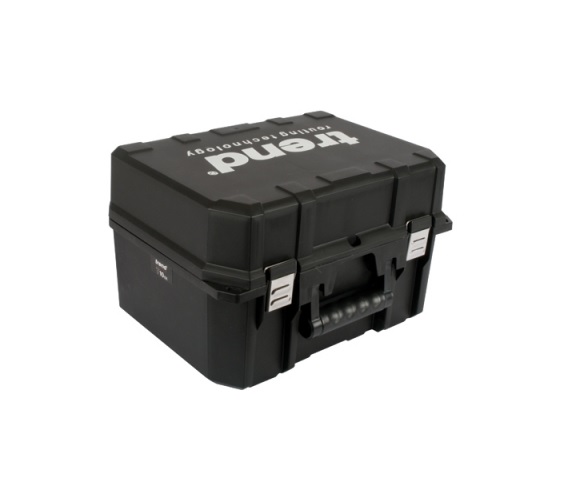

1 X Storage Case - CASE/T10
Specification
Rating: Professional / Trade
Plunge stroke:0-80 mm
Power input:2000 watt
Power ampage:9.6 amp
Standard collet dia.:1/2"
No load speeds:8-20000 rpm
Dust spout size ID:35 mm
Guide bush dia. supplied:30 mm
Rod diameter:10 mm
Rod length:360mm
Rod centres:110 mm
Cutter dia. max. plunge/table:70/86 mm
Other collet dia.:6mm, 1/4", 8mm, 3/8", 10mm & 12mm
