Trend T11EK Plunge Router Set with 6 Piece Cutter Starter Package

Trend T11EK Plunge Router Set with 6 Piece Cutter Starter Package

Package includes:

• 1 x Trend T11EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox
• 1 x TREND SET/SS11X1/2TC 6pc Router Cutter / Bit Starter Set

Trend T11EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox

Heavy Duty Trade Router Designed for use in a Router Table or for use by Tradespeople in the Workshop or On-Site. The Essential Router for Worktop Fitting, Lock and Stair Jigs and General Workshop use.

• Trend 1/2" Collet Variable Speed Workshop Plunge Router fitted with a 2000w motor 230v machine, with built in Quick Raiser fine adjuster and electronic full wave variable control of the spindle speed under load, for a fine finish on all types of material with soft start eliminating sudden movement of machine on start up.
• The two column precision base with large phosphor bronze bushes allows for plunging accuracy with the spindle lock and hex collet nut resulting in easy cutter changes with the 22mm spanner supplied.
• An adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work and the precision machined one-piece multi-slit collet for fail-safe grip of cutter shank the 3-position revolving depth stop gives fast adjustable settings with an adjustable inner plate for guide bush accuracy.
• Comes complete with a router fine height adjuster for above and below height adjustment, one revolution of the handle equals 1.5mm supplied with three quick release recesses in base to fit tables in conjunction with an optional Quick Release Kit with fittings for optional Clamp Guide System Kit and an extra large base aperture for large cutters.

• Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
• Soft start eliminates sudden movement of routing machine on start up.

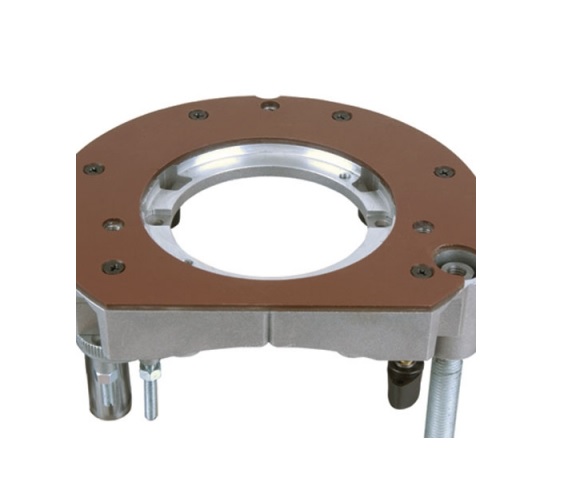

• Two column precision base with large phosphor bronze bushes for plunging accuracy.
• Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied.
• Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.
• Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank.

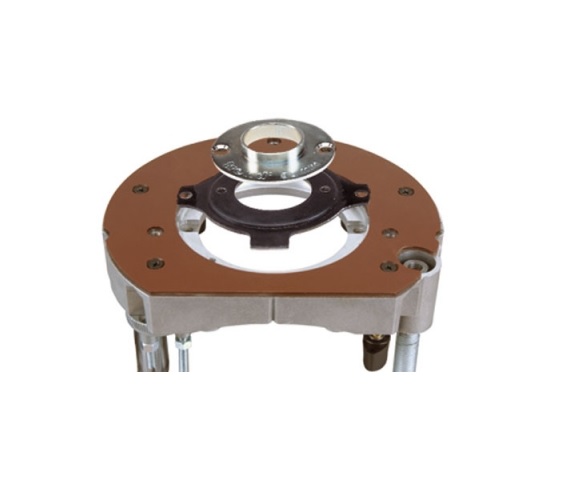

• 3-position revolving depth stop for fast adjustable settings. Adjustable inner plate for guide bush accuracy.

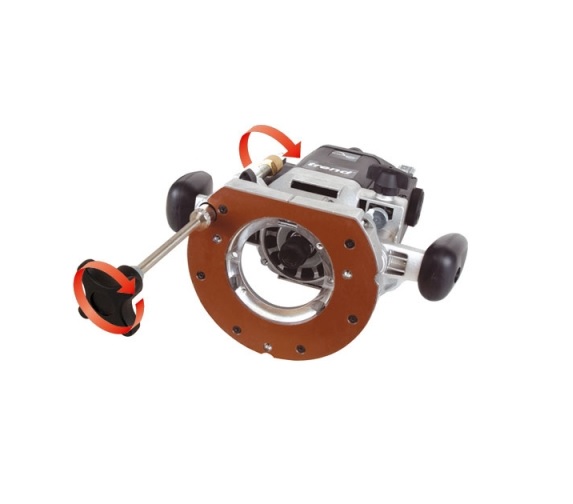

• Router fine height adjuster for above and below height adjustment. One revolution of the handle equals 1.5mm.
• Three quick release recesses in base to fit tables in conjunction with optional Quick Release Kit.
• Fittings for optional Clamp Guide System Kit.
• Extra large base aperture for large cutters. Quick release dust spout.
• Three year extended warranty with online registration (UK and Eire only).
• For UK sale only

• 1 x 1/2" Collet - CLT/T10/127
• 1 X Fine Height Adjuster - QP - T11/128
• 1 X Inner Plate - WP-T9/075
• 1 X Line up Pin - WP-T9/090
• 1 X 35mm Clip-in Dust Spout - WP-T11/107
• 1 X Side-fence with Micro Adjuster - WP-T10/087

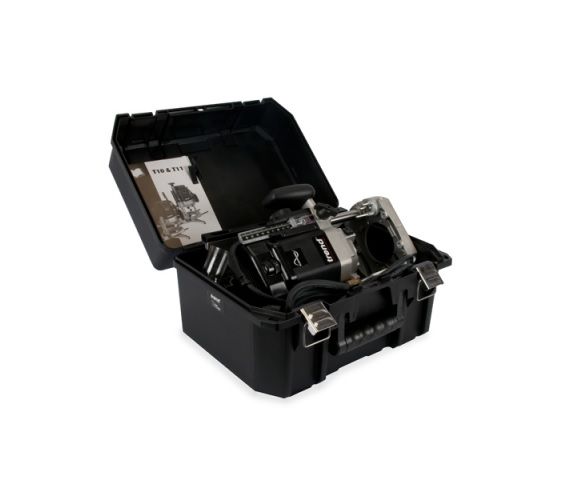

• 1 X Storage Case - CASE/T10

• Rating:  Professional / Trade
• Plunge stroke: 0-80 mm
• Power input: 2000 watt
• Power ampage: 9.6 amp
• Standard collet dia.: 1/2"
• No load speeds: 8-20000 rpm
• Dust spout size ID: 35 mm
• Guide bush dia. supplied: 30 mm
• Rod diameter: 10 mm
• Rod length: 360mm
• Rod centres: 110 mm
• Cutter dia. max. plunge/table: 70/86 mm
• Other collet dia.: 6mm, 1/4", 8mm, 3/8", 10mm & 12mm
• Weight: 6.2kg
• Voltage: 230 volt (for 115 volts see T11ELK)
• Sound pressure Lpa: 6' 5" (1956 mm)
• Acoustic pressure Lwa: 93.0 dB(A)1
• Thickness min.: 102.0dB(A)2
• Hand arm vibration: <2.5 m/s2
• Quick raiser socket A/F: 12mm

Optional  Accessories:

• Quick release kit
  Comprising: 3 sets of cams, bolts & fixings
  Product Ref:T11/JT/KIT

• Varijig clamp guide system kits
  Comprising: alloy bracket fixing & plastic slider. Allows
  Product Ref: T11 to join to Varijig Clamp Guides. T11/VJS/CGKIT

• Extra side-fence
  Product Ref: WP-T11/087

• Direct fit large guide bushes
  50mm - Product Ref: GB500
  60mm - Product Ref: GB600
  70mm - Product Ref: GB700

• Plug 115v 32A
  32A BS4343 115 volt plug
  Product Ref: PLUG/110V/32A

Trend T10 / T11 Router Owners Manual

Trend 6 Piece Router Cutter Starter Set (SET/SS11X1/2TC)


• This six piece cutter set contains a range of popular Tungsten Carbide Tipped cutters for a variety of applications.
• 1/2- inch shank diameter.
• For softwood, hardwood, chipboard, plywood and MDF.
• Excellent value for money.
• Supplied in aluminium carry case.

• 1 X Straight 6.3mm x 16mm cut
• 1 x Straight 12.7mm x 25mm cut
• 1 x 45 Degree v groove x 12.7mm dia
• 1 x Guided round over R6.3mm
• 1 x Guided round over R9.5mm
• 1 x Guided ogee R4.0mm
