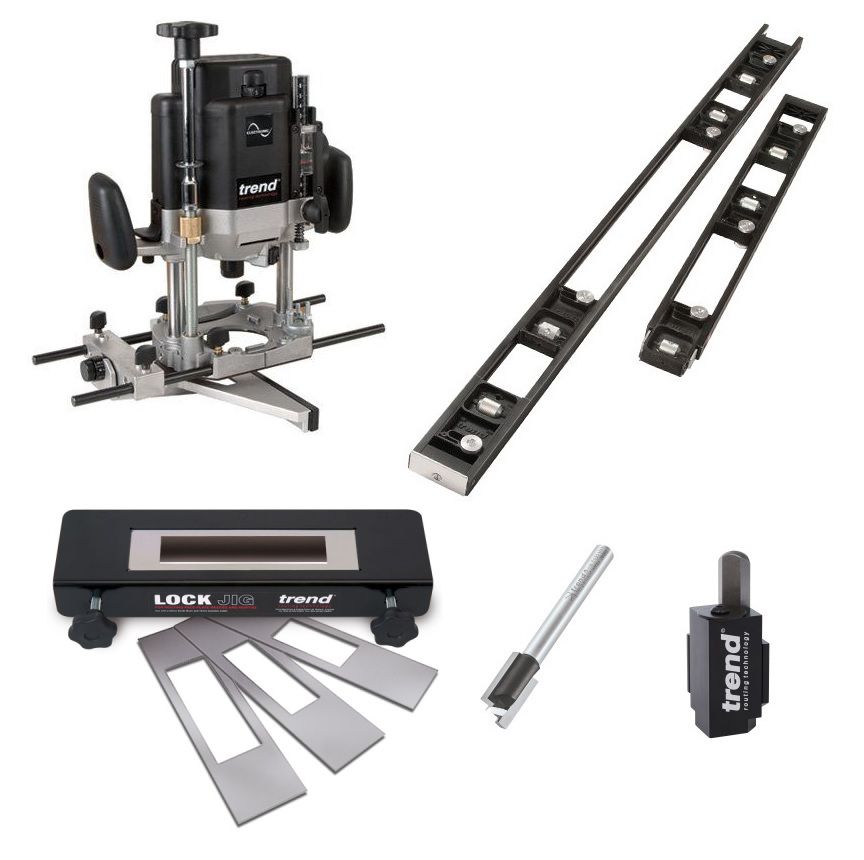

Trend 1/2" Collet Variable Speed Workshop Plunge Router fitted with a 2000w motor 230v machine, with built in Quick Raiser fine adjuster and electronic full wave variable control of the spindle speed under load, for a fine finish on all types of material with soft start eliminating sudden movement of machine on start up.
The two column precision base with large phosphor bronze bushes allows for plunging accuracy with the spindle lock and hex collet nut resulting in easy cutter changes with the 22mm spanner supplied.
An adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work and the precision machined one-piece multi-slit collet for fail-safe grip of cutter shank the 3-position revolving depth stop gives fast adjustable settings with an adjustable inner plate for guide bush accuracy.
Comes complete with a router fine height adjuster for above and below height adjustment, one revolution of the handle equals 1.5mm supplied with three quick release recesses in base to fit tables in conjunction with an optional Quick Release Kit with fittings for optional Clamp Guide System Kit and an extra large base aperture for large cutters.
Key Features
Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
Soft start eliminates sudden movement of routing machine on start up.
Two column precision base with large phosphor bronze bushes for plunging accuracy.
Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied.
Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.
Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank.
3-position revolving depth stop for fast adjustable settings. Adjustable inner plate for guide bush accuracy.
Router fine height adjuster for above and below height adjustment. One revolution of the handle equals 1.5mm.
Three quick release recesses in base to fit tables in conjunction with optional Quick Release Kit.
Fittings for optional Clamp Guide System Kit.
Extra large base aperture for large cutters. Quick release dust spout.
Three year extended warranty with online registration (UK and Eire only).
For UK sale only
Specification
Rating: Professional / Trade
Plunge stroke:0-80 mm
Power input:2000 watt
Power ampage:9.6 amp
Standard collet dia.:1/2"
No load speeds:8-20000 rpm
Dust spout size ID:35 mm
Guide bush dia. supplied:30 mm
Rod diameter:10 mm
Rod length:360mm
Rod centres:110 mm
Cutter dia. max. plunge/table:70/86 mm
Other collet dia.:6mm, 1/4", 8mm, 3/8", 10mm & 12mm
This jig uses a set of interchangeable templates and a router to cut the mortise and faceplate recess for popular door locks.
Key Features
For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate
Deeper mortises can be achieved with a suitable size of auger bit
Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood
Steel plates & body
An auger bit and drill is required to complete deep mortises
The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise
Trend Hinge Jig C - Hinge Jig Skeleton Two Part In Case - Ref: H/JIG/C
Key Features
The two part Contractor Hinge Jig is a portable fully adjustable block template set designed for recessing hinges in wooden doors & frames using a plunge router.
It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
Used on-site & in joinery shops to increase productivity with excellent results.
Fully adjustable apertures for fire door requirements and renovation work.
Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
Ideal for fitting a new door in an old frame.
No need for marking out in the conventional way.
Quick & simple to set-up as the hinge is used as the pattern.
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
Use with a light duty plunge router with 1/4 inch collet.
Long reach router cutter required, 12mm diameter with 70mm overall length.
Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
Unibase may be needed.
Patent No. GB2490139
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.
Items included
3 x Hinge sliding aperture block assemblies
4 x Bradawls (short blade)
1 x 16mm guide bush
1 x Carry case
Specification
Length min:2 5/8" (67 mm)
Length max: 5" (127 mm)
Width min: 1/2" (12.7 mm)
Width max: 1 3/8" (35 mm)
Width max. in 35mm rebate:23 mm
Width max. in 44mm rebate:32 mm
Door sizes possible
Height min:6' 5" (1956 mm)
Height max:2100 mm* (6' 10"*)
Thickness min:5/8" (16 mm)
Thickness max:2" (51 mm)
Edge stops thickness:6 mm
Weight:2.9 kg
Jig overall length:1956 mm
Plate thickness:3 mm
Fixed stop max. thickness:25 mm**
* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
