Trend T4EK - 850W 1/4" Variable Speed Plunge Router 240V with Kitbox

Trend T4EK - 850W 1/4" Variable Speed Plunge Router 240V with Kitbox

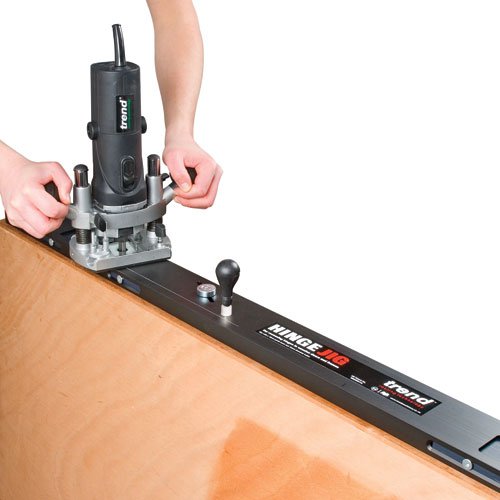

Lightweight, compact plunge router, with a removable motor body. Ideally suited to overhead working and perfect for hinge recess cutting, timber profiling and hand carving.

• Removable Motor Body can be easily detached from the base for hand carving and die grinding applications.
• Anti-Restart Protection prevents the router from accidental start-up if the power supply is interrupted or lost and restored.
• 7-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
• Side Fence for edge rebating, grooving and moulding applications.

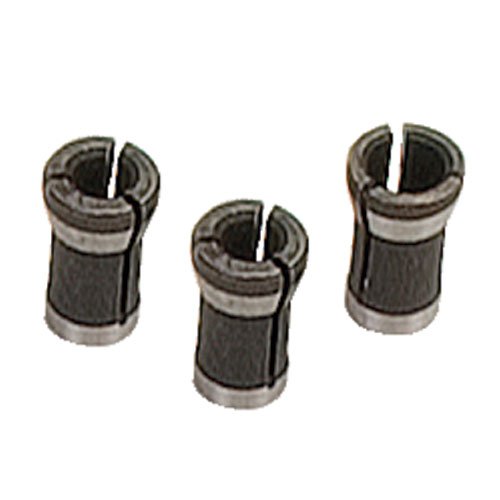

• 1/4", 6mm & 8mm Collets are supplied for maximum versatility.
• Plunge Depth Limiter is easy to set and prevents over-cutting.
• 3-Position Rotating Turret to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
• Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
• Spindle Lock for quick and easy cutter changes.
• Replaceable Carbon Brushes are easily accessible and simple to change for extended motor life.

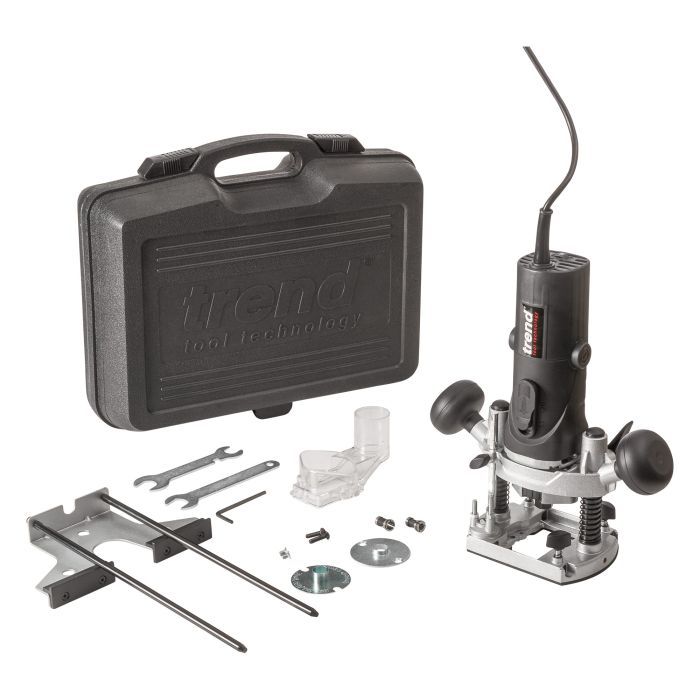

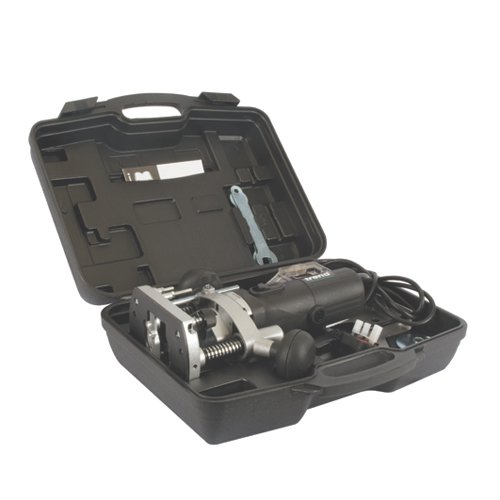

• Moulded Carry Case provides safe storage for router and accessories.
• 3 year warranty – Online registration required

• Rating - Hobbyist / Light Trade
• Plunge stroke - 0-35 mm
• Power input - 850 watts
• Power ampage - 3.7 amp
• Standard collet dia. - 1/4", 6 mm & 8 mm

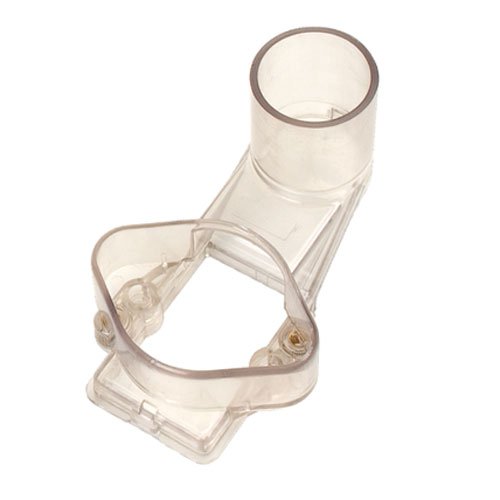

• Dust spout size ID - 34 mm
• Guide bush dia. - 16 mm
• No load speeds - 11500 - 32000 rpm
• Weight - 2.8 kg
• Cutter dia. max - 30 mm
• Rod diameter - 8 mm
• Rod centres - 84 mm
• Voltage - 230 volts
• Sound pressure Lpa - 91.1 dB(A)1
• Acoustic pressure Lwa - 104.1 dB(A)2
• Hand arm vibration - <3.0 m/s2

Trend T4 Router Owners Manual

To find out everything you need to know about routing and how to decide which router is best for your needs, visit our Knowledge Centre.
