Trend T4EK Router and Door Hinge Jig Package Deal with Cutter, Chisel Hinge/Jig/Deal

Trend T4EK Router and Door Hinge Jig Package Deal with Cutter, Chisel Hinge/Jig/Deal

Package includes:

• 1 x Trend T4EK - 850W 1/4" Variable Speed Plunge Router 240V with Kitbox
• 1 x TREND HINGE/JIG HINGE RECESSING JIG - SINGLE PIECE
• 1 x TREND TR12x1/4TC Hinge Jig Router Cutter Two Flute 12.0mm dia x 19.0mm Cut - Ex LONG 70.0MM O/L

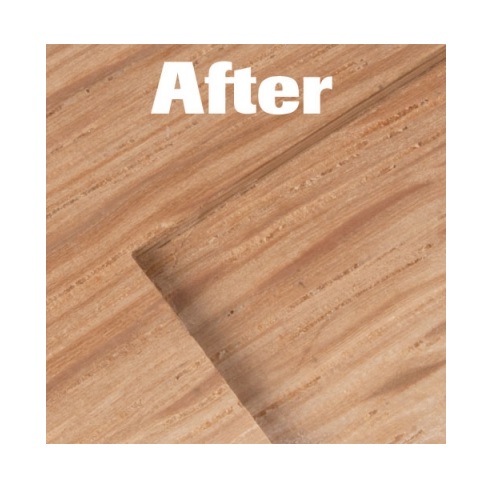

• 1 x TREND CORNER CHISEL C/CHISEL for Hinge Jig

Trend T4EK - 850W 1/4" Variable Speed Plunge Router 240V with Kitbox

Lightweight, compact plunge router, with a removable motor body. Ideally suited to overhead working and perfect for hinge recess cutting, timber profiling and hand carving.

• Removable Motor Body can be easily detached from the base for hand carving and die grinding applications.
• Anti-Restart Protection prevents the router from accidental start-up if the power supply is interrupted or lost and restored.
• 7-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
• Side Fence for edge rebating, grooving and moulding applications.
• 1/4", 6mm & 8mm Collets are supplied for maximum versatility.
• Plunge Depth Limiter is easy to set and prevents over-cutting.
• 3-Position Rotating Turret to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
• Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
• Spindle Lock for quick and easy cutter changes.
• Replaceable Carbon Brushes are easily accessible and simple to change for extended motor life.
• Moulded Carry Case provides safe storage for router and accessories.
• 3 year warranty – Online registration required

• Rating - Hobbyist / Light Trade
• Plunge stroke - 0-35 mm
• Power input - 850 watts
• Power ampage - 3.7 amp
• Standard collet dia. - 1/4", 6 mm & 8 mm
• Dust spout size ID - 34 mm
• Guide bush dia. - 16 mm
• No load speeds - 11500 - 32000 rpm
• Weight - 2.8 kg
• Cutter dia. max - 30 mm
• Rod diameter - 8 mm
• Rod centres - 84 mm
• Voltage - 230 volts
• Sound pressure Lpa - 91.1 dB(A)1
• Acoustic pressure Lwa - 104.1 dB(A)2
• Hand arm vibration - <3.0 m/s2

Trend T4 Router Owners Manual

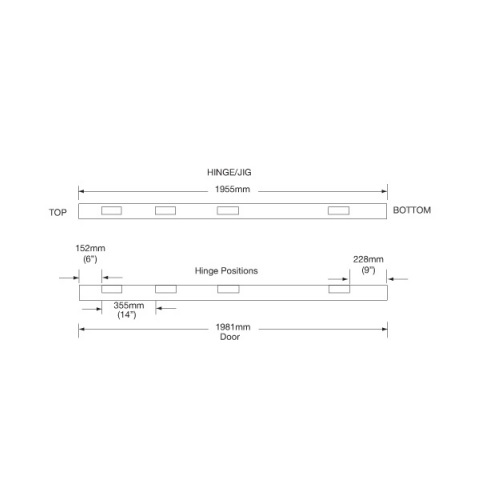

Trend Routing On-Site Jigs - Hinge Recessing Jig - Single Piece - Ref: HINGE/JIG

• The single piece Contractor Hinge Jig is designed for recessing hinges in wooden doors & frames with a plunge router
• It is easy to use with minimal setting-up time, completing the job both accurately & quickly
• Used on-site & in joinery shops to increase productivity with excellent results
• Four apertures for fire door requirements
• No need for marking out in the conventional way
• Quick & simple to set-up as the hinge is used as the pattern
• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
• Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops
• Use with a light duty plunge router with 1/4 inch collet
• Long reach router cutter required, 12mm diameter with 70mm overall length
• Angled position slots to prevent creep
• Unibase may be needed
• T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160

• 4 x Apertures
• 2 x Bradawls with spacer
• 1 x 16mm guide bush
• 1 x T-Handle hex key 4mm
• 1 x 4mm spacing gauge
• 1 x Plastic storage tube

• Length min: 2 5/8" (67 mm)
• Length max: 5" (127 mm)
• Width min: 3/8" (9.5 mm)
• Width max: 1 3/8" (35 mm)
• Width max. in 35mm rebate: 20 mm
• Width max. in 44mm rebate: 30 mm
• Door sizes possible
• Height min: 6' 5" (1955 mm)
• Height max: 2100 mm*
• Thickness min: 5/8" (16 mm)
• Weight 2.9 kg
• Jig overall length 1957 mm
• Plate thickness 2 mm
• Fixed stop max. thickness 25 mm**
