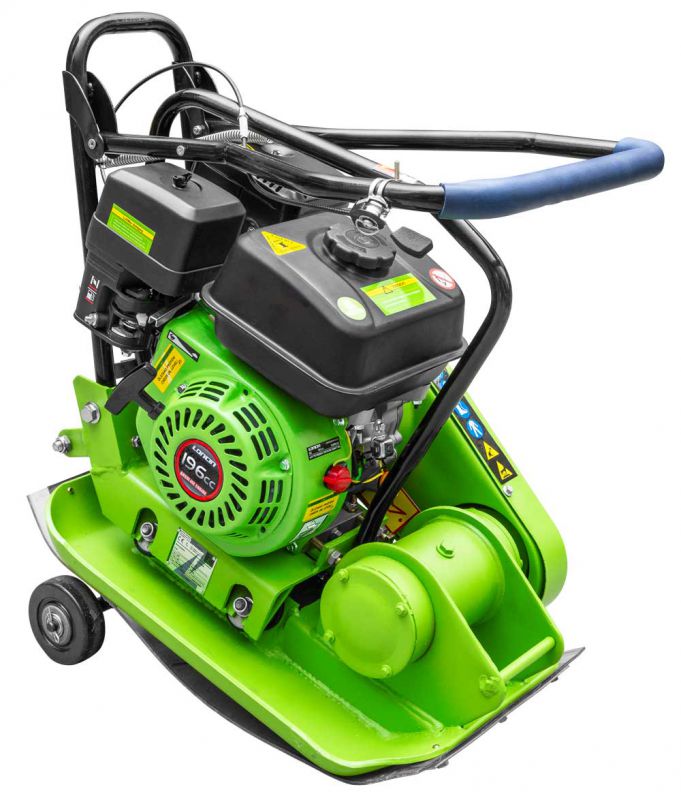

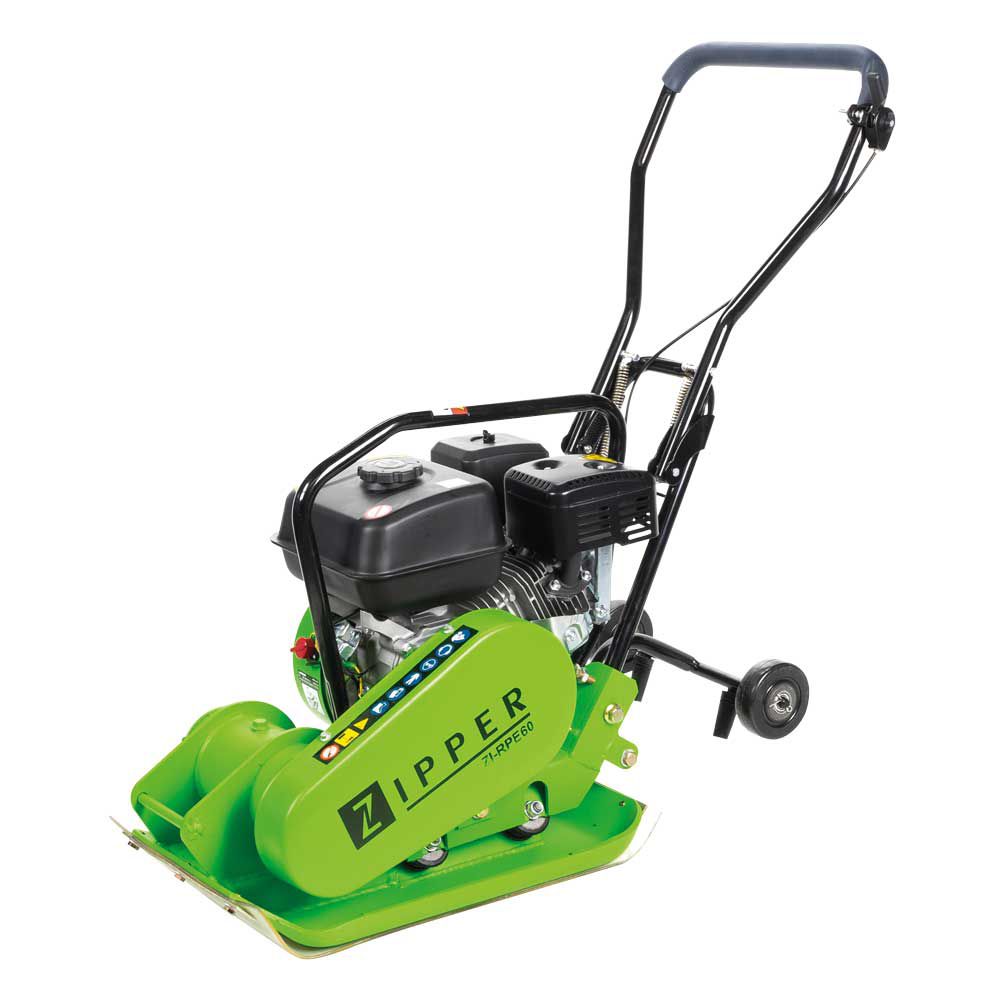

Zipper RPE60 - Plate Compactor 370 x 520 mm

Zipper RPE60 - 5.4 HP Petrol Plate Compactor 370 x 520 mm

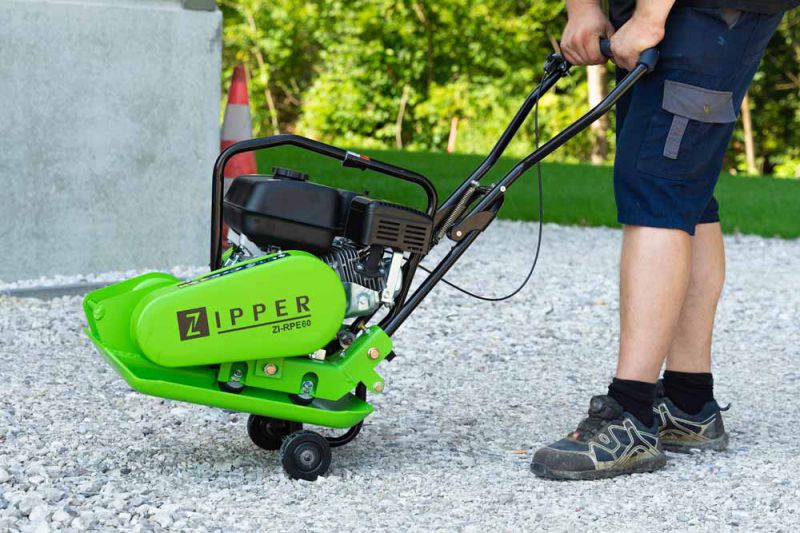

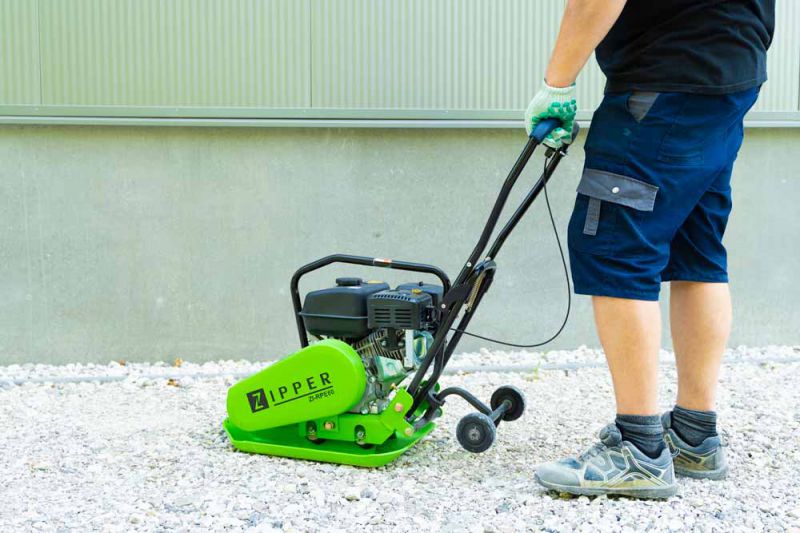

Zipper RPE60 forward running plate compactor for effective compacting work on patios, extensions, paths, driveways, and landscaping jobs.

• the forward running plate compactor is especially  suitable for pave works and repairs at path, garden and landscape building sites
• foldable handle – compact size for easy transportation and storage
• equipped with all-side protected V-belt,  carrying handle and side-closed base plate incl. transparent rubber mat for pave works and moving device
• 520 x 370 mm plate size
• 5.4 hp engine
• 10,500N compaction force
• 150 mm compression depth
• 22 m/min max. forward travel speed
• Noise power Level : 107 db(A)

• Folding handle
• transport wheels
• carry handle
• transparent rubber mat for block paving work

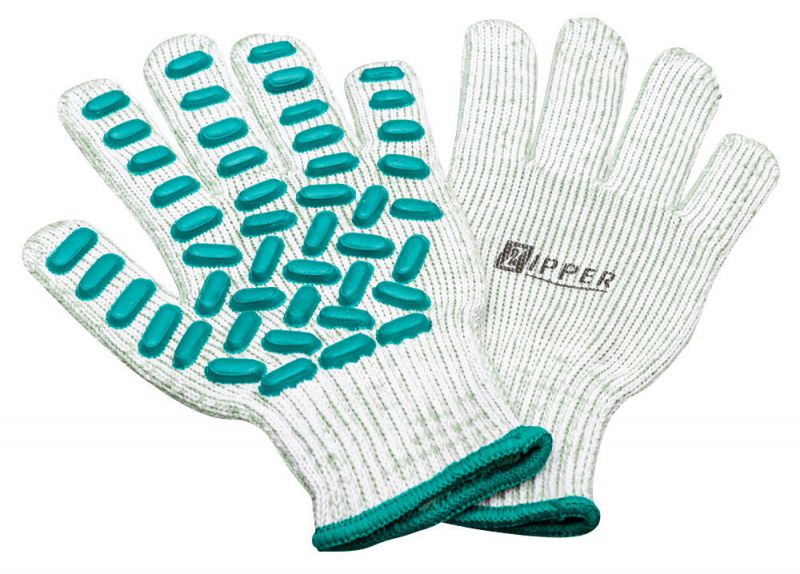

• anti-vibration work gloves
• engine oil
• instruction manual.

• Motor power S1 in W: 4100
• Engine type: 1-cylinder 4-stroke OHV engine
• Tank capacity in l: 3.6
• fuel: ROZ95
• Centrifugal force in kN: 12.1
• Plate width in mm: 350
• Vibration shocks in vpm: 5600
• max.feed in m / min: 13.8
• Plate length in mm: 510
• Compaction depth in mm: 150
• Sound power level in dB (A): 107
• Gross weight 68 kg
• Net weight 62 kg

Zipper RPE60 Plate Compactor Owners Manual
