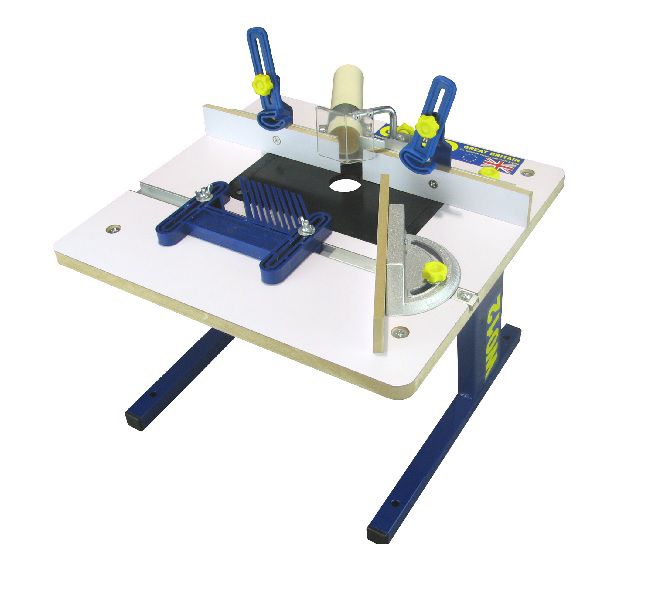

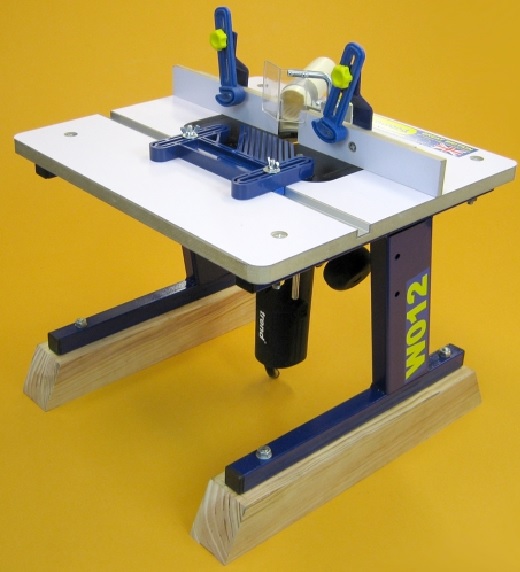

Charnwood W012 - Bench Top Router Table

Charnwood W012 - Bench Top Router Table

Bench top universal router table for use with any 1/4" router.

• Will Accept Any 1/4" Router
• MDF Table
• 2 Hold Down Clamps

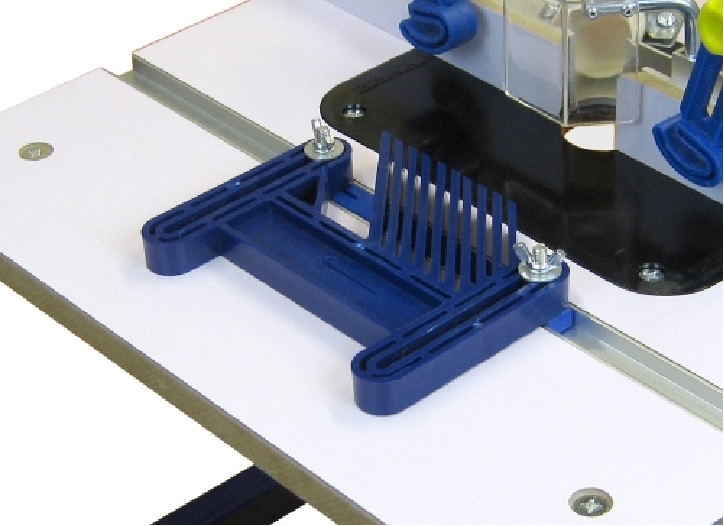

• Horizontal Feather Board
• Cutter Guard
• 40mm Diameter Dust Collection Outlet
• NVR Safety Switch shown for illustration purposes only

• A router table will convert a hand held plunging router into a stationary tool which is safer to use and quicker to set up than using freehand. Ideally suited for all 1/4" sized routers this compact router table will perform a variety of jobs such as edge moulding, trenching and tenoning.
• The side frames are steel with a smooth MDF table. The insert plate, which must be drilled to suit your routers fixing points, is made from a tough plastic.

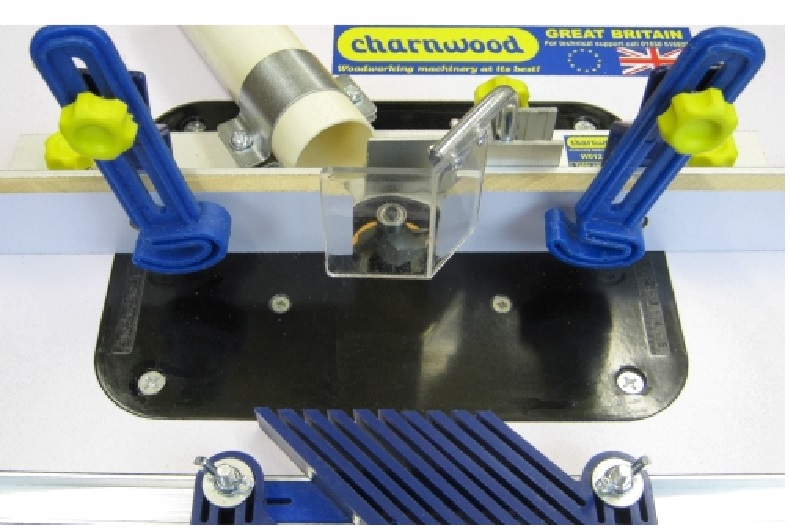

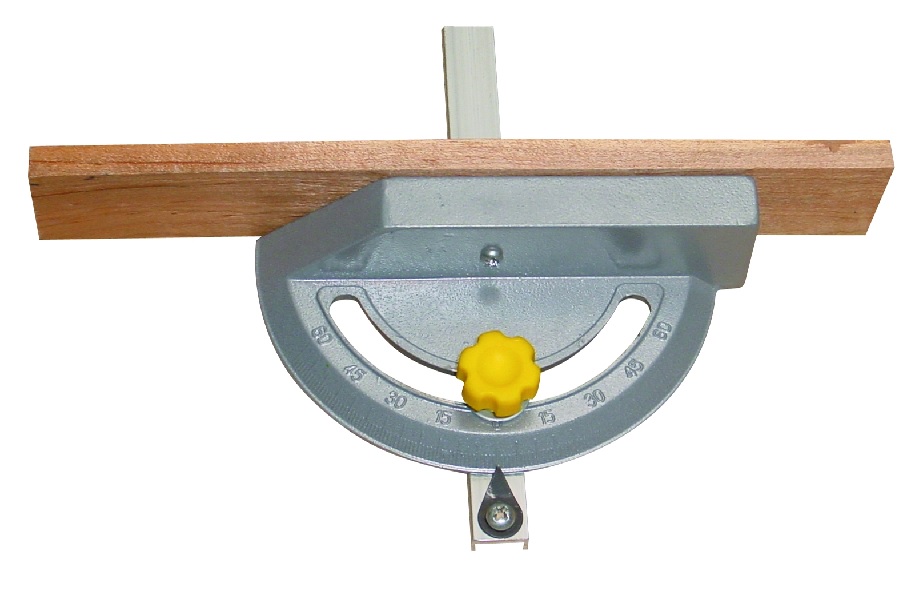

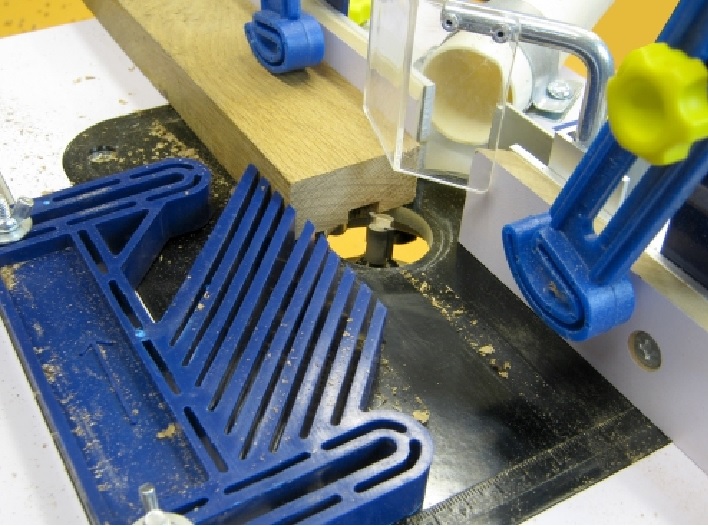

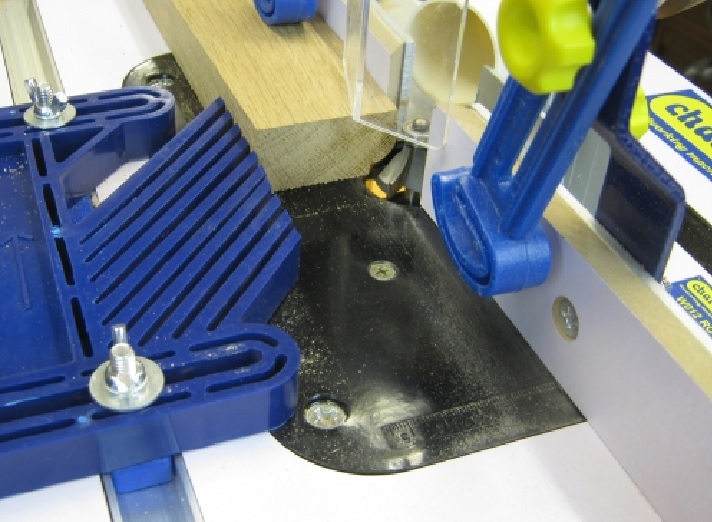

• The fence arrangement is simple and effective. The three clamps supplied as standard will hold the workpiece securely down against the table and up against the cutter leaving the operator to merely feed the timber through from right to left. A perspex guards protects the operator from flying chips and a dust chute is included for connecting to an extractor. A sliding mitre fence, with a replaceable wooden face, completes the standard equipment
• Suitable for use with router cutters up to 35mm diameter.
• Supplied with tough plastic insert plate, adjustable fence with two replaceable wooden faces, horizontal feather board, two vertical clamps and sliding mitre fence.

• Table size: 430mm x 400mm
• Table height: 290mm
• Table thickness: 20mm
• Table aperture: 35mm
• Dimensions (WxDxH): 430mm x 400mm x 450mm
• Weight: 8kg
• Rating: Hobby
• Warranty: 1 Year

Charnwood W012 Operators Manual
