Charnwood W815 Mini Lathe

Charnwood W815 - Mini Woodturning Lathe

• A high quality mini woodworking lathe ideal for the production of smaller pieces or where the workshop size does not allow for a longer bed. Recommended for Pen Turning.
• The bed, headstock and tailstock are all constructed from cast iron to give vibration free running but the compact size means the weight is still manageable and the lathe can be removed from the bench when not in use.

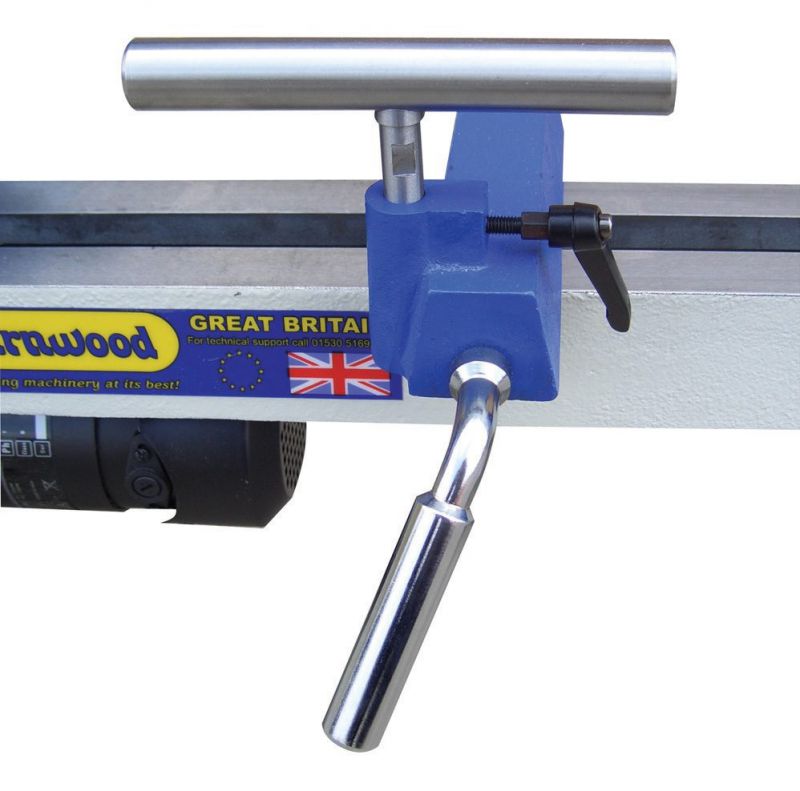

• Electronic variable speed control allows the ideal speed to be quickly selected for jobs of any diameter. The new cam lock banjo design is even easier to use, and when coupled with the new round bar tool rest is a winning combination. The tool rest cross bar can be removed from the stem to change the length of the cross bar. Compatible with the Robert Sorby range of cross bar.

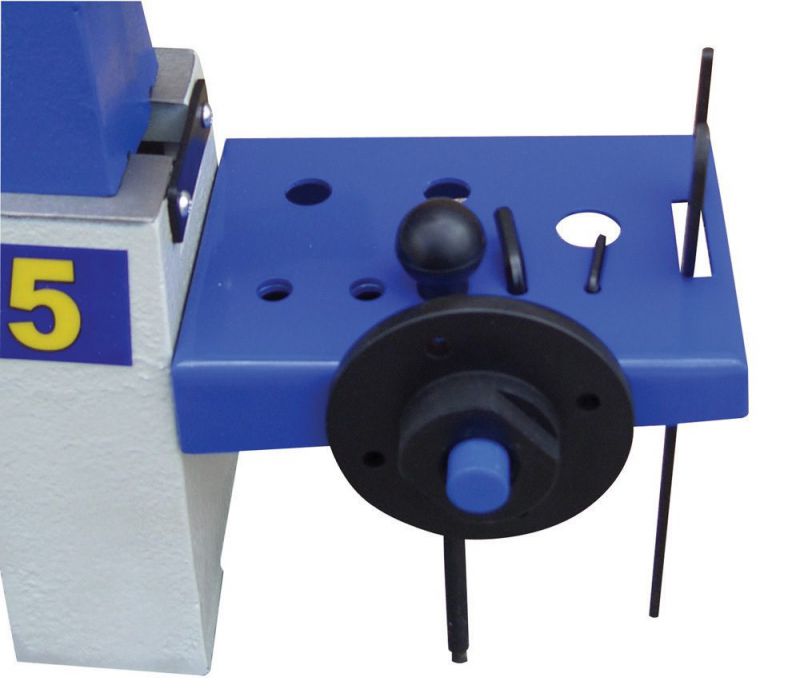

• We also now include a handy storage rack to keep centres, faceplates and service tools in one place and ready to go.

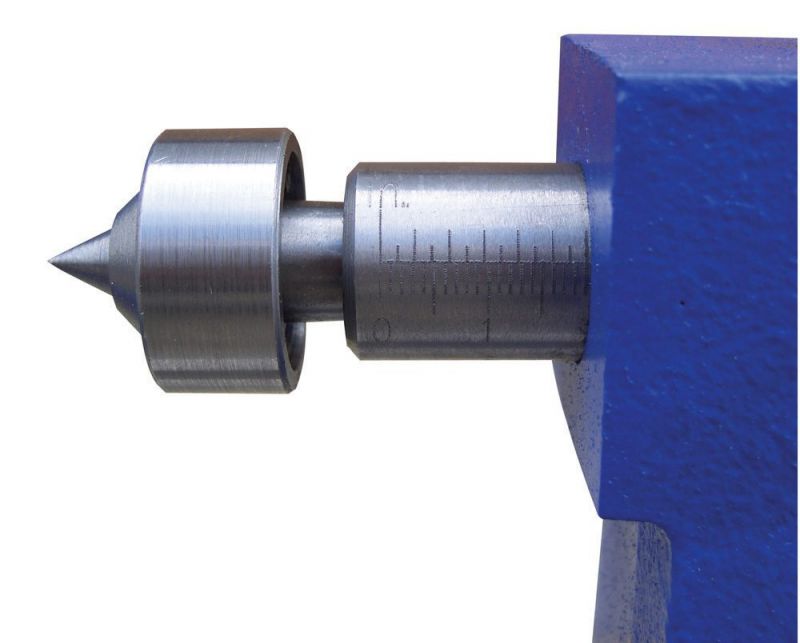

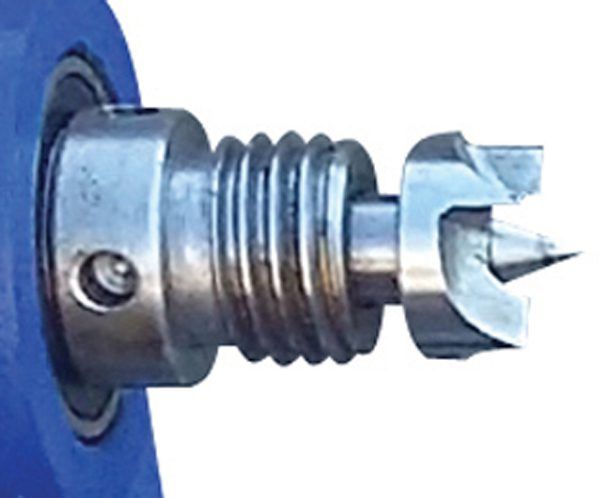

• Supplied with four prong drive centre, revolving tail centre, 150mm (6") tool rest cross bar with 12mm diameter stem, 75mm (3") diameter faceplate, cable and plug.
• See our Lathe Chucks for a full range of chucks. Models W810 and VIPER2 are most suitable for use with this machine

• Max. spindle length (without centres): 385mm (15.4")
• Max. spindle length (with centres fitted): 330mm (13")
• Swing over bed (Max bowl diameter): 200mm (8")
• Swing over banjo (Max bowl diameter): 135mm (5.4")
• Motor (carbon brush): 250w (1/3hp), 240v
• Speeds: 750 – 3200rpm
• Spindle thread size: 1" x 8tpi
• Head and tailstock tapers: 1MT
• Dimensions (WxDxH): 690mm x 220mm x 310mm
• Weight: 20kg
• Assembly Time Required: 10 Minutes
• Rating: Hobby
• Product Guarantee: 5 Years
