Charnwood W815P Mini Woodturning Lathe Package Deal 1

Charnwood W815P

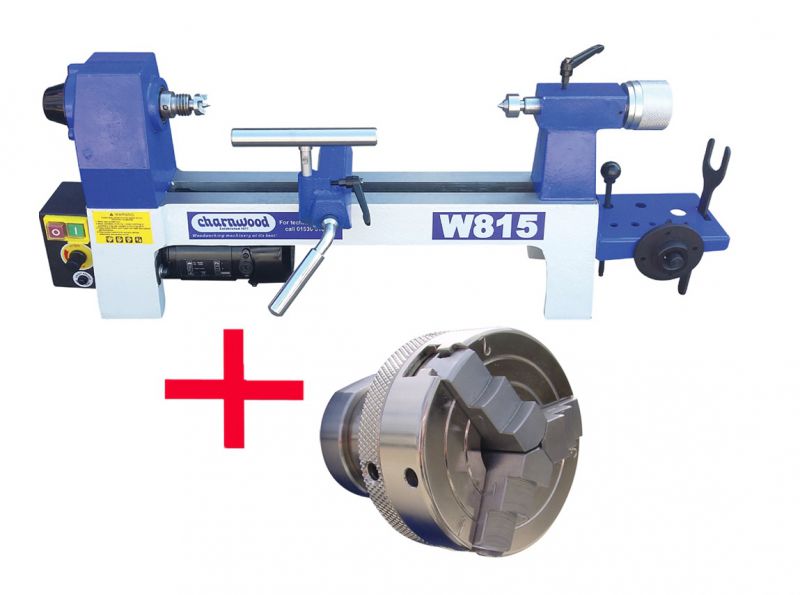

Mini Lathe and Chuck Package Deal

Package Consists of:

• W815 Mini Lathe
• W810 3 Jaw Chuck

W815 Mini Woodturning Lathe: A high quality mini woodworking lathe ideal for the production of smaller pieces or where the workshop size does not allow for a longer bed.

The bed, headstock and tailstock are all constructed from cast iron to give vibration free running but the compact size means the weight is still manageable and the lathe can be removed from the bench when not in use.
Electronic variable speed control allows the ideal speed to be quickly selected for jobs of any diameter. The new cam lock banjo design is even easier to use, and when coupled with the new round bar tool rest is a winning combination. The tool rest cross bar can be removed from the stem to change the length of the cross bar. Compatible with the Robert Sorby range of cross bars.

We also now include a handy storage rack to keep centres, faceplates and service tools in one place and ready to go.

Supplied with four prong drive centre, revolving tail centre, 150mm (6") tool rest cross bar with 12mm diameter stem, 75mm (3") diameter faceplate, cable and plug.

W815 Lathe Specification

• Max. spindle length (without centres): 385mm (15.4")
• Max. spindle length (with centres fitted): 330mm (13")
• Swing over bed (Max bowl diameter): 200mm (8")
• Swing over banjo (Max bowl diameter): 135mm (5.4")
• Motor (carbon brush): 250w (1/3hp), 240v
• Speeds: 750 – 3200rpm
• Spindle thread size: 1" x 8tpi
• Head and tailstock tapers: 1MT
• Dimensions (WxDxH): 690mm x 220mm x 310mm
• Weight: 20kg
• Assembly Time Required: 10 Minutes
• Rating: Hobby
• Product Guarantee: 5 Years

Charnwood Machinery Five Year Guarantee

W810 3 Jaw Scroll Chuck: A light weight mini lathe chuck ideal for lathes with smaller motors.

Fitted with 3 stepped jaws to give a powerful grip on smaller work pieces. The jaws are adjusted using two levers, which are supplied as standard. The chuck fits directly onto 1" x 8tpi threads or 3/4" x 16tpi using the insert, also supplied as standard.

W815 Lathe Specification

• Chuck Body Diameter: 50mm
• Standard Jaw Expands from: 8mm to 70mm
• Standard Jaw Contracts: 40mm to 3mm
• Weight: 450g
