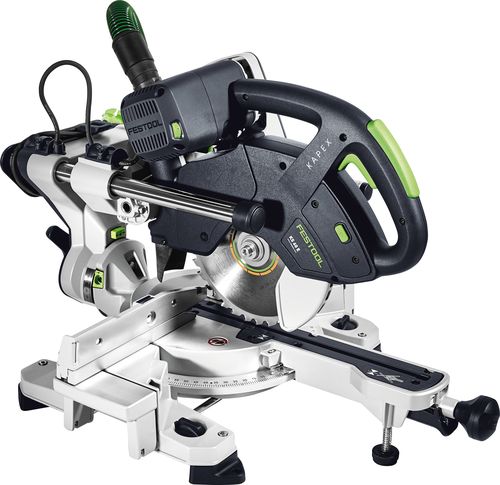

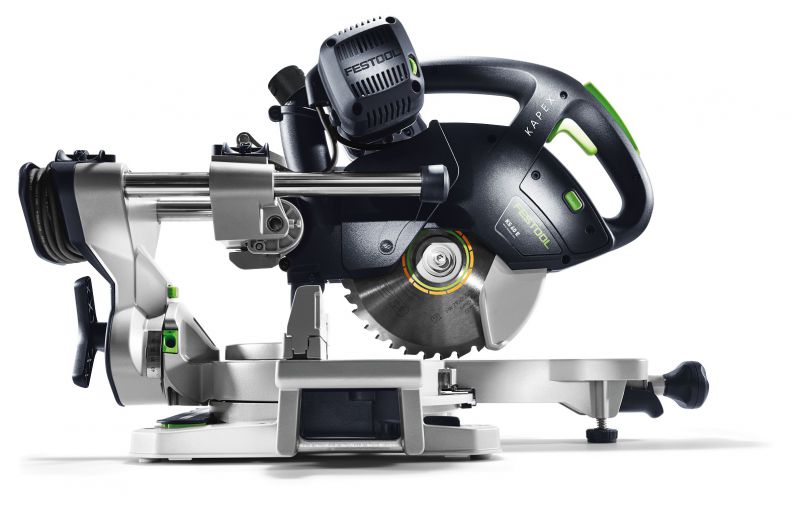

Festool 561693 Festool KAPEX KS 60 E-SET GB 110V Sliding Compound Mitre Saw
Product Code: FES/561693
Brand: Festool
Several options are available for this product.
Please Choose Below
Festool Sliding compound mitre saw KAPEX KS 60 E-SET 110V - (Ref: 561693)
Mobility, versatility and best results – perfectly combined.
The new KAPEX KS 60 dispenses with everything not needed for the job – such as every unnecessary gram of weight. With impressive features such as ergonomically positioned carrying handles, cord holder and transport safety device and an extremely compact design thanks to flush-mounted guide rods, this device makes no compromises in terms of precision and versatility – with a mitre angle on both sides of up to 60 degrees and an inclination angle on both sides of up to 46 or 47 degrees. The Festool twin-column guide with two bearings ensures that the saw blade is guided reliably and smoothly. A range of other clever details such as the LED spotlight, the pull-out extension table, the additional groove function and the bevel help to make the KAPEX KS 60 a perfect combination of mobility, versatility and optimum results.
Strengths and benefits
-
Compact and lightweight, with ergonomic handles and cord holder
-
LED spotlight to show cutting lines precisely
-
Bevel for producing interior and exterior angles
-

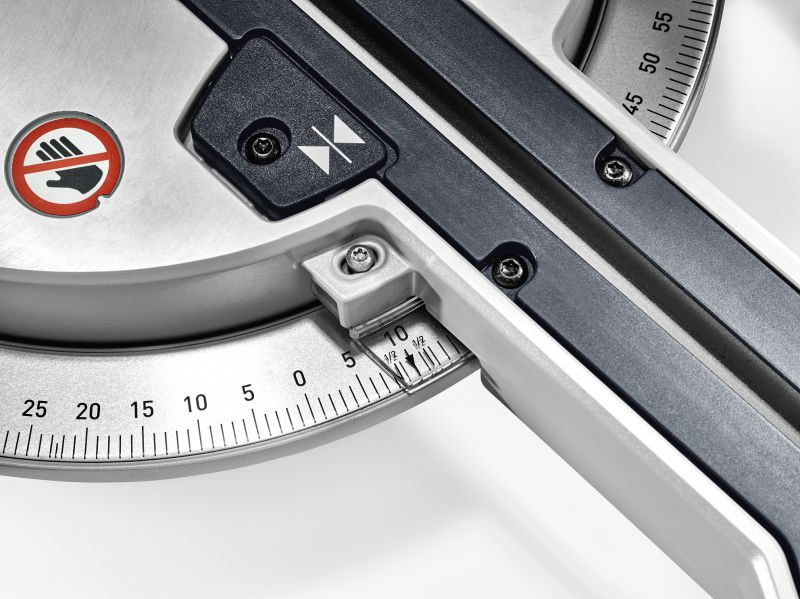

Inclination angle of up to 47°/46° on each side and mitre angle of up to 60° on each side
-
More mobile with the base frame: The UG-KAPEX base frame is a stand and a transport frame in one
-
Cutting depth limiter for rapid grooving
-
For a clean and healthy working environment: The extraction system in combination with a Festool mobile dust extractor sucks up the dust at its source
-
Always adapted to the working material: Festool saw blades are ideally adapted to the KAPEX KS 60 and the materials being used
Main areas of use
- Ideal for mobile use in assembly applications
- Cutting boards and panels up to 305 x 60 mm
- Trimming strips, profiles and square timber up to 60 mm thick
- Precisely angled adjustment of skirting boards and cornices without calculations – in conjunction with the bevel
Items included
-
HW universal saw blade W 36
-
clamp FSZ 120
-
LED spotlight
-
Bevel
-
elevation
-
operation tool
-
in carton
Technical details
-
Power consumption 1200 W
-
Idle engine speed 1300 - 3500 min?¹
-
Saw blade diameter 216 mm
-
Cutting depth 90°/90° 305 x 60 mm
-
Cutting depth at 45°/90° 215 x 60 mm
-
Cutting depth 45°/45° (left) 215 x 40 mm
-
Inclination angle 47/46 °
-
Mitre angle 60/60 °
-
Dimensions (W x D x H) 661 x 475 x 430 mm
-
Dust extraction connection dia. 27/36 mm
-
Weight 17.8 kg
-
Cutting depth 60°/90° 150 x 60 mm
-
Cutting depth 45°/45° (right) 215 x 20 mm
-
Sawing: Total vibration average, Ah 2.5 m/s²
-
Sawing: Uncertainty (noise) K 3 dB
-
Sawing: A-weighted sound power level, LWA 100 dB(A)
-
Sawing: A-weighted sound pressure level, LpA 91 dB(A)
-
Sawing: Uncertainty (vibration) K 1.5 m/s²
