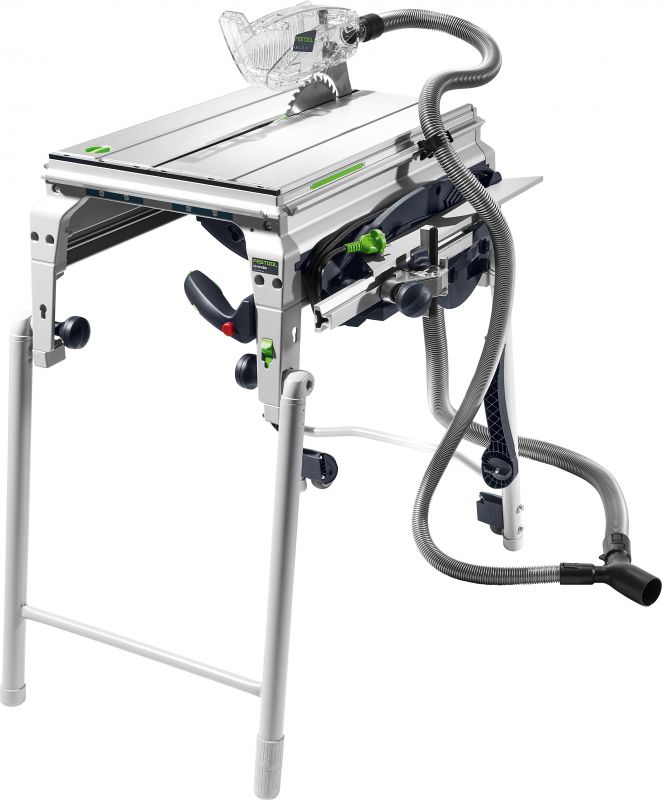

Festool 574767 Trimming Saw PRECISIO CS 50 EBG 240V

Festool 574767 Trimming Saw PRECISIO CS 50 EBG 240V

Full power perfectly under control.

The PRECISIO CS 50 is the ideal solution for cross and rip cuts in applications involving interior fitting, furniture assembly and exhibition stand construction. Thanks to its low weight and a host of ingenious functions, the CS 50 is ideal for applications where the nature of the work constantly changes, e.g. assembly tasks.

• Moving splinterguard for splinter-free cuts on both sides
• Tool-less FastFix saw blade changes
• Surrounding V groove for locating angle stops
• Can be upgraded to a sawing station by adding an extensive range of accessories
• Multifunction handle: one handle with all functions integrated
• Saw blade holder (accessory): saw blades and splinterguard always within easy reach

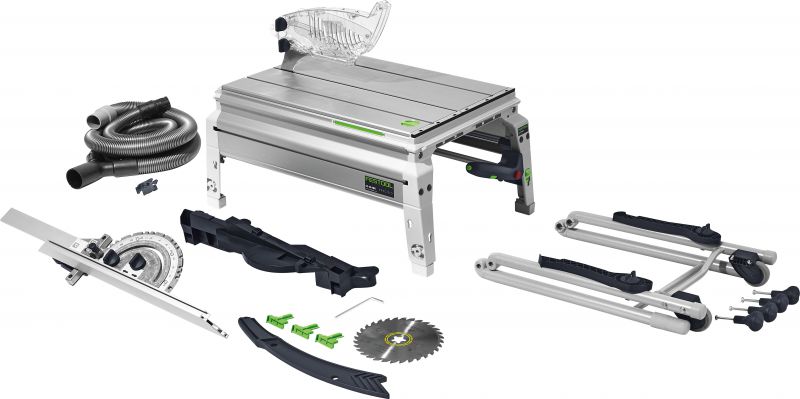

• HW universal saw blade W32
• angle stop
• foldaway legs
• 3 x splinterguards
• dust extraction set
• workpiece holder
• operation tool
• in carton

• Draw the saw blade for quick, precise cross cuts up to 300 mm wide
• Cross cuts up to 200 mm wide at 45°
• Rip cuts up to a depth of 52 mm
• Tilting saw blade for angled cuts between -2° and 47°
• Retractable spacer wedge for hidden cuts - removal not necessary

• Power consumption 1200 W
• Idle engine speed 1600 – 4200 min?¹
• Saw blade diameter 190 mm
• Cutting height 90°/45° 0 - 52/0 - 37 mm
• Inclination 0 (-2)° - 45 (+47) °
• Cutting path 304 mm
• Table dimensions 585 x 400 mm
• Table height, legs folded away 316 mm
• Table height, legs unfolded 900 mm
• Dust extraction connection dia. 27/36 mm
• Weight 21.90 kg
• Cutting height 52 mm
• Idle state: Uncertainty (noise) K 3 dB
• Idle state: Uncertainty (vibration) K 1.5 m/s²
• Idle state: A-weighted sound pressure level, LpA 84 dB(A)
• Idle state: A-weighted sound power level, LWA 97 dB(A)
• Sawing: Uncertainty (noise) K 3 dB
• Sawing: Uncertainty (vibration) K 1.5 m/s²
• Sawing: A-weighted sound pressure level, LpA 90 dB(A)
• Sawing: A-weighted sound power level, LWA 103 dB(A)
• Idle state: Total vibration average, Ah 2.5 m/s²
• Sawing: Total vibration average, Ah 2.5 m/s²
