Festool 575315 KAPEX Mitre Saw KS 120 Set-UG 240V with Underframe & Attachments

Product Code: FES/575315-PK

Brand: Festool

Several options are available for this product.

Please Choose Below

Check out our Fair Deal on Delivery Promise

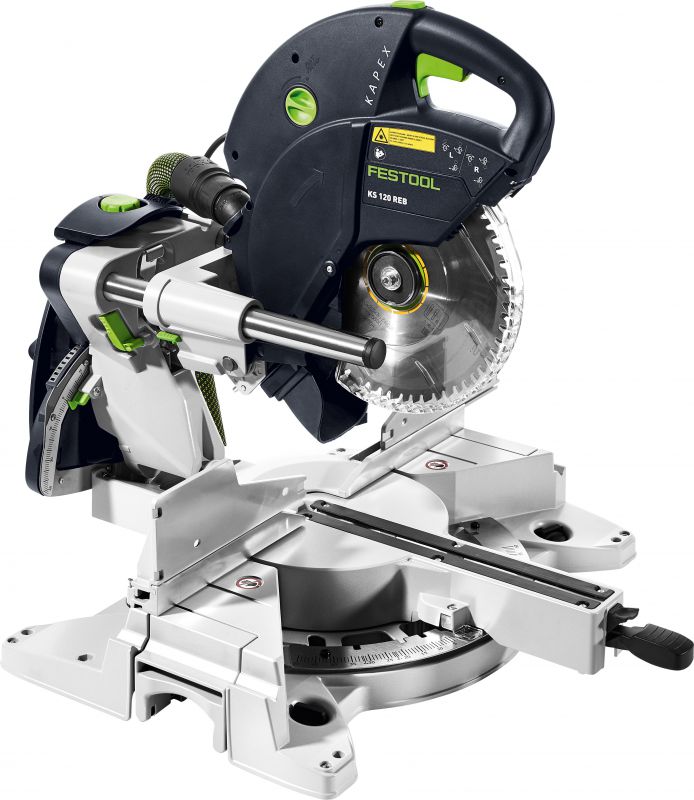

Festool KAPEX KS 120 REB UG-Set GB 240V - KAPEX Sliding Compound Mitre Saw - (Ref: 575315)

Quality down to the finest detail.

Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.

Strengths and benefits

Twin-column guide with two bearings for unique precision
Dual-line laser for an accurate indication of the cutting line
Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
Special cutting position for cutting depths up to 120 mm
FastFix saw blade changing for adaptation to the working material
Twin-column guide for accurate cuts
Precision angle transfer via bevel and dual-line laser
Compact, lightweight design for convenient transportation
Safety brake

Main areas of use

Trimming skirting boards and cornices up to 120 mm in height – no calculations
Cutting boards and panels up to 305 x 88 mm
Trimming crown mouldings up to 168 mm in their original wall position
Trimming square timber and beams up to 88 mm thick
Underframe facilitates and supports KAPEX applications
Convenient transport on building and inst. sites thanks to KAPEX underframe
KAPEX underframe makes simple folding in for transport possible
(KA-UG-R, KA-UG-L and UG-KAPEX incl. in the contents)

Items included

Adjustable stop
Bevel
Circular saw blade, wood universal HW 260x2.5x30 W60
Fold out pedestal
Hex key WAF 6
Telescopic slide out scale
Trimming attachment
Underframe
Workpiece clamp

Technical details

Power consumption 1600 W
Idle engine speed 1400 - 3400 min?¹
Saw blade diameter 260 mm
Cutting depth 90°/90° 305 x 88 mm
Cutting depth at 45°/90° 215 x 88 mm
Special cutting depth 90°/90° 60 x 120 mm
Crown moulding diagonal cut 45°/90° 168 mm
Inclination angle 47/47 °
Mitre angle 50/60 °
Dimensions (W x D x H) 713 x 500 x 470 mm
Weight 23.10 kg
Dust extraction connection dia. 27/36 mm
Special cut. depth 45°/90° (left) 40 x 120 mm
Special cutting depth 45°/90° (right) 20 x 120 mm
Cutting depth 50°/90° (left) 196 x 88 mm
Cutting depth 60°/90° (right) 152 x 88 mm
Cutting depth 45°/45° (left) 215 x 55 mm
Cutting depth 45°/45° (right) 215 x 35 mm
Crown moulding diagonal cut at 90°/90° 168 mm
Work height 900 mm
Sawing: Uncertainty (noise) K 3 dB
Sawing: Uncertainty (vibration) K 1.5 m/s²
Sawing: A-weighted sound pressure level, LpA 88 dB(A)
Sawing: A-weighted sound power level, LWA 101 dB(A)
Sawing: Total vibration average, Ah 2.5 m/s²

Key Features

The KS 120 is impressive with its precise cuts thanks to the twin-column guide, powerful cutting capacity of up to 120 mm and light weight of 21.5 kg.
The Festool twin-column guide guarantees reliable, smooth guidance of the saw blade and represents maximum precision.

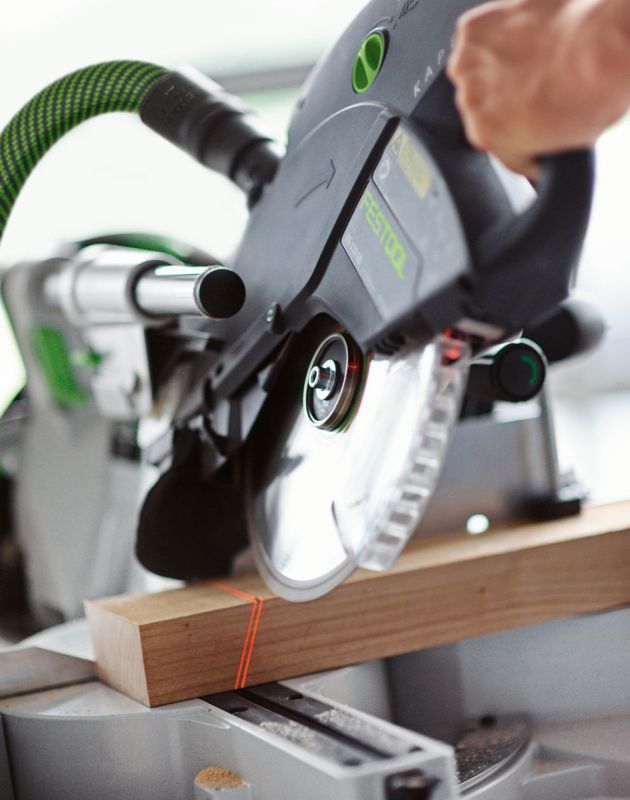

A double laser line precisely marks the saw cut.
Ribbing and high-quality cast magnesium increase rigidity while keeping weight to a minimum.
The special cutting position of the KS 120 allows you to cut strip material up to 120 mm vertically against the stop or cut coving and cornices in their "original wall position".
Variable speed preselection, smooth start-up, overload protection and also with integrated quick-acting brake.
Always optimally prepared with FastFix for simple and quick replacement of the saw blade.
Fine adjustment for setting the saw blade angle accurate to the millimetre. As with all important control elements, it can be adjusted quickly and conveniently from the front of the machine.
With ergonomic hand grips for left-handed and right-handed users, cord holder, transport safety device, clamp and an extremely compact, lightweight design.
Extraction system and chip deflector funnel extract the chips from where they are produced.
The bevel for rapid measurement of interior and exterior corners and subsequent simple and precise transfer to the saw

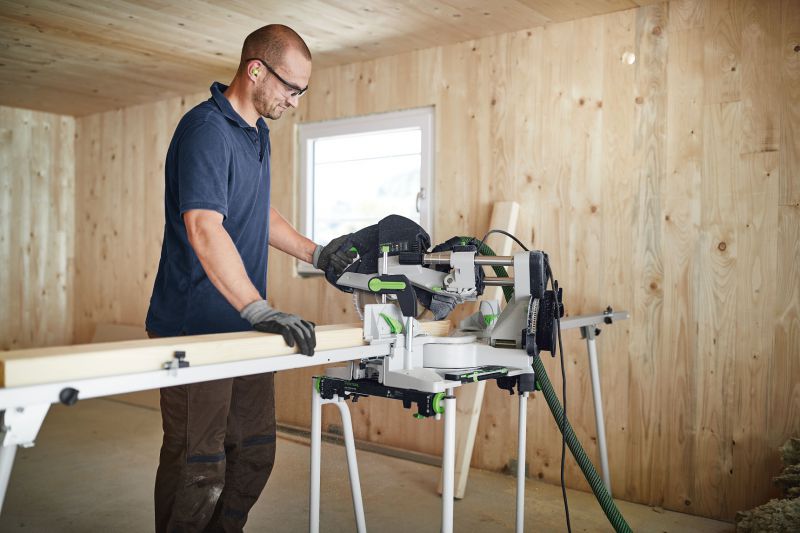

The base frame turns the KAPEX into a mobile unit that can be converted into a sawing station in three hand movements. With a trimming length of 2.40 m (including trimming attachment).
The KAPEX fits perfectly on the perforated top of the MFT 3 Kapex. It is secured in place using the clamping kit.
The extension table, which can be pulled out separately, provides reliable and accurate support for long workpieces as well.
