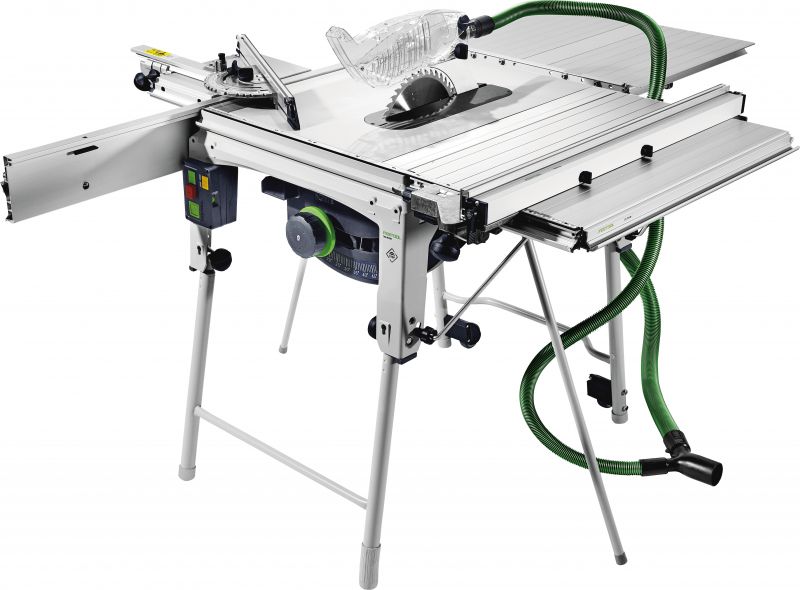

Festool 575831 Bench Mounted Table Saw TKS 80 EBS-Set with Extension Tables 240V

Festool Table saw - TKS 80 EBS - Set 240V - (Ref: 575831)



Your fingers - invaluable!

Every year approximately 4,000 people are injured on circular saws, corresponding to 16 injuries per working day. Around 26% of serious accidents even result in an accident pension (German Social Accident Insurance (DGUV) statistics ‘Accidents at work 2017). With the new Festool TKS 80 table saw, the risk of most serious cutting injuries during sawing is reduced. While you concentrate on your work, we protect your most valuable tools – your fingers.

• Improved safety: Less risk for your fingers - The responsive sensor on the integrated SawStop AIM technology provides increased safety when sawing in non conductive materials.SawStop AIM technology can also be deactivated if necessary
• Flexible: 80mm cutting height, extendable work surface, stopper and angle stop enable flexible work, even with large workpieces
• Splinter free cuts: Fewer splinters on the upper surface of the material in mitre rip cuts by swivelling the saw blade to the left
• Protects your health: Dust extraction attachment with CLEANTEC extraction sleeve for dust free work and a free view of the workpiece
• Space saving: Tool garage attached on the side provides optimal storage space for saw blades, cartridges and push sticks

• Cross-cutting up to a width of 820 mm with sliding table, at a cutting depth of 20 mm
• Rip cutting up to a cutting height of 80 mm and a width of 600 mm with an extension table

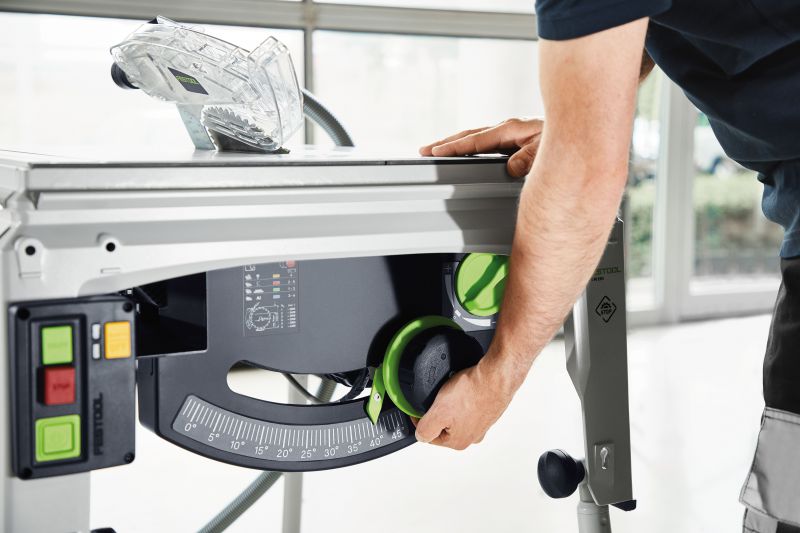

• Tilting saw blade for angled cuts between -2° and 47°

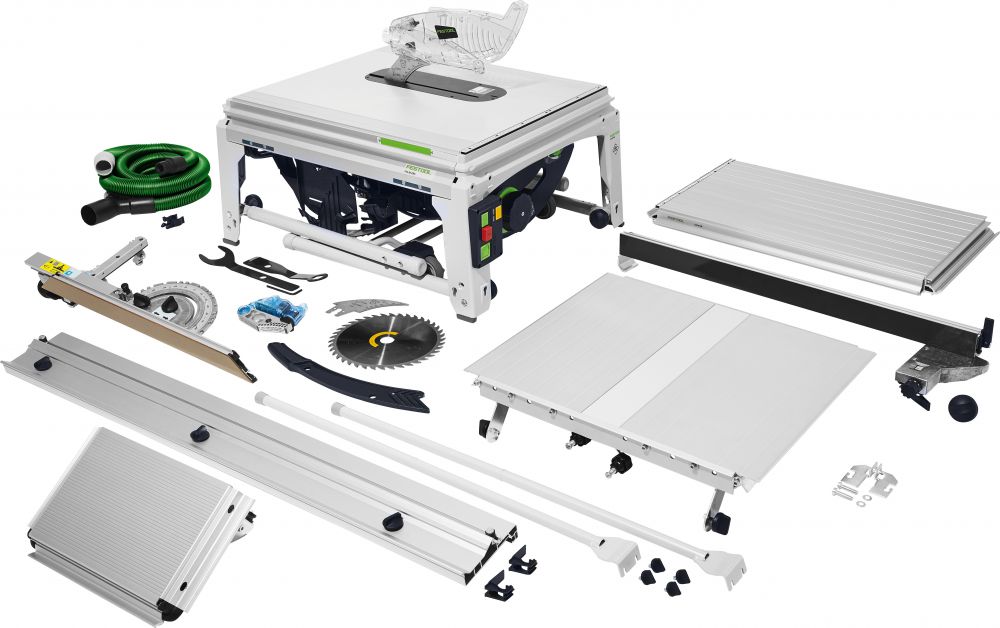

• Table saw TKS 80
• open ended spanner size 23
• open ended spanner size 50
• angle stop
• circular saw blade - wood universal HW 254x2, 4x30 W40
• dust extraction set
• extension table VB TKS 80
• guide extension VL TKS 80
• hex key WAF 5
• KT-TKS 80 cartridge
• LA TKS 80 stopper
• sliding table ST TKS 80
• workpiece holder

• Power consumption: 2 200 W
• Idle engine speed: 1700 - 3500 min⁻¹
• Saw blade diameter: 254.00 mm
• Cutting height 90°/45°: 80/56 mm
• Inclination: -2 / 47 °
• Table dimensions: 690 x 580 mm
• Table height, legs folded away: 385.00 mm
• Table height, legs unfolded: 900.00 mm
• Dust extraction connection dia.: 27/36 mm
• Weight: 48.00 kg
• Cable length: 4 m

• The risk of serious cutting injuries is reduced.
• If the saw blade comes into contact with the users skin, it is stopped within 5 milliseconds and disappears into the work surface.
• A cartridge releases a pretensioned spring and pushes an aluminium block into the saw blade. After being triggered, the cartridge is replaced in just a few steps.
• Flexible cutting height up to 80 mm for larger cross cuts.

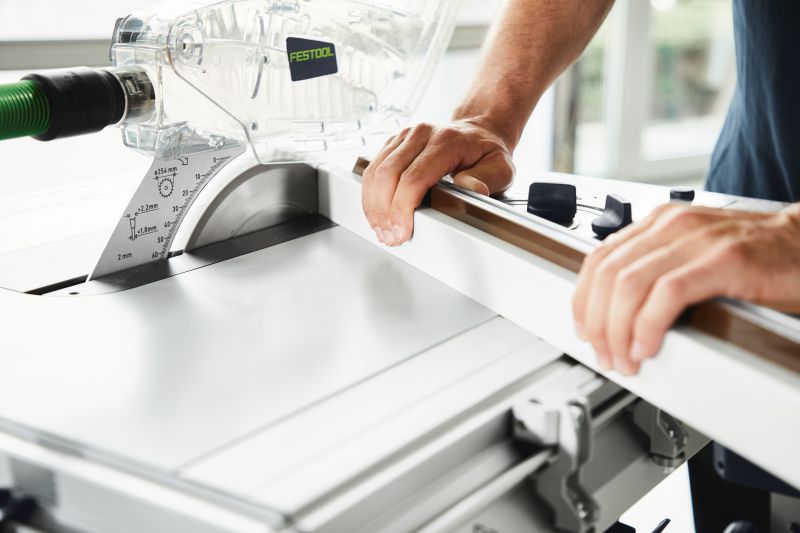

• Fewer splinters on the upper surface of the material in mitre rip cuts by swivelling the saw blade to the left. More space for your hands and a clear view of the workpiece.

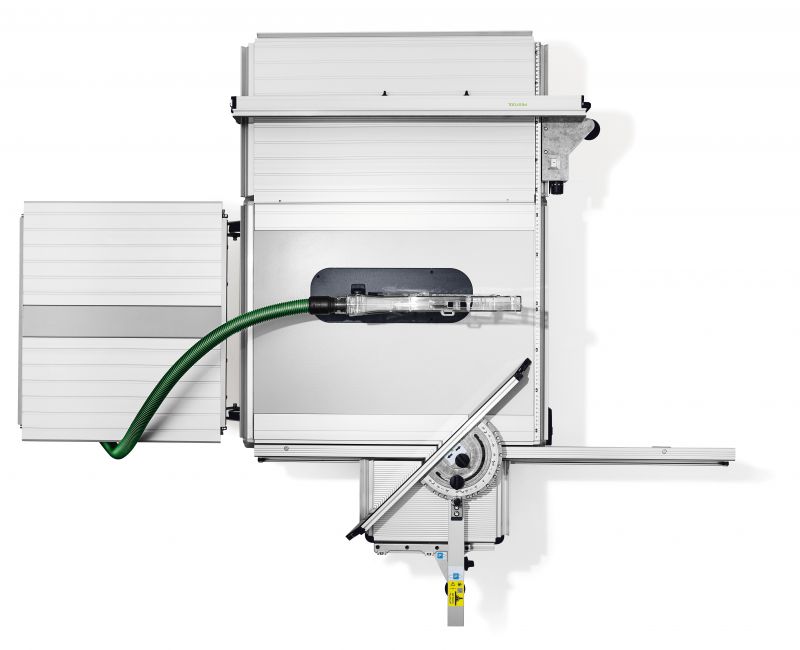

• Work surface can be extended in its length and width. Sliding table for cross-cutting up to 920 mm.
• SawStop AIM technology can, if necessary, be deactivated. This means that even conductive materials can be machined using the saw.
• With locking positions and fine adjuster, can also be used for cross cuts and rip cuts.
• Dust extraction attachment with CLEANTEC extraction sleeve ensures dust-free work and a free view of the workpiece.
