Festool 576422 DOMINO Joining Machine DF 500 Q-Set GB 240V - Replaces 574429
Product Code: FES/576422-PK
Brand: Festool
Several options are available for this product.
Please Choose Below
Festool 576422 DOMINO DF 500 Q-Set GB 240V Joining Machine
REPLACES FESTOOL DF 500 Q-SET ref 574429
MORE PRECISE JOINTS
Oval shape, larger glued area, more stability. The Festol DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
Strengths and benefits
- Patented routing principle unique to hand-held machines for accurate work with no kickbacks
- Stops that are quick and easy to adjust, for accurate results
- Rotation-proof joint with DOMINO dowels providing maximum stability
- System accessories compatible with both DOMINO jointers
- Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
Main areas of use
- Furniture manufacture
- Shopfitting/Interior fitting
- Window construction
- Exhibition stand construction
- For panel joins
- For frame and rack joints

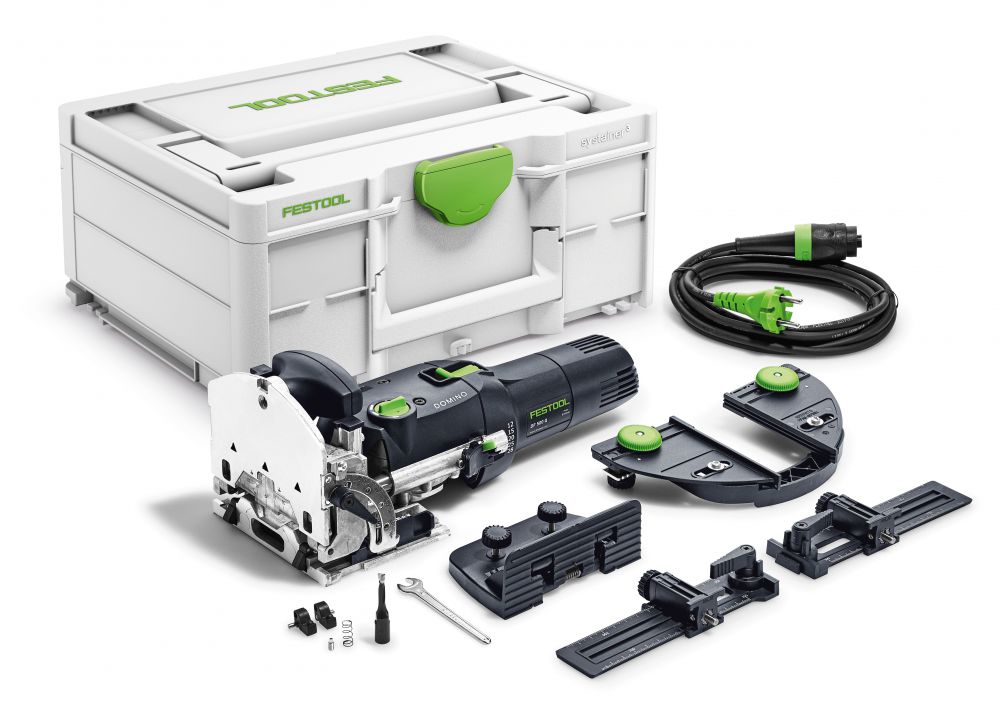

Items included
- Domino DF 500 Q
- Additional stop
- Cross stop
- DOMINO cutter D5
- Open ended spanner, WAF 8
- Systainer SYS3 M 187
- Trim stop
Technical details
- Power consumption: 420 W
- Idle engine speed: 25 500 min⁻¹
- Depth stop for routing depth: 12, 15, 20, 25, 28 mm
- Max. routing depth: 28.00 mm
- DOMINO slot cutter diameter: 4, 5, 6, 8, 10 mm
- Routing height adjustment: 5 - 30 mm
- Mitre routing: 0 - 90 °
- Dust extraction connection diameter: 27 mm
- Product weight: 3.20 kg
- Drive type: Mains
- Routing: Uncertainty (vibration) K: 1.50 m/s²
- Routing: Uncertainty (noise) K: 3.00 dB
- Routing: Total vibration average, Ah: 3.00 m/s²
- Routing: Standards series EN: 60745-2-19
- Routing: A-weighted sound pressure level, LpA: 84.00 dB(A)
- Routing: A-weighted sound power level, LWA: 95.00 dB(A)
Product Videos
Items Included
;)
1 X Festool 493487 Festool Trim stop LA-DF 500/700
;)
1 X Festool 498590 Festool Cross stop QA-DF 500/700
;)
1 X Festool 576415 DOMINO Joining Machine DF 500 Q-Plus GB 240V - Replaces 574327
