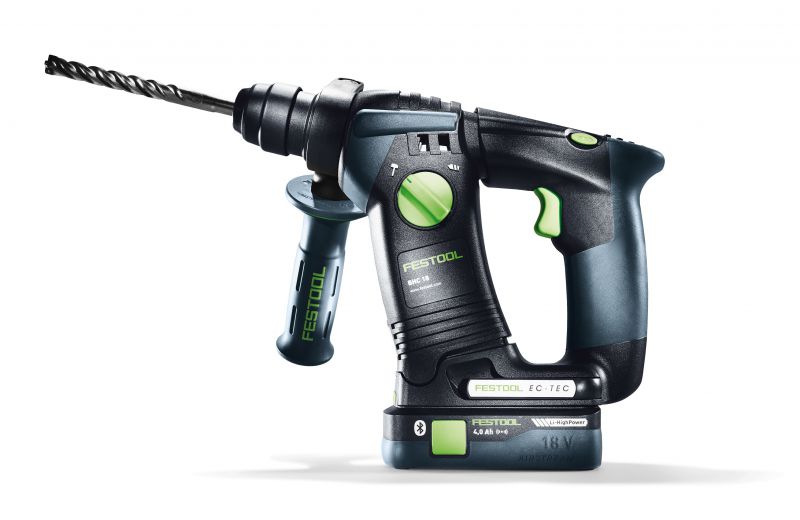

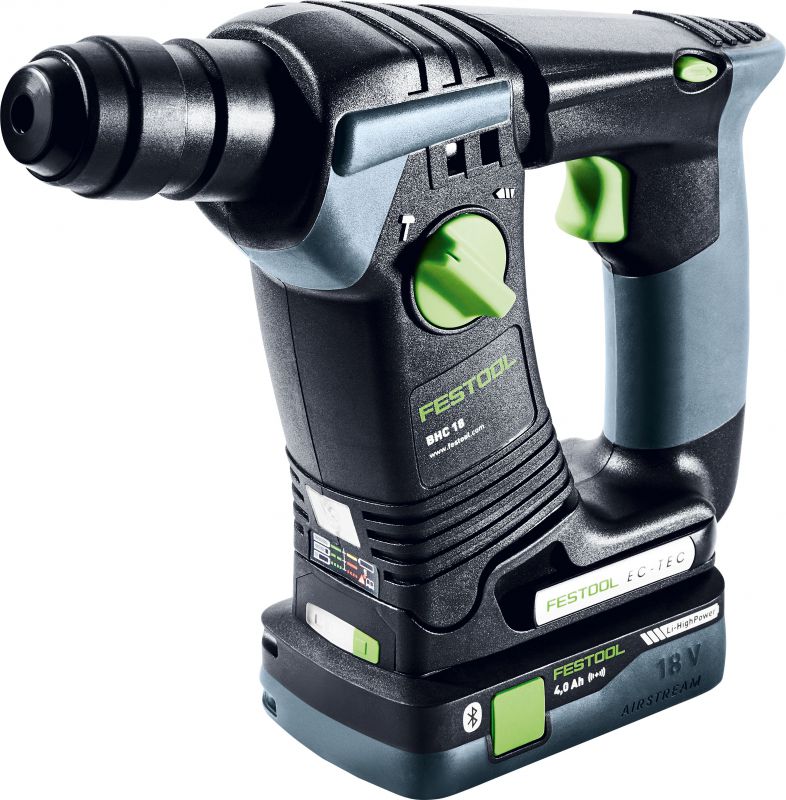

Festool 576514 Cordless Hammer Drill BHC 18 HPC 4,0 I-Plus

Festool 576514 Cordless Hammer Drill BHC 18 HPC 4,0 I-Plus - Set with 2 x Battery Packs and Charger

Compact powerhouse drilling with maximum performance.

With vibration damping, an ergonomic C-shape and weighing only 2.3 kg (incl. 3.1 Ah Li-HighPower Compact battery pack), the Festool BHC 18 cordless hammer drill combines maximum performance with low weight – for powerful and effortless drilling even in the hardest materials. The brushless EC-TEC motor requires no maintenance and makes it so robust and powerful. With extraordinarily high impact energy, the BHC 18 drills powerfully into concrete, stone and masonry. The integrated vibration damping prevents the impact energy from being transferred to your hands. For dust-free working with the drilling dust nozzle, the Bluetooth® battery pack conveniently starts a connected CLEANTEC mobile dust extractor automatically when switching on the tool.

• Lightweight, maximum performance: Thanks to the powerful EC-TEC motor and compact C-shape.
• Work effortlessly: Vibration damping absorbs the impact energy before it is transferred to your hands.
• Extremely robust: Brushless EC-TEC motor that requires no maintenance for a long service life.
• Individual battery power: For maximum ease of use for shorter and less demanding applications with the 3.1 Ah Compact battery pack Or for full power and endurance with the 4.0 Ah Li-HighPower Compact battery pack.
• Even without impact: Percussive shut-off system possible e.g. for spot-drilling tiles.
• Convenient extraction: The battery pack communicates via Bluetooth® with the Bluetooth® module of the CLEANTEC mobile dust extractor (can be retrofitted to the CT 26/36/48 as an accessory, directly integrated into the CT MINI I and MIDI I) and starts the mobile dust extractor automatically when the cordless tool is switched on.
• Powerful Li-High Power battery: Sufficient power for any task, yet 20% lighter and 50% more compact than a 5.2 Ah standard battery pack.
• Also extremely long-lasting: The Li-HighPower Compact batteries are extremely durable thanks to their high-current rechargeable cells.

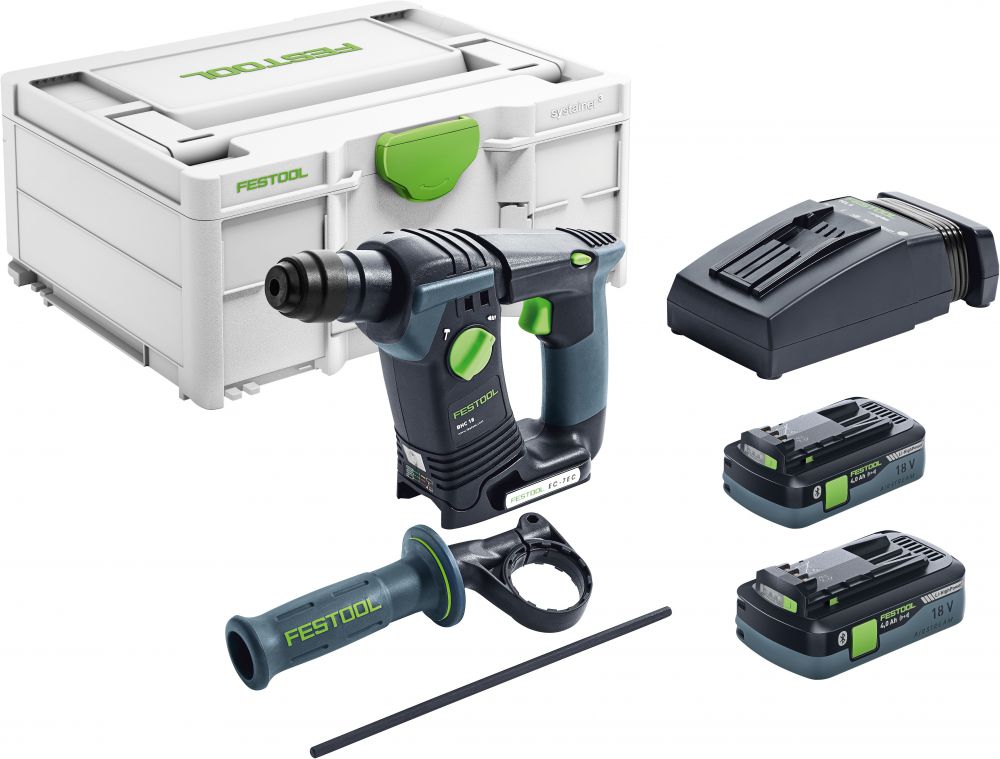

• Cordless hammer drill BHC 18
• 2 x BP 18 Li 4.0 HPC-ASI battery packs
• Rapid charger TCL 6
• Additional side-mounted hand grip
• Depth stop
• Systainer SYS3 M 187

• Work effortlessly, even overhead: The BHC offers an unbeatable power-weight ratio, outstanding ergonomics, a compact C-shape and balanced weight distribution.
• Protecting the joints: The vibration damping absorbs and cushions the impact energy before it is transferred to your hands. For a healthy working environment.
• Impact can be disabled: Ideal for drilling into tiles, for example.
• For precise working: Main switch with acceleration function for controllable power.
• Drill with pinpoint accuracy: The innovative SDS hammer drills enable precise positioning thanks to their sharp 90° centring point. The solid carbide head ensures an extremely long service life, especially when drilling into reinforced concrete.
• Depth stop: Can be fitted above the additional handle.
• LED lighting: Automatic light when operating the main switch for precision even in dark corners.

• Drilling holes with pneumatic stop for dowels up to 18 mm in concrete, stone and masonry.
• Weighing only 2.3 kg or 2.5 kg (incl. 3.1 Ah Compact battery pack or incl. 4.0 Ah Li-HighPower Compact battery pack) and with excellent balance, it is ideally suited for continuous use for interior fittings, assembly and securing thermal insulation composite systems.
• Drilling and fastening without hammer impact, such as spot drilling tiles.
• Electrical socket cutting up to Ø 68 mm in lime sand brick and masonry.
• Working with dust extraction – Bluetooth® battery pack automatically starts Bluetooth®-compatible mobile dust extractor in AUTO mode

• Drive type: Battery
• Battery voltage: 18 V
• Gears: 1
• Idle engine speed: 0 - 1100 min⁻¹
• Max. number of strokes: 4895 min⁻¹
• Drilling dia. (concrete): 18 mm
• Max. crown borer hole diameter: 68 mm
• Max. torque, wood/steel: 10/25 Nm
• Tool holder: SDS-Plus
• Single impact energy: 1.8 J
• Li-ion battery capacity: 4 Ah
• Weight with Li-ion: 2.5 kg
• Dimensions (L x W x H): 280 x 88 x 237 mm
