Festool 576680 Edge Sander ES-ETS 125 REQ-Plus 240V

Festool 576680 Edge Sander ES-ETS 125 REQ-Plus 240V

Every edge. Simple sanding.

How many hours have you spent toiling with a sanding block? How many edges have you already sanded through? How often have you had to replace an edge, losing valuable time? Every edge is different. Sometimes it is sawn or routed, sometimes it is coarse or painted. And you want to make all of them perfect. With the innovative solution by Festool, the edge sander, you can do this quickly and easily – from the first application.

• An edge sander for every edge: Whether sawn or routed, coarse or painted
• Machine sanding replaces manual sanding: 50% time savings for improved cost-effectiveness
• Full-surface support prevents tipping over and sanding through
• Adjustable sanding mode: Pull the lever and the flexible angle adjustment will be activated
• For sanding filled, painted and solid wood edges in fixed angular positions without any tipping
• Dust-free sanding using integral dust extraction with a dust bag or in conjunction with an extractor

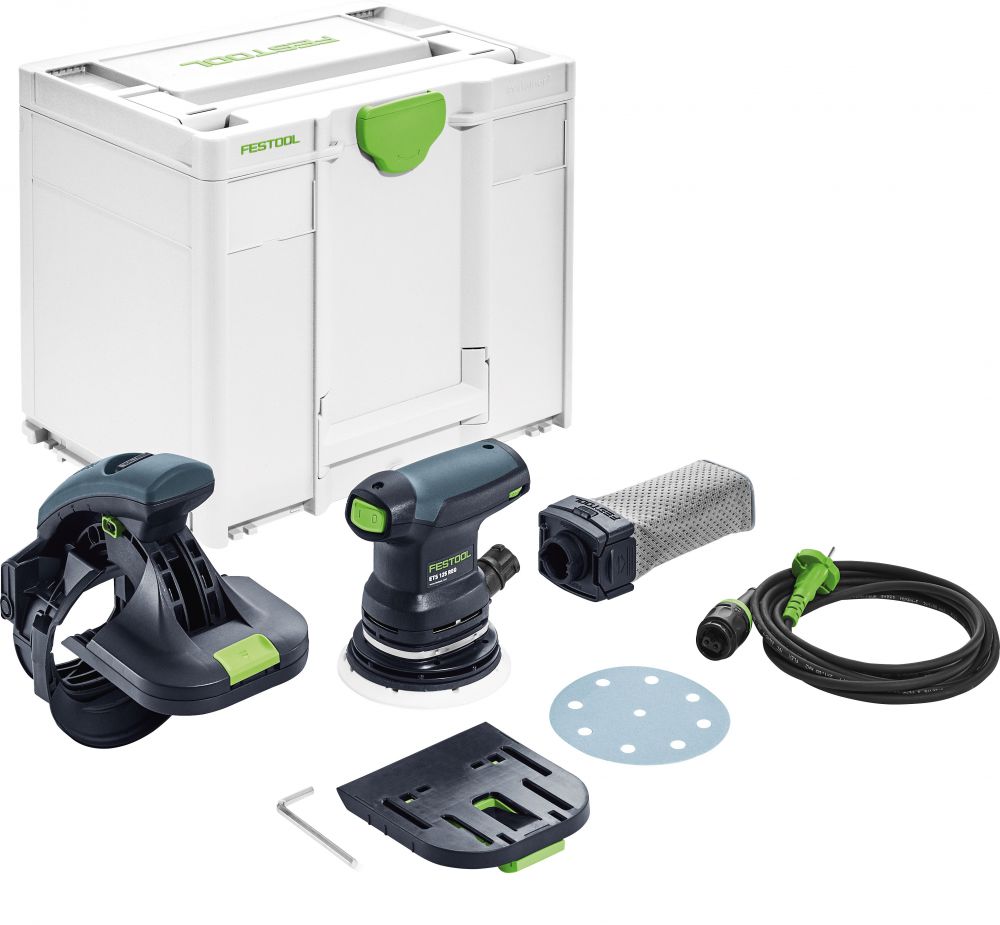

• Edge sander ES-ETS 240v
• AH-ES-ETS/ETSC positioning aid
• StickFix sanding pad Ø 125 mm (soft-HT)
• Long-life chip collection bag
• Plug it-power cable (4 m)
• Hex key, WAF 5
• Systainer SYS3 M 337

• Workpiece protection: It is easy and quick to replace the slideway lining on the crossheaded guide to match the surface. Velour linings for delicate surfaces, plastic lining for all other surfaces.
• Abrasive changing position: Sliding crossheaded guide makes it easy to change the abrasive.
• Adjustable sanding mode: In Hard mode (setting for pre-sanding), the edge is sanded according to the set angle. In Soft mode (setting for intermediate sanding), the edge sander adapts precisely to the surface to be sanded – this means that neither paint nor filler is sanded through.
• Angle adjustment: The angle adjustment, which does not require tools, can also be used to copy and lock free angles. The integrated angle display guarantees precision when setting angles manually.
• Wide range of applications. With the edge sander, you can effortlessly sand small and large workpieces, narrow and wide edges (5 – 60 mm), sloped surfaces (43 – 92°) and external curves on the outline (e.g. on a round dining table). You can work up to the inside corners.
• Dust-free work: Dust-free sanding is always possible thanks to the tool's integral dust extraction or when it is used in conjunction with an extractor.
• Easy to use: The edge sander is positioned on the full surface of the edge and thus ensures perfect sanding. No tipping over or sanding through – from the first application.
• Ergonomic work: The edge sander offers several grip options because every workpiece and every edge is different. So that you can always sand in a controlled manner.
• System compatibility: The edge sander can also be mounted on your ETS 125/ETSC 125 as an accessory.

• Furniture manufacture
• Edge finishing work
• For sanding sawn or planed wood edges and filled, or painted edges in fixed angular positions without any tipping

• Power consumption: 250 W
• Eccentric motion speed: 6 000 - 12 000 min⁻¹
• Sanding stroke: 2.00 mm
• Angle adjustment: 43 - 92 °
• Edge height: 5 - 60 mm
• Interchangeable sanding pad diameter: 125.00 mm
• Dust extraction connection diameter: 27 mm
• Cable length: 4m
• Product weight: 1.90 kg kg
• Drive type: Mains
