Festool 576820 Cordless Table Saw CSC SYS 50 EBI-Basic

X
Product Code: FES/576820
Brand: Festool
Several options are available for this product.
Please Choose Below
Festool
Festool 576820 Cordless Table Saw CSC SYS 50 EBI-Basic
Special Order Only - Delivery Minimum 12 weeks
£1,768.25
Inc. VAT

Festool 576820 Cordless Table Saw CSC SYS 50 EBI-Basic



Precise sawing to go. The cordless table saw in Systainer format.



Strengths and benefits

The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size. Make parallel cuts of up to 280 mm, cross-cut widths of up to 450 mm and angled cuts of -2° to 47°. The unique digital operation produces results with maximum precision, down to accuracies within a tenth of a millimetre. The 2x18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with mains-powered machines. Together with the UG-CSC-SYS underframe, you have the perfect worktable immediately on hand, and transport from the vehicle to the point of use thus succeeds effortless. The CSC SYS 50: Precise sawing to go.

  • Versatile: Parallel cuts up to 280 mm; cross cut width of up to 450 mm. Angled cuts from -2° to 47°.
  • Practical: At a cutting height of up to 35 mm, through to angled cuts right down to -10°; ideal for undercutting infill panels.
  • Compact and mobile: Can be transported with one hand in the practical Systainer format. Even lighter with the UG-CSC-SYS underframe.
  • Extreme precision: The height and angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimetre.
  • Reproduce cuts easily: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Reproducible cuts are ensured.
  • Convenient: Four saw blade positions can be saved and selected via the digital display.
  • Highly precise parallel side fence: Robust parallel side fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results.
  • Highly precise angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the slide. For mitre angles between -70° and +70°
  • Absolutely judder-free: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
  • Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing progress and perfect cutting results
  • Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long operating performance
  • Long-lasting: The brushless EC-TEC motor is long-lasting, robust and maintenance-free
  • Work appropriately for the material: With saw blades for every material; speeds appropriate for the material can be preselected via the digital display
  • Dust-free: Chip collection bag for dust-free work, even without a mobile dust extractor
  • Healthy working with a system: Ideal also in combination with the Festool cordless extractors
  • Compatible: Fits together with the entire Festool Systainer system and bott vehicle equipment
  • Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
  • Unique: Three-year warranty for battery packs and chargers too



Applications

  • Cross-cuts up to 450 mm wide, quick and precise with the integrated slide
  • Rip cutting up to a cutting height of 48 mm and a width of 280 mm with a secure support on the integrated fold-out table
  • Angled cuts from -10° to 47° thanks to tilting saw blade
  • Exact height and angle adjustment by means of electric stepper motors. Can be set precisely to 0.1 mm and controllable via a display
  • Transport practically in the handy Systainer format

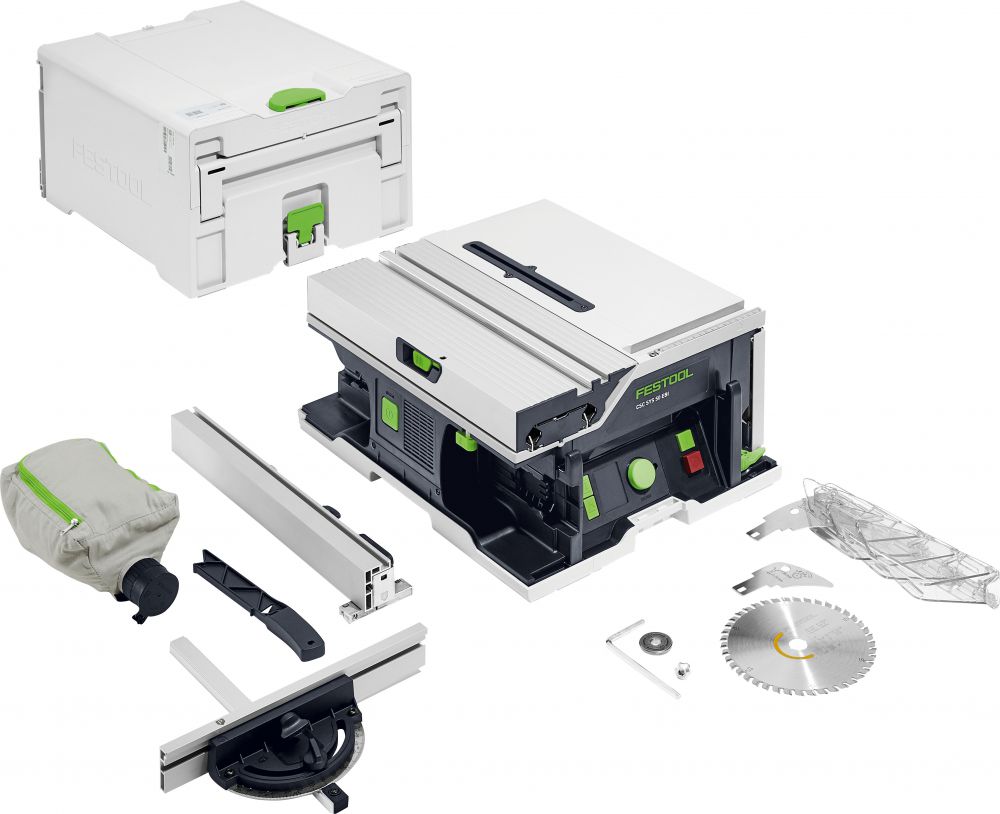

Items included

  • Cordless table saw CSC SYS 50
  • Chip collection sack
  • Operation tool
  • Parallel side fence
  • Preset profile setting rail
  • Splitting wedge for concealed cuts
  • Splitting wedge with protective hood
  • Wood fine cut HW 168 x 1.8 x 20 WD42 Circular saw blade
  • Workpiece holder
  • Batteries and charger NOT included



Key Features

  • Parallel cuts up to 280 mm: The folding table ensures compact dimensions during transport and a precise, stable support for workpieces of up to 280 mm when sawing.
  • Cross-cuts up to 450 mm: An impressive cross-cut width of up to 450 mm is possible.
  • Angled cuts from -2° to 47°: Angled cuts from -2° to 47°; at a cutting height of up to 35 mm, even down to -10°.
  • Mitre angles from -70° to +70°: The angle can be optimally adjusted via the exact scale; predefined catches also make selecting the most important angles easier.
  • Made for interior finishing: With a guaranteed cutting height of 48 mm, all applications typical in interior finishing can be carried out.
  • More precise than any yardstick: The desired sawing height and angles are accurately entered to within 0.1 mm via the digital display and the dial. This adjusts the saw blade automatically.
  • Speaks your language: The display can be set to your local language.
  • Systainer: Transport and protection; The Systainer hood is easily placed over the cordless table saw, allowing easy transportation and protection.
  • Efficiently stored: Saw blades, a spacer wedge and a dust collection bag are securely stored and always available in the lid of the Systainer. Even a preset profile setting rail and parallel side fence find space here.
  • Ideal for grooves: Uncomplicated spacer wedge changes – for hidden cuts and rebates. The spacer wedge with guard is reinstalled instantly to ensure safe working (both among the items included).
  • Rapid changes: The saw blade is changed quickly and without complications.
  • Fixing securely: Workpieces can be securely clamped with the Festool clamp clips (FSZ) via a groove in the slide (accessory, not among the items included).



Technical details

  • Battery voltage: 2 x 18 V
  • Idle engine speed: 4 500 – 6 800 min⁻¹
  • Saw blade location hole: 20.00 mm
  • Inclination angle: -10 - +47 °
  • Cutting height 0°: 0 - 48 mm
  • Cutting height 45°: 0 - 34 mm
  • Cutting height -10°: 21 - 32 mm
  • Mitre angle: 0 - 70 °
  • Parallel cut width: 280.00 mm
  • Tabletop height: 280.00 mm
  • Dimensions (L x W x H): 512 x 396 x 296 mm
  • Dust extraction connection diameter: 27/36 mm
  • Drive type: Battery
  • Product weight: 15.00 kg



Festool Cordless Table Saw CSC SYS 50 Operating Manual
