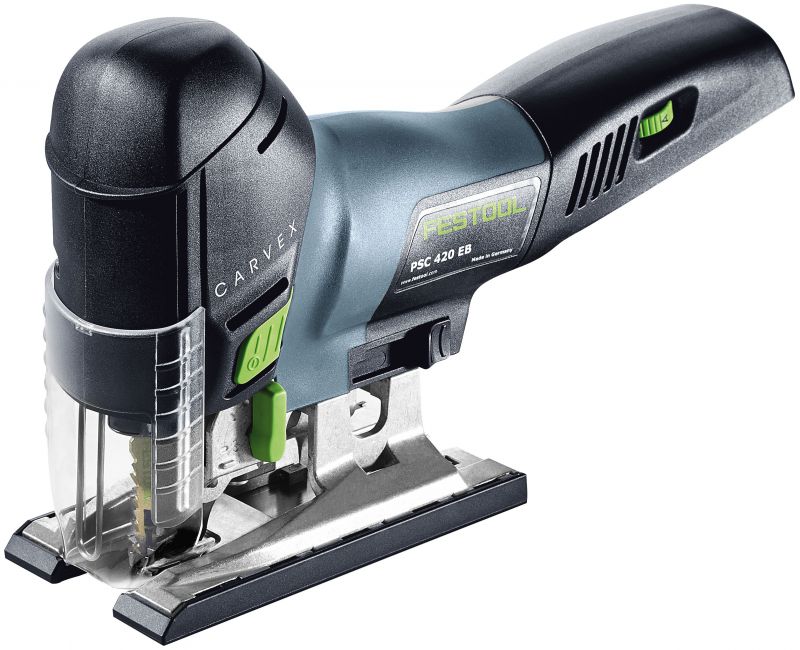

Festool 577236 Cordless Pendulum Jigsaw CARVEX PSC 420 EB-Basic

Festool 577236 Cordless Pendulum Jigsaw CARVEX PSC 420 EB-Basic

Replaces item 576521

For perfect handling at any radius.

With the Festool CARVEX PSC 420 cordless pendulum jigsaw, even tight curves feel like straight lines. With 3800 strokes per minute, the high-performance, energy-efficient EC-TEC motor gives you powerful, fast sawing progress every time. Always guaranteed: Utmost precision thanks to the specially developed hammer guide and the guidance jaws featuring parallel adjustment. They act as a third guide to keep the saw blade on track with no compromises. The fact that top performance does not merely relate to sawing results is also shown by the ergonomic design of our cordless pendulum jigsaws, which enables you to work tirelessly for sustained periods. The Festool Bluetooth® battery packs ensure particularly convenient use of the Festool mobile dust extractor: In combination with a Bluetooth®-compatible Festool mobile dust extractor, they ensure that the extractor starts automatically in AUTO mode when the Festool cordless pendulum jigsaw is switched on.

• Excellent behaviour in curves thanks to threefold saw blade guide and rigid lifter rod
• Simple handling thanks to the softgrip and ergonomic design
• Electronic switch-on/off on both sides, reachable in every grip position
• Fast, tool-free changing of tables, baseplates and saw blades
• Easily visible scribe mark through stroboscope light and powerful extraction
• Powerful cutting stroke for rapid working progress
• Noticeably lighter at full power thanks to Li-HighPower battery pack with high-current-resistant battery cells
• Convenient dust extraction: The battery pack communicates via Bluetooth® with the Bluetooth® module of the CLEANTEC mobile dust extractor (can be retrofitted to the CT 26/36/48 as an accessory, directly integrated into the CT MINI I and MIDI I) and starts the mobile dust extractor automatically when the CARVEX is switched on
• The cordless pendulum jigsaw in a Festool Systainer³ can also be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site. Systainer³ products are compatible with one another and can be connected to all previous Systainer generations, mobile dust extractors and many other system accessories, such as roll boards or the mobile workshop

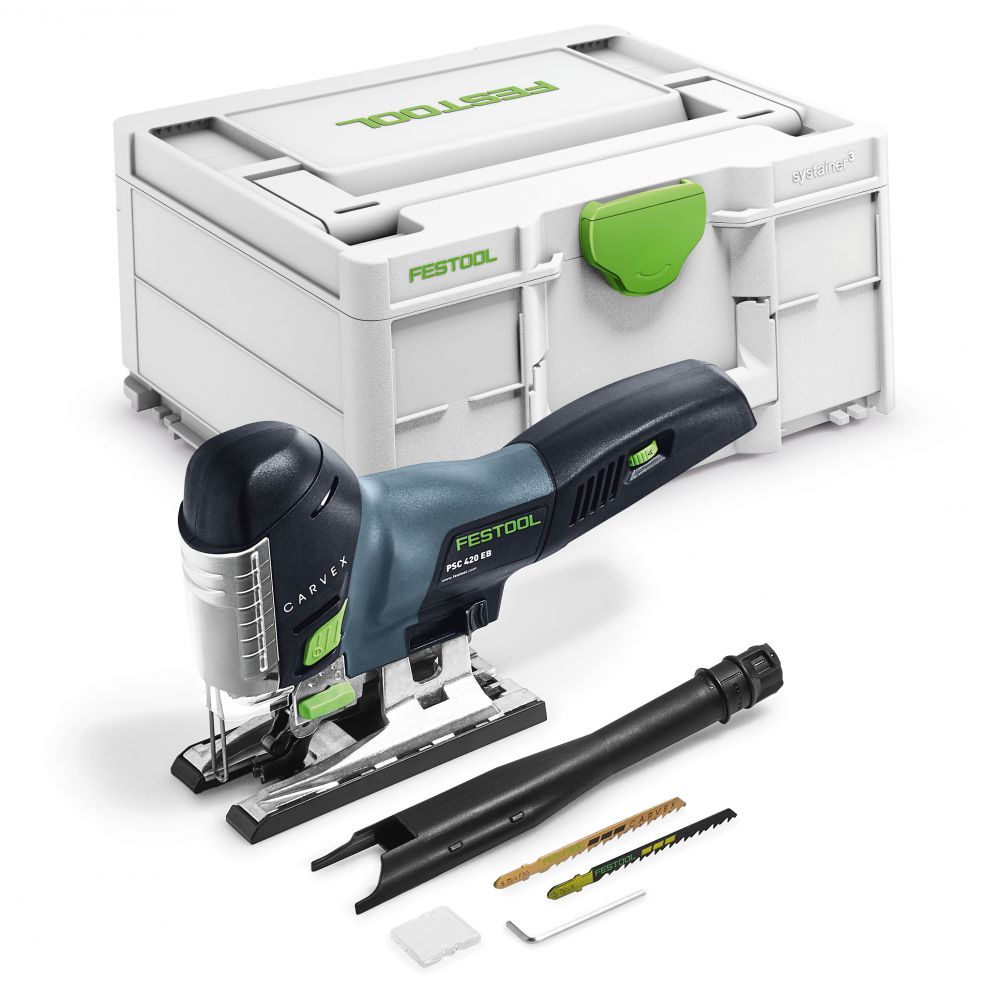

• Cordless pendulum jigsaw PSC 420 EB
• Jigsaw blade - Wood Fine Cut S 75/2.5
• Jigsaw blade - Wood Universal S 75/4 FSG
• Splinterguard
• Systainer SYS3 M 187
• Battery and Charger NOT included

• Optimum handling and operation: With a weight of only 2.3 kg, a slim, ergonomic design, non-slip soft-grip coating and on/off switches mounted on both sides (also centrally on stirrup handle version) for right-handed and left-handed operation.
• Perfect combination of power and flexibility: The perfect combination of powerful torque and ideal curve handling. With its cutting performance matching the cabled versions,the Festool CARVEX is long-lasting and measurably superior to other cordless saws.
• Powerful: 3800 strokes per minute generate considerable torque – supported by the brushless, maintenance-free EC-TEC motor.
• Precision cutting along the scribe mark: The stroboscopic light brings the saw blade to a visible stop, while dust extraction and the blowing function of the Festool CARVEX keep the view of the scribe mark free.
• Perfectly straight accurate cuts: The lifting rod guide and parallel adjustable carbide jaws act as a third saw blade guide to ensure straight precision cuts.
• Accurate circular cut outs: Even the smallest circles (radii of 34 mm to 1.5 m) are easy to produce with the core maker and compatible jigsaw blade, e.g. the S 75/4 K.
• Guaranteed precision: Mitre cuts and undercuts of 0 to 45° are made with the quick-change angle table.
• Changing saw blades without using tools: Adapting to the working material is worth it because the results are more accurate and the saw blades last much longer. The Festool system is therefore designed to reduce set-up times, e.g. with single-handed saw blade changing.
• Sophisticated design: The lowerable dust-extraction attachment for the CARVEX PS 420 jigsaws improves suction power and therefore your view as you cut.

• Cut-outs for sinks and kitchen hobs
• Trimming work on furniture, kitchens, for interior fitting
• Cutting circles and curves
• Coping end strips
• Cutting workpieces to length
• Edge notching on beams
• Cutting from below

• Battery voltage: 18 V
• Stroke rate: 1 500 - 3 800 min⁻¹
• Pendulum cover adjustment in stages: 4.00
• Cutting depth in wood: 120.00 mm
• Cutting depth in NF metals: 20.00 mm
• Cutting depth in steel (soft): 10.00 mm
• Product weight: 1.70kg
• Drive type: Battery
