Precise sawing to go. The cordless table saw in Systainer format.

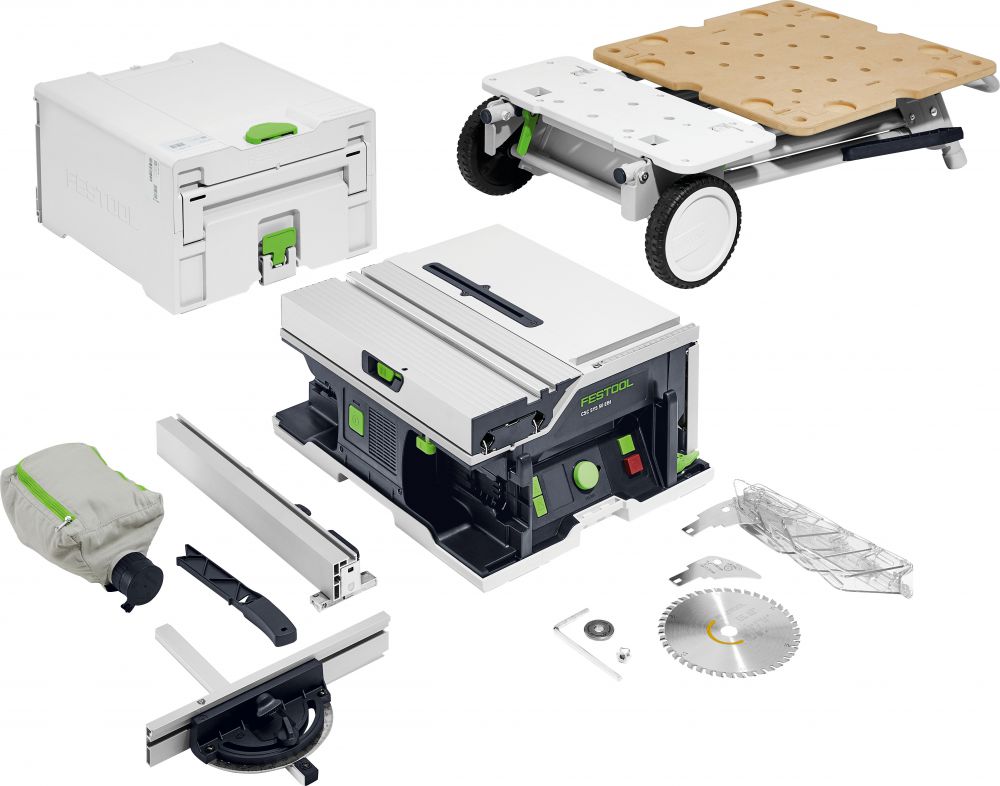

Items included
Cordless table saw CSC SYS 50
Chip collection sack
Operation tool
Parallel side fence
Preset profile setting rail
Splitting wedge for concealed cuts
Splitting wedge with protective hood
Wood fine cut HW 168 x 1.8 x 20 WD42 Circular saw blade
Workpiece holder
PLUS UG-CSC-SYS underframe
Batteries and charger NOT included
Festool Cordless Table Saw CSC SYS 50 EBI
Strengths and benefits
The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size. Make parallel cuts of up to 280 mm, cross-cut widths of up to 450 mm and angled cuts of -2° to 47°. The unique digital operation produces results with maximum precision, down to accuracies within a tenth of a millimetre. The 2x18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with mains-powered machines. Together with the UG-CSC-SYS underframe, you have the perfect worktable immediately on hand, and transport from the vehicle to the point of use thus succeeds effortless. The CSC SYS 50: Precise sawing to go.
Versatile: Parallel cuts up to 280 mm; cross cut width of up to 450 mm. Angled cuts from -2° to 47°.
Practical: At a cutting height of up to 35 mm, through to angled cuts right down to -10°; ideal for undercutting infill panels.
Compact and mobile: Can be transported with one hand in the practical Systainer format. Even lighter with the UG-CSC-SYS underframe.
Extreme precision: The height and angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimetre.
Reproduce cuts easily: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Reproducible cuts are ensured.
Convenient: Four saw blade positions can be saved and selected via the digital display.
Highly precise parallel side fence: Robust parallel side fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results.
Highly precise angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the slide. For mitre angles between -70° and +70°
Absolutely judder-free: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing progress and perfect cutting results
Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long operating performance
Long-lasting: The brushless EC-TEC motor is long-lasting, robust and maintenance-free
Work appropriately for the material: With saw blades for every material; speeds appropriate for the material can be preselected via the digital display
Dust-free: Chip collection bag for dust-free work, even without a mobile dust extractor
Healthy working with a system: Ideal also in combination with the Festool cordless extractors
Compatible: Fits together with the entire Festool Systainer system and bott vehicle equipment
Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
Unique: Three-year warranty for battery packs and chargers too
Applications
Cross-cuts up to 450 mm wide, quick and precise with the integrated slide
Rip cutting up to a cutting height of 48 mm and a width of 280 mm with a secure support on the integrated fold-out table
Angled cuts from -10° to 47° thanks to tilting saw blade
Exact height and angle adjustment by means of electric stepper motors. Can be set precisely to 0.1 mm and controllable via a display
Transport practically in the handy Systainer format
Key Features
Parallel cuts up to 280 mm: The folding table ensures compact dimensions during transport and a precise, stable support for workpieces of up to 280 mm when sawing.
Cross-cuts up to 450 mm: An impressive cross-cut width of up to 450 mm is possible.
Angled cuts from -2° to 47°: Angled cuts from -2° to 47°; at a cutting height of up to 35 mm, even down to -10°.
Mitre angles from -70° to +70°: The angle can be optimally adjusted via the exact scale; predefined catches also make selecting the most important angles easier.
Made for interior finishing: With a guaranteed cutting height of 48 mm, all applications typical in interior finishing can be carried out.
More precise than any yardstick: The desired sawing height and angles are accurately entered to within 0.1 mm via the digital display and the dial. This adjusts the saw blade automatically.
Speaks your language: The display can be set to your local language.
Systainer: Transport and protection; The Systainer hood is easily placed over the cordless table saw, allowing easy transportation and protection.
Efficiently stored: Saw blades, a spacer wedge and a dust collection bag are securely stored and always available in the lid of the Systainer. Even a preset profile setting rail and parallel side fence find space here.
Ideal for grooves: Uncomplicated spacer wedge changes – for hidden cuts and rebates. The spacer wedge with guard is reinstalled instantly to ensure safe working (both among the items included).
Rapid changes: The saw blade is changed quickly and without complications.
Fixing securely: Workpieces can be securely clamped with the Festool clamp clips (FSZ) via a groove in the slide (accessory, not among the items included).

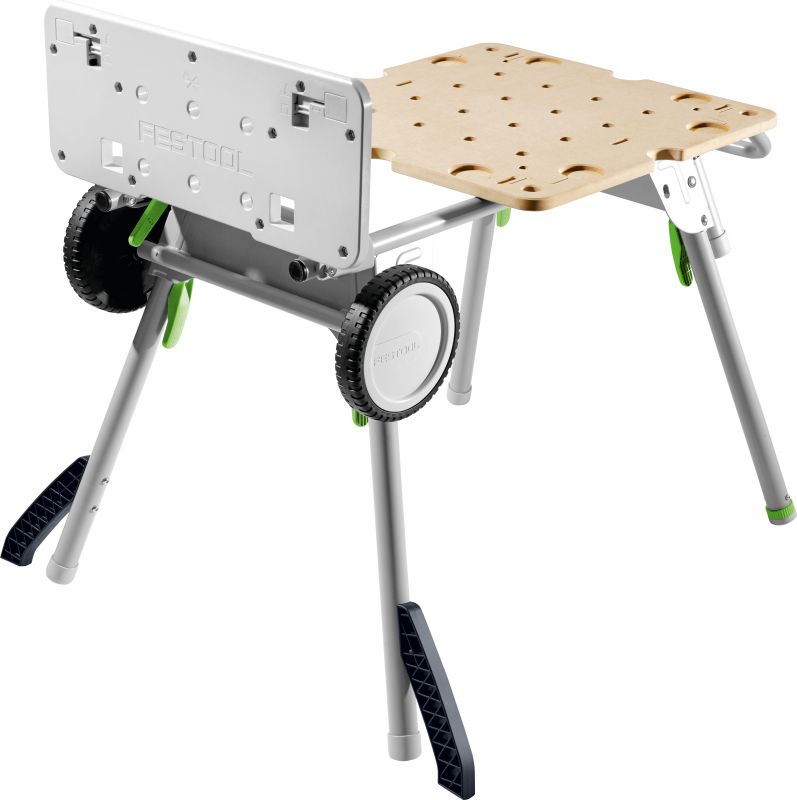

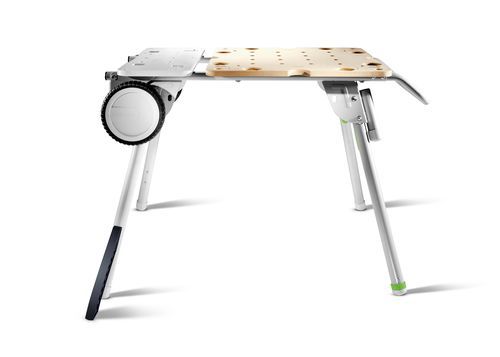

Transport easily. Work conveniently. Ideal in combination with the CSC SYS 50 cordless table saw.
Key Features
The UG-CSC-SYS underframe is the ideal 3-in-1 solution for your assembly jobs. It acts as a hand cart for transport from the vehicle to the point of use – allowing you to easily roll an entire tower of Systainers of up to 80 kg to the construction site. The foldaway legs are folded out in an instant, giving you a worktable of 58 x 58 cm in size; a practical alternative to trestles. Workpieces are securely clamped on the surface via the perforated top. However, the underframe demonstrates its full ability in combination with the CSC SYS 50 cordless table saw. This is securely positioned in the holes of the work space – and already you're working at an ergonomic height of 90 cm. The legs simply remain folded in when using the CSC SYS 50 cordless table saw close to the ground, e.g. when laying a floor. The "shovel" that just served as a transport surface for the Systainers is now set up as an ideal support for long workpieces for all rip cuts, cross cuts and angled cuts.
Versatile: Transport aid, worktable and underframe for the CSC SYS 50 cordless table saw in one
Resilient: Transport a Systainer tower up to 80 kg. The Systainers engage securely on the base plate. Additional fixing possible with a lashing strap
Saves space: Folded together, the underframe takes up barely any space in the vehicle
Practical: The foldaway legs are folded out in an instant. Unevenness in the floor is compensated for by a foot compensation on one of the foldaway legs
Stable support: The typical Festool hole pattern of the worktop allows secure clamping of workpieces with clamp clips and lever clamps
A perfect fit: The ideal combination with the CSC SYS 50 cordless table saw. Creates a working height of 90 cm, offers a stable support for long workpieces. The legs remain folded in when working close to the ground (working height 24.5 cm)
puts the CSC SYS 50 cordless table saw at a working height of 90 cm (with legs folded out)
Strengths and benefits

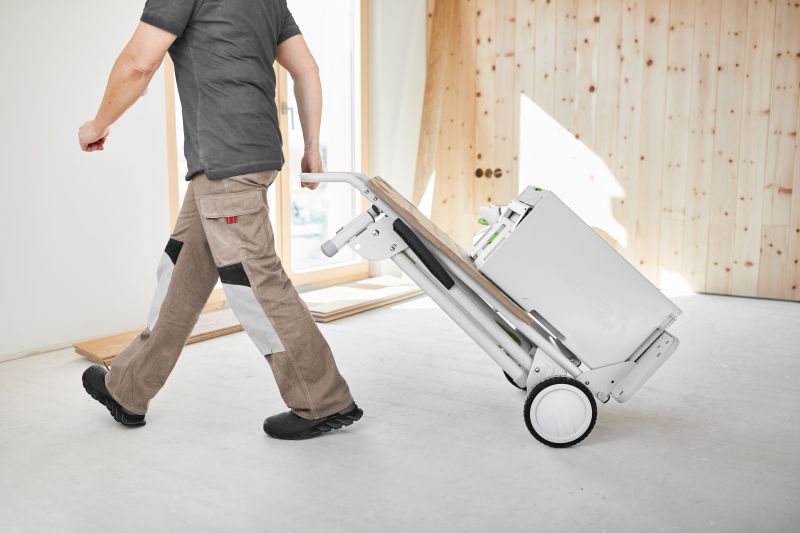

Made for mobility. Needs barely any space. In its role as a hand cart, it effortlessly transports not just the CSC SYS 50 cordless table saw but also all your Systainers to the point of use. This saves time, journeys and power. Folded together, it takes up barely any space in the vehicle – so you always have this clever assistant on board!

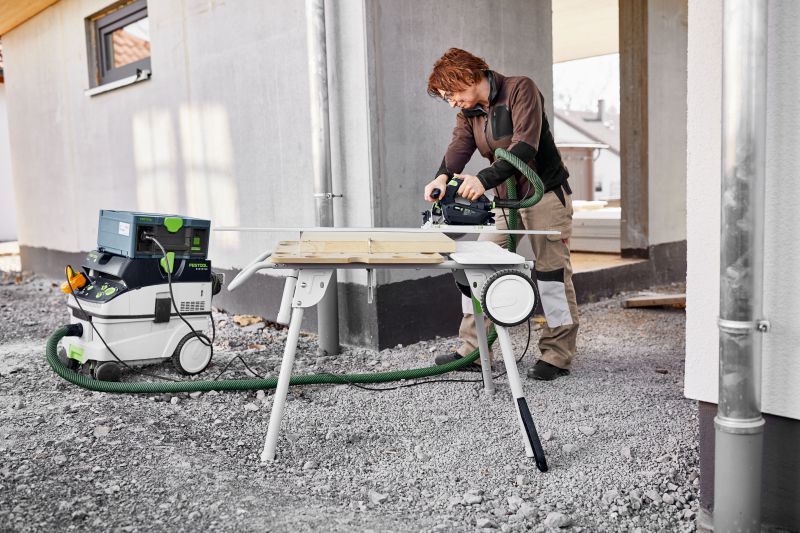

A worktable in an instant. A work space of 58 x 58 cm is available to you in an instant; quickly set up thanks to convenient foldaway legs. Workpieces can be securely clamped onto it using a perforated top and clamps. The UG-CSC-SYS underframe is thus an ideal alternative to trestles on the construction site.
The perfect pair: Underframe and CSC SYS 50 cordless table saw. The UG-CSC-SYS underframe is ideally tailored to use with the CSC SYS 50 cordless table saw. You position the CSC SYS 50 securely on the worktop via suitable holes – and raise it to an ergonomic working height of 90 cm. The "shovel" of the underframe offers a secure contact surface for rip and cross-cuts (especially for long workpieces).
Applications
Ideal underframe for CSC SYS table saw installation
Suitable for transporting Systainers in the tower in its role as a hand cart, the blade bears 80 kg
Suitable as a mobile worktable with a load of 100 kg
Technical details
Table dimensions: 580 x 580 mm
Dimensions (L x W x H): 1 067 x 580 x 245 mm
Tabletop height: High working position: 677.00 mm
Tabletop height: Low working position: 245.00 mm
Load capacity as worktable/hand truck: 100 / 80 kg
