Festool 577392 Cordless Plunge-Cut Saw TSC 55 5,0 KEBI-Plus/XL-FS

X
Product Code: FES/577392-PK
Brand: Festool
Several options are available for this product.
Please Choose Below
Festool
Festool 577392 Cordless Plunge-Cut Saw TSC 55 5,0 KEBI-Plus/XL-FS
Low Stock - Please Call For Availability
£944.90
Inc. VAT

Festool 577392 Cordless Plunge-Cut Saw TSC 55 5,0 KEBI-Plus/XL-FS

Includes 2 x Battery Packs, Duo Charger and Guide Rail

Replaces item 577007



Our masterpiece. Decisively improved. Now with unique kickback stop.

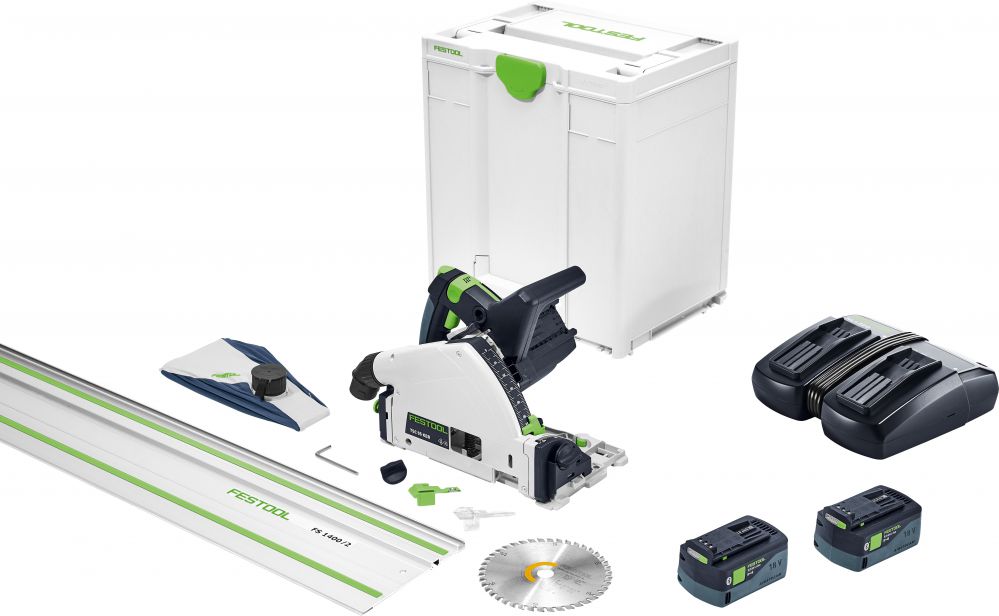

Items included

  • Cordless Plunge Cut Saw TSC 55 KEB
  • 2 x BP 18 Li 5.0 ASI battery packs
  • TCL 6 DUO rapid charger
  • Chip collection bag
  • Circular saw blade - Wood Fine Cut HW 160 x 1.8 x 20 WD42
  • Flag window, vision panel
  • Hex key, WAF 5
  • Splinterguard
  • Systainer SYS3 M 437
  • PLUS guide rail FS 1400/2




Festool Cordless Plunge-Cut Saw TSC 55 5,0 KEB



Key Features

Often, even just a millisecond is crucial: The kickback is the most common cause of serious injuries when using a plunge-cut saw. Our unique kickback stop therefore stops the saw blade of our cordless plunge-cut saw in the blink of an eye, and so not only protects your workpiece but also minimises the risk of injury to your hands. In addition, this now allows users to make powerful, precise cuts at up to twice the speed with an extended battery range. When combined, our new generation of saw blades allows for maximum cutting performance and perfect cutting quality. The sawing system is rounded off with clever system accessories, such as guide rails, an angle stop, splinter guard and saw table.

  • The kickback stop reduces the risk of injury from kickback when sawing or plunging the tool into the workpiece
  • Concentrated torque and up to twice as fast work progress with an increased saw blade service life
  • Brushless EC-TEC motor combined with lithium-ion batteries for maximum cutting power
  • The kickback stop can be deactivated for individual cuts
  • Top-class sawing system thanks to a variety of accessories



Strengths and benefits

  • Improved safety thanks to the kickback stop: The integrated kickback stop reduces the risk of injury from kickback when sawing or plunging the tool into the workpiece. Once the saw has been triggered, it is ready for immediate use without having to replace any parts or additional costs.
  • Exceptional torque: The concentrated torque of our plunge-cut saw enables work progress at up to twice the speed with an increased saw blade service life. Our new generation of saw blades impresses users when combined with maximum cutting performance and perfect cutting quality.
  • Greater power and endurance: The lithium-ion batteries and the brushless EC-TEC motor with maximum efficiency provide maximum cutting performance and exceptional durability.
  • Low dust mobile working: We have two ways of protecting health: Whether with a dust collection bag or an extractor with Bluetooth® automatic switch-on – the Festool extraction system ensures virtually dust-free work.
  • Flexible use by switching the kickback stop: The kickback stop can be manually deactivated, for example when working without a guide rail on uneven material. The advantage: The kickback stop is automatically reactivated the next time the saw is switched on.
  • Precise and healthy working with a system: Combined with our guide rails, a wide range of saw blades, the adapted extraction system, saw table, angle stop and splinter guard, we offer a top-class sawing system.
  • Perfect cuts reduce the need for re-working: With the clip-on splinter guard in combination with the guide rail, it is even possible to saw on both sides without virtually any splinters.
  • Best orientation for plunge cuts: Transparent sliding viewing window and the additional markings for the starting and end point provide a good view of the saw blade.
  • The angles 0° and 45° can be selected directly using the locking positions. Undercuts are also possible with the extended adjustment option from -1° to 47°.
  • Exact cuts, even at an angle: The TSC 55 enables precise work. The cutting edge from 90° to 47° remains unchanged even when the saw swivels.
  • Maximum flexibility: The slimline housing allows users to make cuts up to the edges and in close proximity to the wall (12 mm).
  • FastFix saw blade changing system: Always adapted to the working material. The FastFix spindle stop makes it extremely easy to change the saw blade. The correct saw blade is fitted in just a few steps and the sawing speed is adapted to the material.
  • Exact depth setting: Easy to read and adjust: The dual cutting depth scale for working with or without a guide rail. Now even easier thanks to extra-large font and precision adjustment.
  • Our fitted control electronics enable speed control for temperature monitoring, a quick-acting brake and perfect adaptation to the material.
  • The dual battery system with flexible configuration options for using one (at least 18 V) or two battery packs (max. 36 V). For maximum power or minimum weight.



Applications

  • Precise circular in materials up to 55 mm thick
  • Cutting interior doors to length using guide rail and circular saw
  • Cutting recesses in doors and kitchen worktops
  • Manufacturing expansion joints in parquet flooring and false joints
  • Cutting chipboard to size



Technical details

  • Battery voltage: 2 x 18 V
  • Idle engine speed: 2650 - 3800/5200 min⁻¹
  • Saw blade diameter: 160.00 mm
  • Angular range: -1 - 47 °
  • Cutting depth: 0 - 55 mm
  • Cutting depth 45°: 43 mm
  • Dust extraction connection diameter: 27/36 mm
  • Product weight: 3.60 kg
  • Drive type: Battery



Festool TSC 55 Owners Manual




Festool FS 1400/2 Guide Rail - 1400mm Plunge Saw Guide Rail



Key Features

  • Impeccable Guidance
  • Invented and perfected by Festool: The guide rail. For making cuts and grooves with impressive precision. With slideway lining for guaranteed machine smoothness, a groove for screw and lever clamps and splinter guard for splinter-free sawing. Making breakthroughs in precision and convenience since 1964. The original is available in eight different lengths from 800 to 5000 mm.



Strengths and benefits

  • Runs as if lubricated due to the slideway lining
  • Safe Limit due to the kickback stop accessory that can be attached
  • Precise angles can be cut in conjunction with the combination bevel accessory
  • Perfectly straight cuts when used alongside a festool jigsaw
  • Exact grooves when using the router guide rail adapter
  • Zero play can be achieved with no tool adjustment of the saw guidance jaws
  • A firm hold due to the cushion strips on the rear of the rail
  • No splinters with a well positioned splinter guard
  • Easily connected to extend the rail capacity
  • No getting hoses and cables caught up with the rail deflector attached



Main areas of use

  • Safe, perfectly straight power tool guidance
  • Splinterguard for splinter-free sawing
  • Can be properly positioned even on smooth materials because of the backing layer for gripping
  • Protects the workpiece surface from being damaged
  • Additional groove for use with accessories permits additional applications
  • Coating for smooth running on the machine



Specification

  • Length: 1400mm
Product Videos
