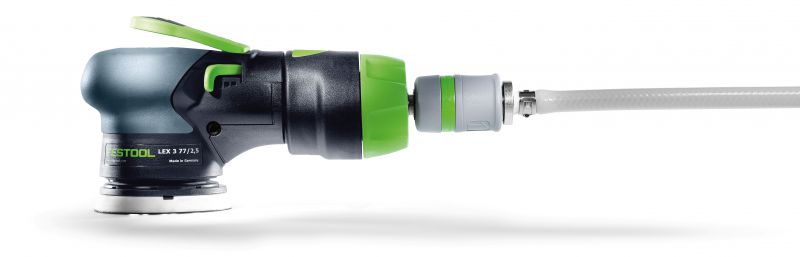

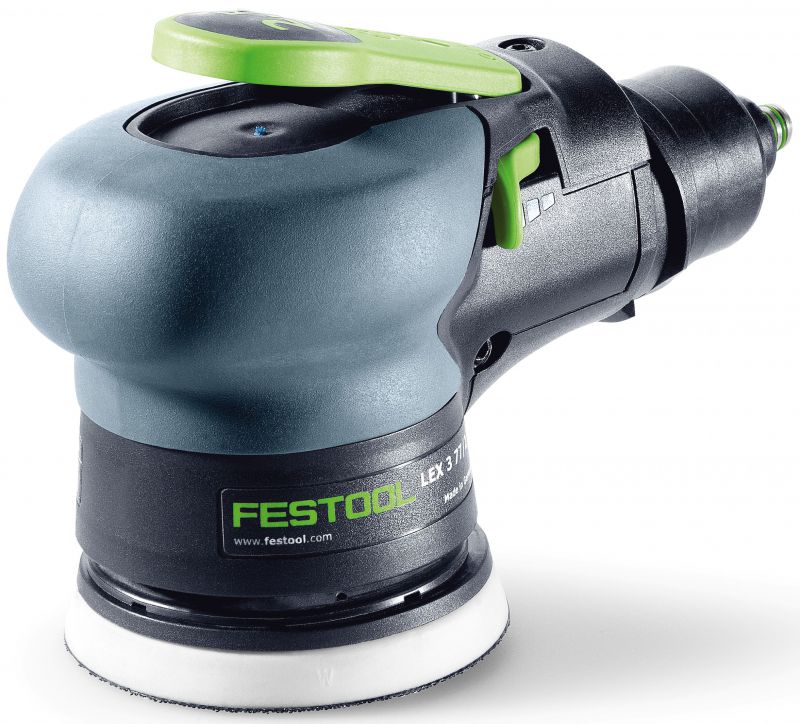

Festool 691131 Festool LEX 3 77/2,5 Compressed Air Eccentric Sander

Festool LEX 3 77/2,5 - Festool Compressed Air Eccentric Sander - (Ref: 691131)

For surface finishing.

Nothing produces a finer finish: With a pad diameter of just 77 mm and weighing just 700 g, the LEX 3 77/2.5 compressed air eccentric sander is the perfect professional tool for sanding small areas, e.g. at transitions during spot repair and blending. Or for sanding difficult to access areas, beading and edges. At the same time, the LEX 3 77/2.5 is robust, durable and, thanks to minimal compressed air consumption, guarantees high cost savings – with both low vibration values and low noise.

• Extremely sturdy design ensures a long service life, minimal servicing requirements and high cost savings
• Pleasant operating noise, low vibration levels and safe dispersion of exhaust air through a compressed air hose protects the health of the user
• Sanding pad brake reduces sanding errors when setting down the machine, thereby avoiding rework and additional costs
• Low compressed air consumption ensures high cost savings

• Finishing

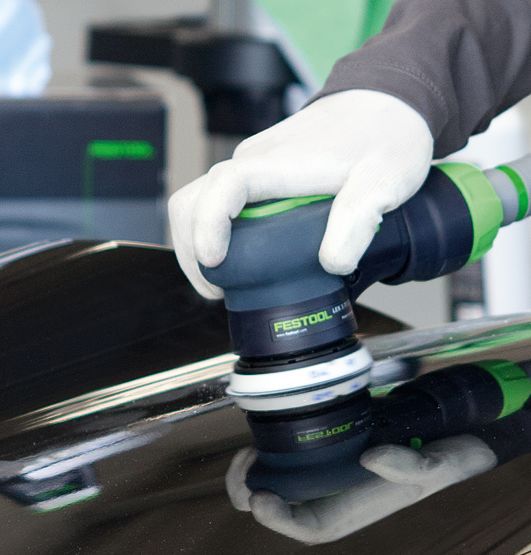

• Sanding transitions when performing spot repairs/blending small surfaces
• Removing paintwork blemishes and paint drips (polishing preparation)
• Sanding inaccessible surfaces, small surfaces, seams and edges
• Trimming edges and sanding small surfaces in furniture manufacture
• Note: an IAS 2/IAS 3 connecting system is required for operation

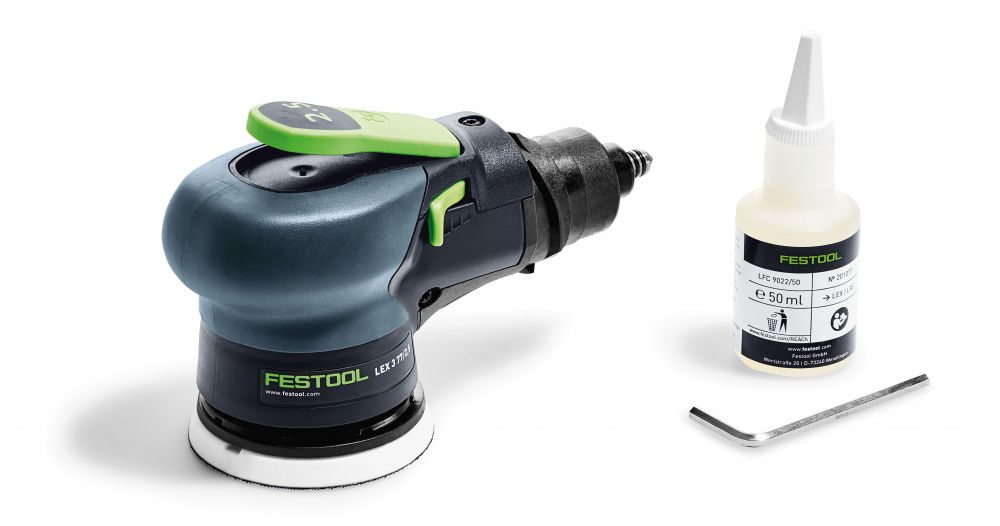

• StickFix sanding pad Ø 77 mm W-HT (soft)
• operation tool
• in carton

• Operating pressure (flow pressure) 6 bar
• No. of strokes 21000 min?¹
• Eccentric motion speed 10500 min?¹
• Sanding stroke 2.5 mm
• Vibration emission value Ah (single-axle) 0.8 m/s²
• Vibration emissions value Ah (three-axle) 1.9 m/s²
• Air consumption at rated load 270 l/min
• Sanding pad dia. 77 mm
• Sound pressure level 72 dB(A)
• Weight 0.8 kg
• Sanding: Total vibration average, Ah 2.5 m/s²
• Sanding: A-weighted sound pressure level, LpA 72 dB(A)
• Sanding: Uncertainty (vibration) K 1.5 m/s²
• Sanding: A-weighted sound power level, LWA 83 dB(A)
• Sanding: Uncertainty (noise) K 3 dB

Festool LEX 3 Owners Manual
