Kreg PRS1200 - Kreg Precision Beaded Face-Frame System

Kreg PRS1200. Kreg Precision Beaded Face-Frame System

The Fastest, Easiest, and Most Affordable Way to Build Beaded Face-Frames in a Home Worksop

• Integrated clamp with quick-release handle and adjustability for variable stock thickness.
  This heavy-duty clamp holds your workpieces firmly in place. It features a quick-release handle and adjustability for variable material thicknesses.
• Control arm provides smoother operation when plunging workpiece into the bit
  The handle can be connected to the Precision Beaded Face-Frame System with or without the Control Arm. The arm provides improved control, smooth operation, and reduces the force necessary to plunge the workpiece into the bit.
• Sliding base with 20 stainless-steel ball bearings for easy operation
  The sliding base of the Precision Beaded Face-Frame System features 20 internal stainless-steel ball bearings that guarantee smooth operation.
• Included router table stop to repeat precise cuts over and over
  The included Precision Router Table Stop lets you repeat precise cuts again and again. It features a Precision Lens Cursor for magnified accuracy, and it can be flipped out of the way when not in use.

• Aluminium Fence
• Sliding Base
• Control Arm
• Integrated Clamp
• Router Table Stop
• 1/4" x 1 1/2" Notching Bit (PRS4200)
• 1/4" Standard Beading Bit (PRS4250)
• 1/4" Precision Setup Bar
• Instructional DVD

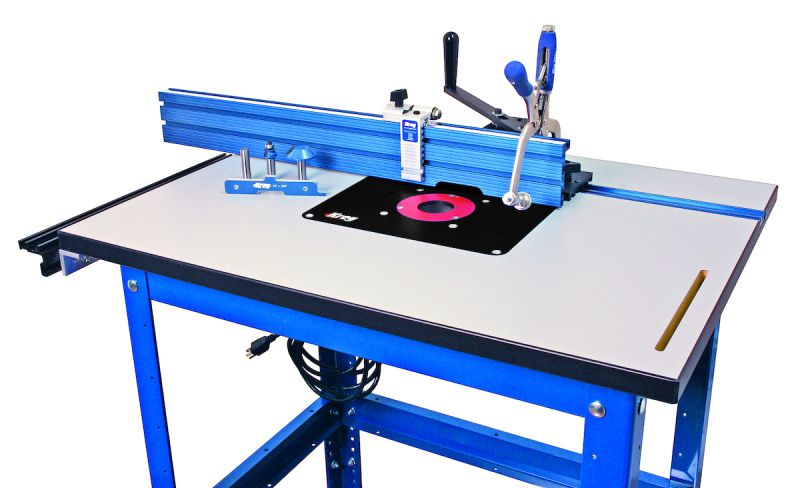

• Beaded face frames are a great way add detail, richness, and value to your cabinetry work. The Precision Beaded Face-Frame System works in conjunction with your full-size router table to serve as the fastest, easiest, and most affordable way to build beaded face-frames in a home shop.
• Through a process of precise notching of rails and stiles, the Precision Beaded Face-Frame System simplifies standard beaded face-frame construction by eliminating the need to make intricate cuts on a table saw, fit and refit miters, or spend thousands of dollars on a large specialized machine. The end result is higher quality, more consistent results, in less time and with less effort than before.

How It Works:

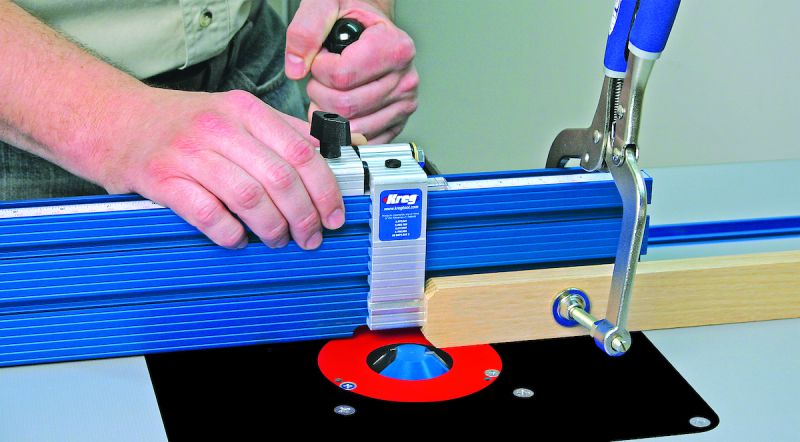

1. Use the control arm and smooth-sliding base to plunge the stiles into the specialized notching bit.
2. Use the Precision Router Stop to ensure perfectly placed notches on the rails.
3. Switch to your standard routing fence and specialized beading bit to apply a decorative bead.
4. Use Kreg Joinery to secure the notched stiles and rails together. Glue is optional.

Cutter Compatibilty:

• FOR BEAD BITS: PRS4250 (1/4" Bead), PRS4255 (5/16" Bead) = USE NOTCH BITS: PRS4200 (1/4"x1 1/2") PRS4205 (1/4"x2").
• FOR BEAD BITS: PRS4260 (3/8" Bead), PRS4265 (3/8" Bead), PRS4270 (3/8" Bead), PRS4275 (3/8" Bead) = USE NOTCH BITS: PRS4210 (3/8"x1 1/2"), PRS4215 (3/8").
