Laguna A Flux 12 Air Filter 190w 230v

Laguna A Flux 12 Air Filter 190w 230v

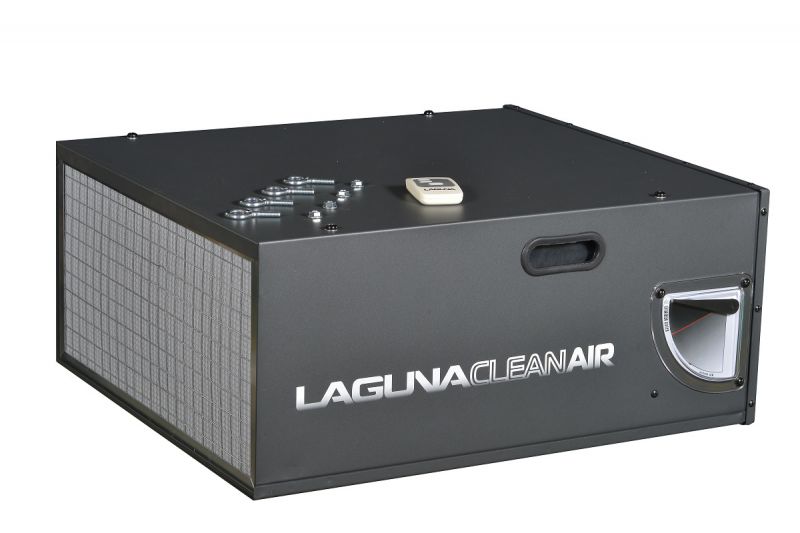

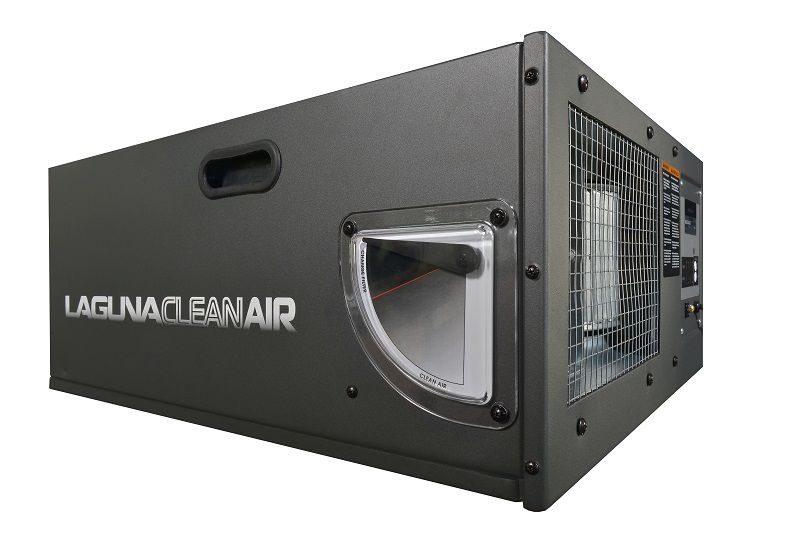

This Air Filtration Unit is designed to recycle all of the air in a 20’x20’x8′ space up to 22 times per hour at its highest speed. It includes an outer washable electrostatic filter with an inner filter that captures all particles larger than 1 micron ensuring clean air output. The unit is equipped with a 150w, 50 Hz motor delivering a class leading airflow of 917 / 1240 / 2038 M3 Per Hour. This is an ideal machine to minimise the ambient airborne dust in larger workshops.

• Motor HP 150W, 220-240 V, 1 Phase, 50 Hz
• Max Airflow M3 Per Hour 917 / 1240 / 2038 (540, 730, 1200 CFM)
• Filter Cycle 20' x 20' x 8' room - 10, 14, 22 times/hour

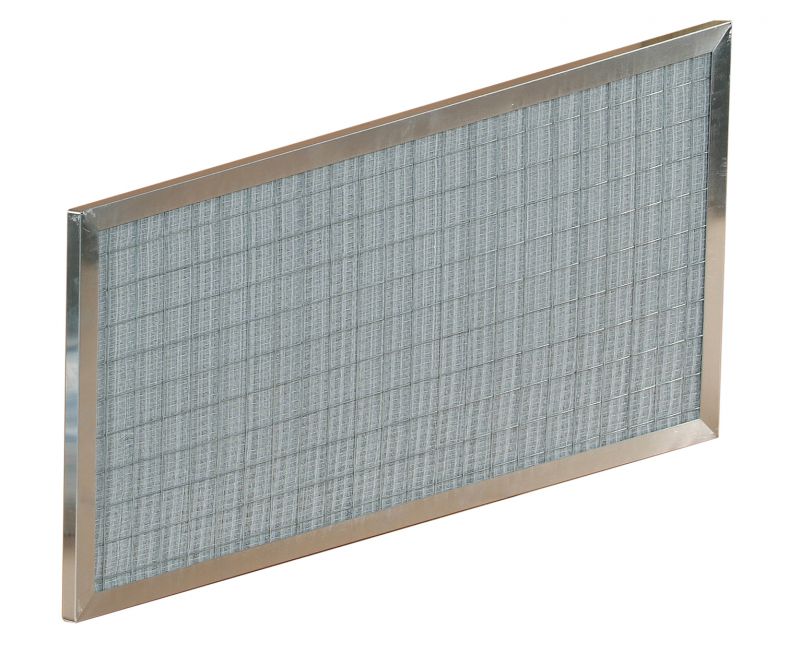

• Outer Filter 5 micron washable electrostatic filter – Size: 310mm x 610 x 25mm

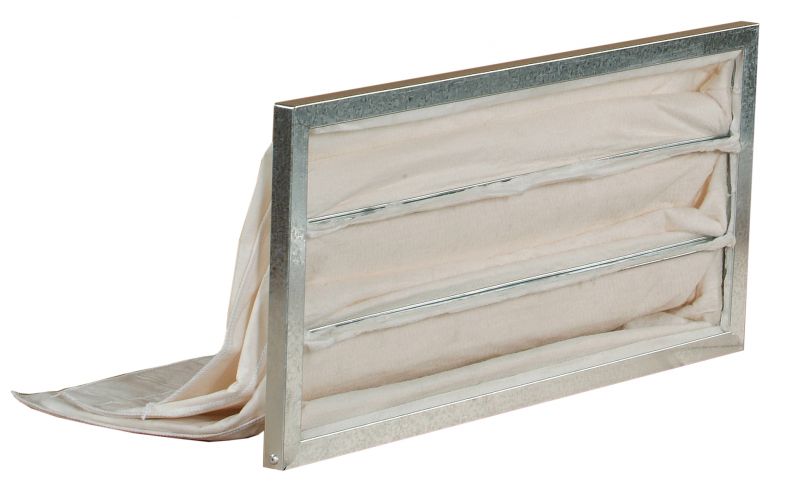

• Inner FilterB15 1 micron Polyester - Size: 310mm x 610mm x 310mm

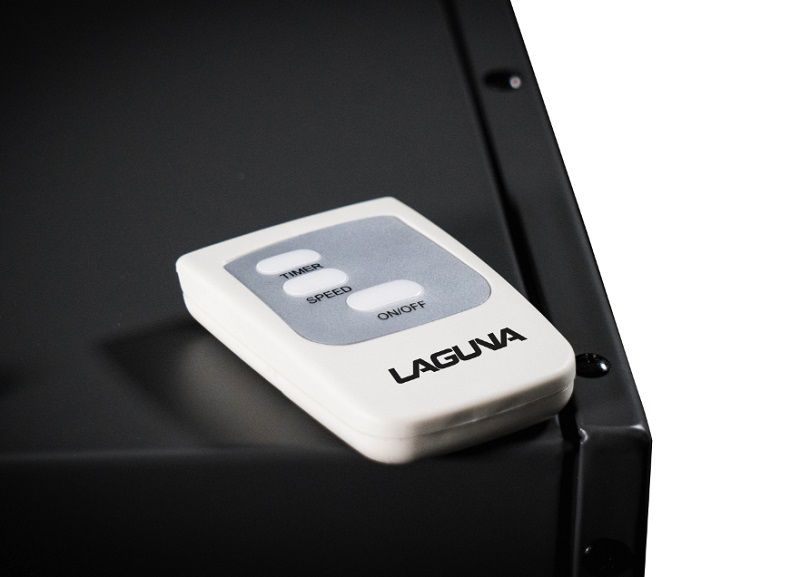

• Timer Settings 1/2 hour / 2 hour / 4 hours
• Length 712mm (28 inches)
• Width 610mm (24 inches)
• Height 305mm (12 inches)
• Weight (net) 25.4Kg (60lbs)
• Weight (shipping) 28.6Kg (73lbs)
• Warranty 1 year
• Decibels (high speed) 59.6 dB
• Decibels (medium speed) 56.1 dB
• Decibels (low speed) 55.6 dB

Laguna A Flux 12 Air Filter Instruction Manual
