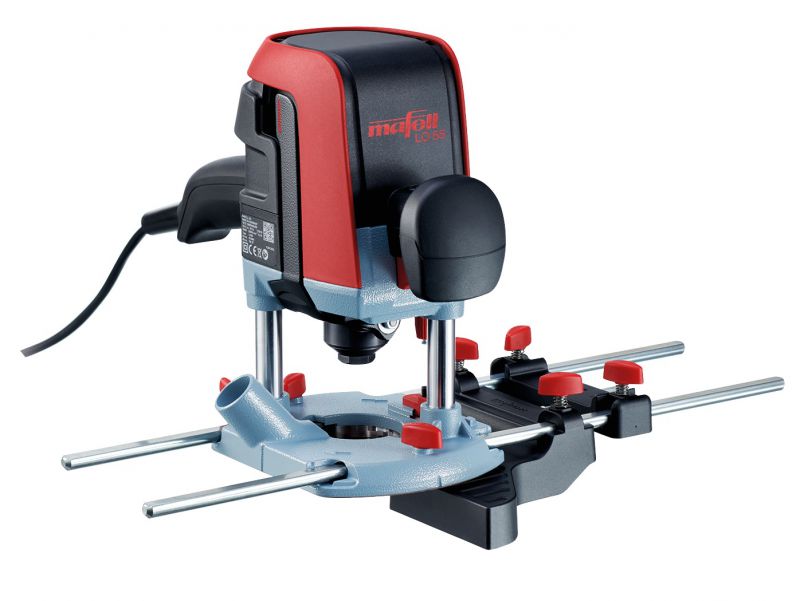

Mafell Hand Router LO 55 240v, in MAX3 - 91A901

Mafell Hand Router LO 55 240v, in MAX3

ref: 91A921

• Want to know what a whole new world of versatility looks like? Then cast a glance at the LO 55. In view of its exemplary operation, it’s the ideal partner for every task both in the workshop and on site. Discover the broad application scope for yourself and unleash your creativity.
• Our Ergo-Balance principle focuses on you, the user. As a machine, the LO 55 is perfectly balanced; vibrations and their transmission are simply avoided.
• Graduated turrets with height fixing for recurring machining depths. For dovetail joints, the cutting depth can be additionally fixed.

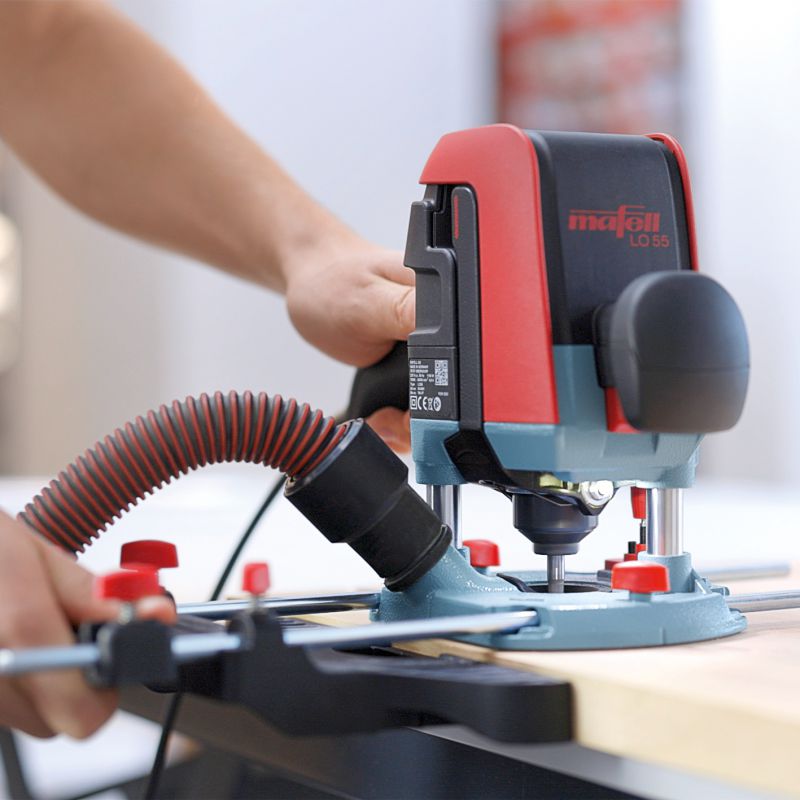

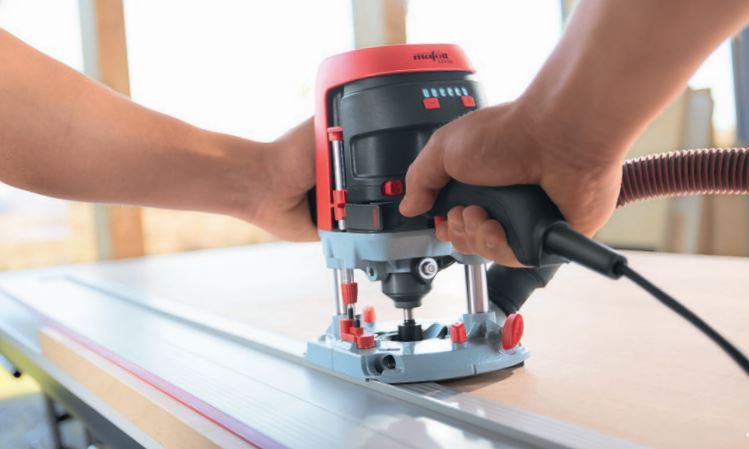

• Use of the router adapter LO-FA and guide rail F-LR allows you to drill rows of holes with reliability and precision. For rapid progress, simply deactivate the Permafix lock.
• It could hardly be easier or quicker: to insert a different router bit, simply release the locking lever, exchange the bit and park the lever.
• The hose connector is integrated in the baseplate. This arrangement reliably captures chips as they are produced.

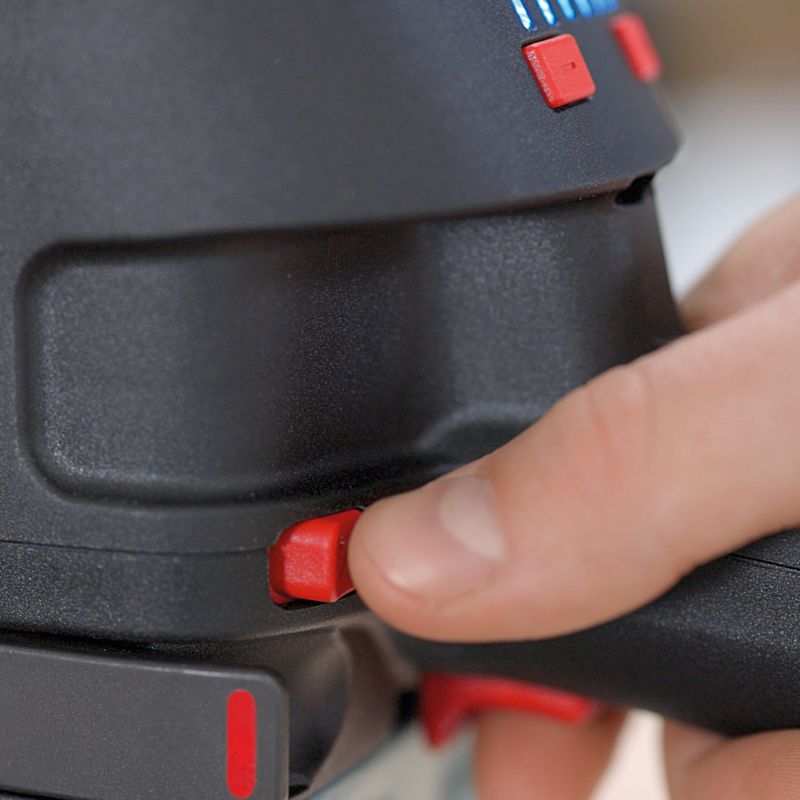

• The cutting depth is permanently fixed. Pressing the Permafix button releases the lock for easy adjustment.
• No matter what the light conditions, the wide array of LEDs illuminates the working area perfectly.
• The parallel fence and inserts are locked with the two wing screws in the baseplate.

• TOOL-LESS BIT CHANGES It could hardly be easier or quicker: to insert a different router bit, simply release the locking lever, exchange the bit and park the lever.
• LED LIGHTING No matter what the light conditions, the wide array of LEDs illuminates the working area perfectly.
• DUST REMOVAL CONCEPT The hose connector is integrated in the baseplate. This arrangement reliably captures chips as they are produced.
• GRADUATED TURRETS WITH HEIGHT FIXING For recurring machining depths. For dovetail joints, the cutting depth can be additionally fixed.
• ERGO-BALANCE PRINCIPLE Our Ergo-Balance principle focuses on you, the user. As a machine, the LO 55 is perfectly balanced; vibrations and their transmission are simply avoided. BETTER BALANCE The position of the LO 55 handle complies fully with ergonomic design principles and gives the operator a secure hold. In addition, thanks to the many leveling options, the router always remains stable. ENHANCED SAFETY Protrusions or projecting edges? Not with the LO 55. When setting up the machine, you can put it down or rest it on any surface without the risk of damage to either the workpiece or the router. MORE CONTROL All operating elements of the LO 55 are either red or marked in red and therefore catch the eye immediately. The digital electronic circuitry includes LED telltales for warning purposes, and the copying rings are centered automatically.

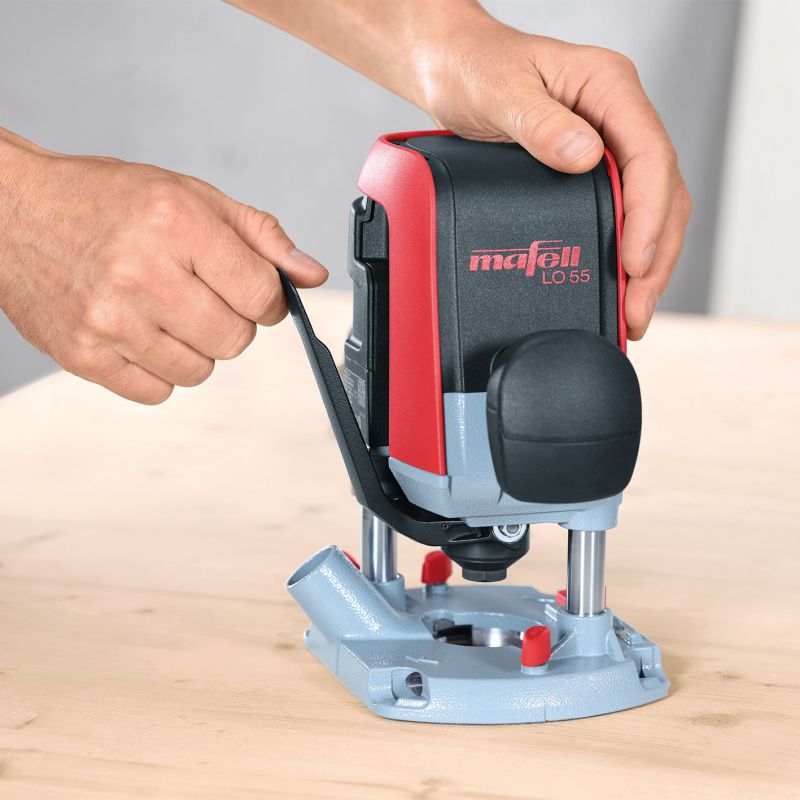

• CUTTING DEPTH SETTING Thanks to a user-friendly locking lever, you can reliably secure the cutting depth without exerting any force.
• DEBOOST FUNCTION Simply pressing the Deboost button reduces speed by 30%. This avoids burn marks – which typically occur when transitioning from long to end grain.

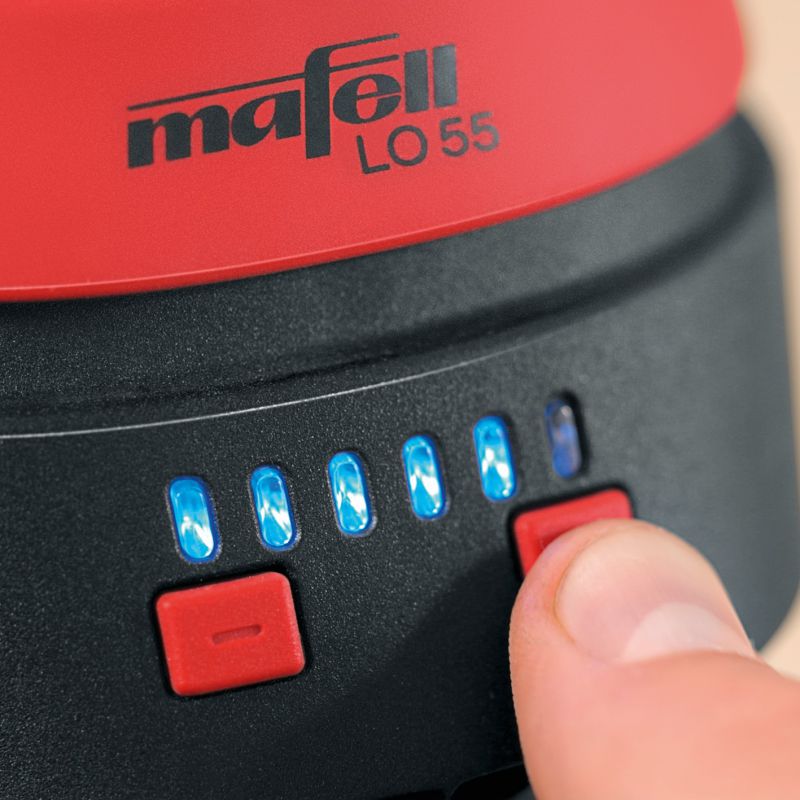

• MAFELL INTELLIGENT POWER CONTROL (IPC) MAFELL’s new digital electronic control system governs restart and overload protection, as well as the constant speed under load. Blue LEDs flash when the Deboost function is operating, and red onces flash during the cooling cycle.
• CENTRAL LOCKING The parallel fence and inserts are locked with the two wing screws in the baseplate.
• HEIGHT ADJUSTMENT The height adjuster in the baseplate sits flush with its surface. It ensures stability and, e.g. when a copying ring is being used, compensates for the thickness of the template.

• Routing grooves using the parallel fence
• Recesses
• Chamfering
• Rows of holes
• Routing rebates
• Compatible materials include solid wood and board materials

• 1 Parallel guide fence with fine adjustment
• 1 chip deflector
• 1 Template guide 20 mm (13/16 in.)
• 1 Template guide 30 mm (1 3/16 in.)
• 1 Template guide 40 mm (1 37/64 in.)
• 1 Template guide adapter
• 1 Extraction hose adapter
• 1 Extraction hose adapter for rail F
• 1 Mains cable 4 m (13.1 ft)
• Transport and storage box MAX3

• Cutting depth: 0 - 55 mm
• Chuck Ø: 8 mm
• Nominal No. of strokes – no load: 10000 - 24000 1/min
• Nominal power input: 1100 W
• Extraction connection diameter: 29 mm
• Weight: 3,1 kg
• Universal motor: 230 V / 50 Hz
