Microjig MATCHFIT Dado Stop Pro Set

Microjig MATCHFIT Dado Stop Pro Set

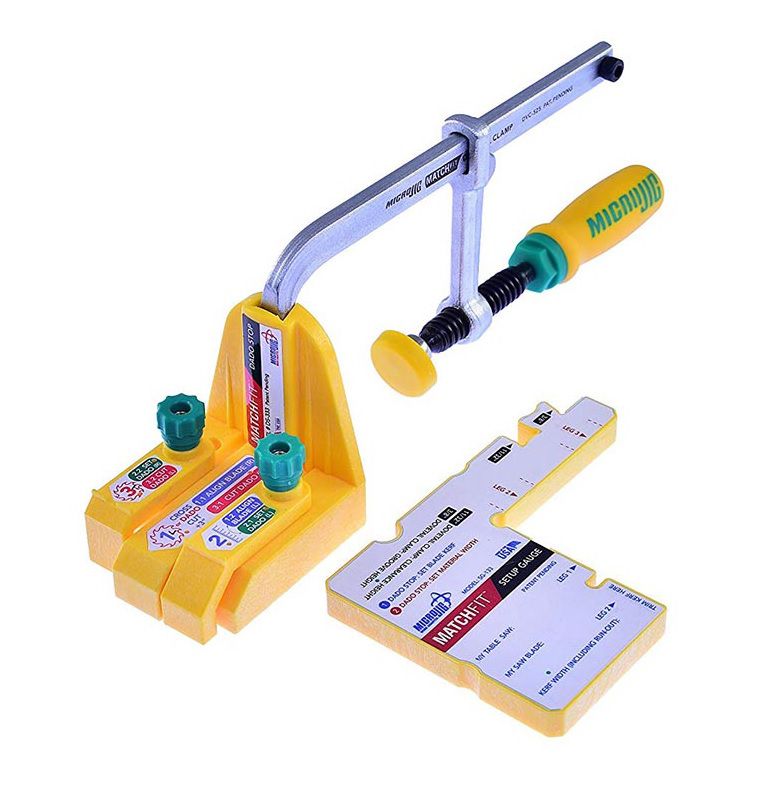

Includes Dado Stop, Dovetail Clamp and Setup Gauge

MF-1004

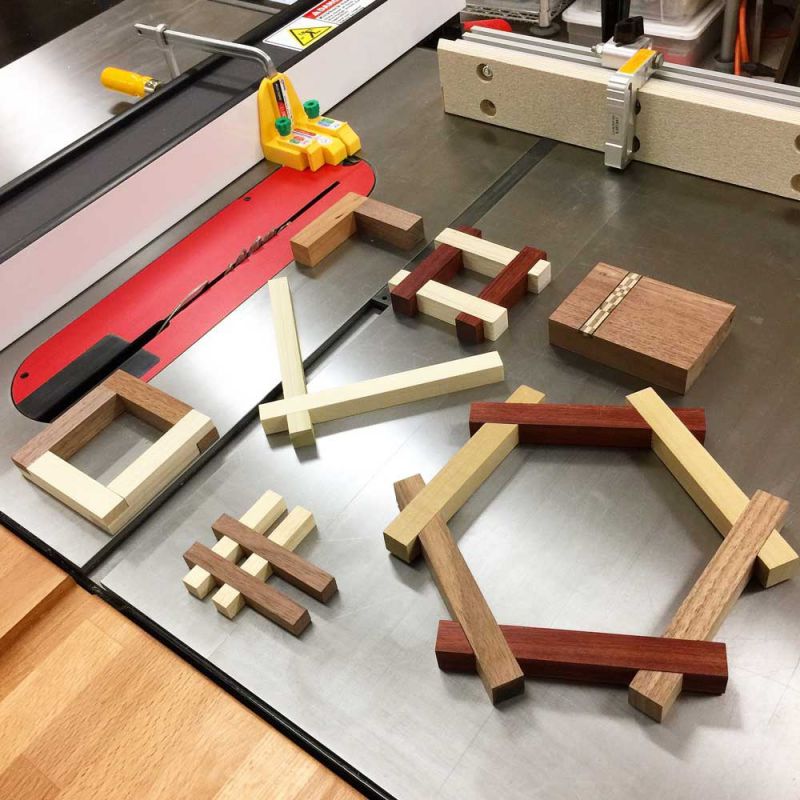

Make flawless dados for lap joints and inlays without a dado blade.

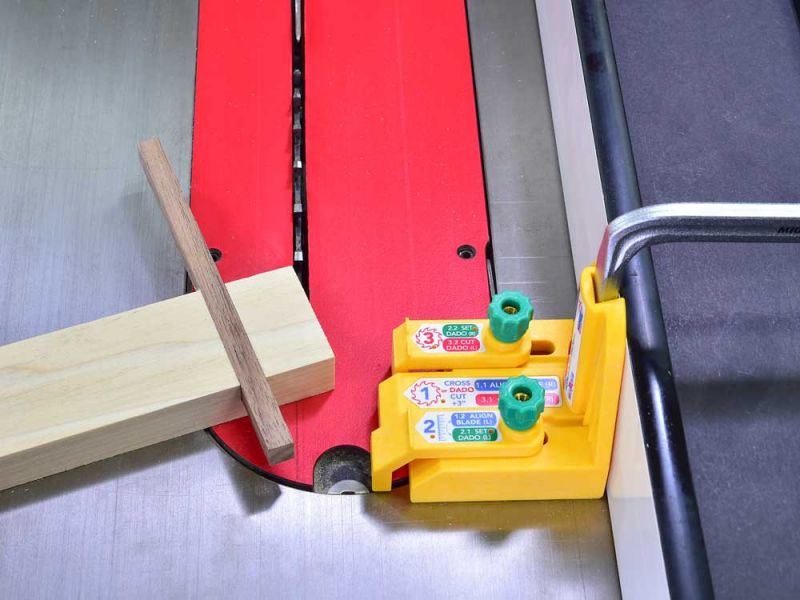

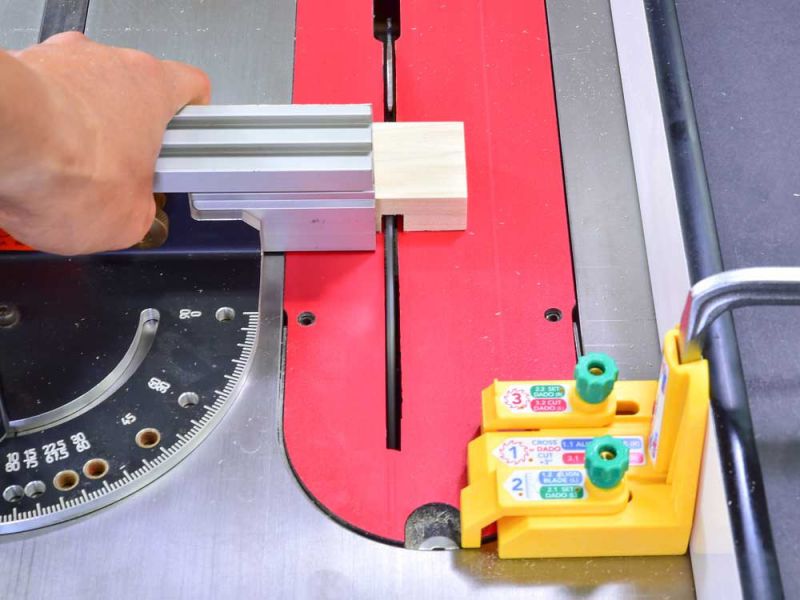

• Make perfect dados in a fraction of the time: 1 - Template your blade’s kerf. 2 - Set Leg 2 to cut one shoulder, accounting for the kerf.‍ 3 - Set Leg 3 to match your inlay material. 4 - Cut both outside shoulders, registering off Leg 1 and Leg 3. 5 - Clear out remaining material from the centre.
• The Dado Stop references the blade’s unique kerf and the actual inlay material to measure the cut. With the included Setup Gauge and Dovetail Clamp, setting up your dado cut takes just a few seconds, and eliminates the need for measuring, test cuts, and wrestling with multiple blades and shims. Best of all—there's no dado blade required.

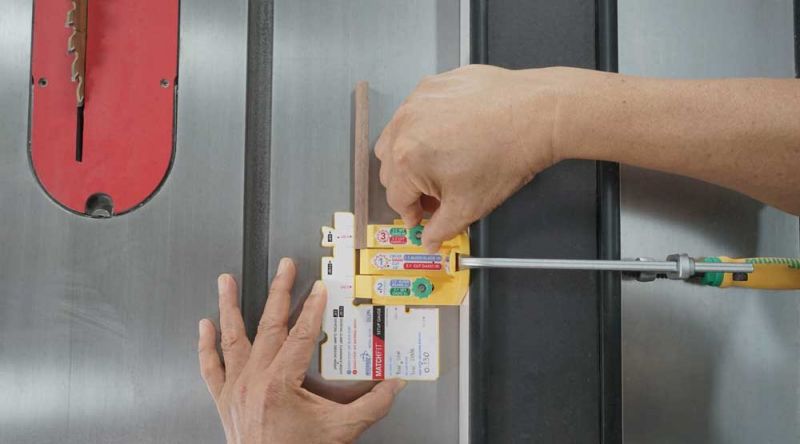

• Replicate your blade’s exact kerf onto the Setup Gauge for a fast, precise setup every time.
• Dado Stop attaches to the fence with the included MATCHFIT Dovetail Clamp.
• Setup Gauge and Dado Stop are magnetized for improved stability during setup.

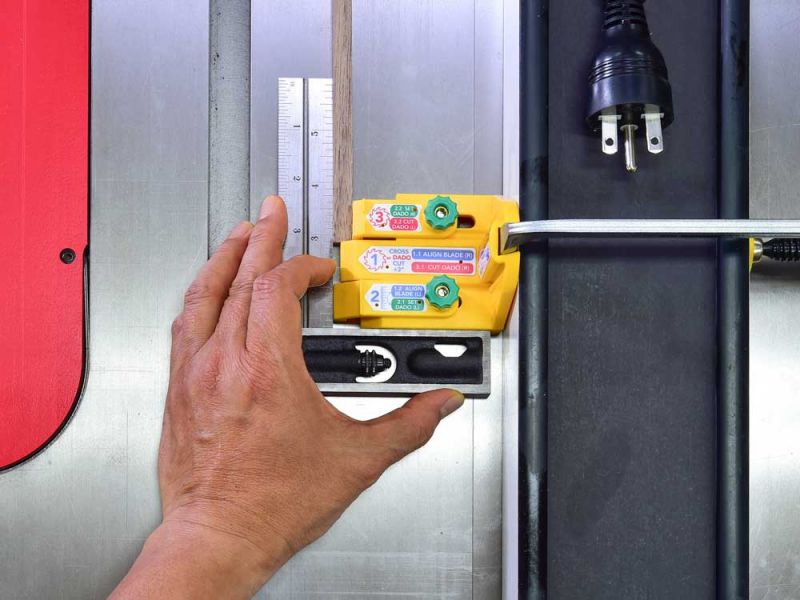

• Perfect for calibrating rip fence scale.

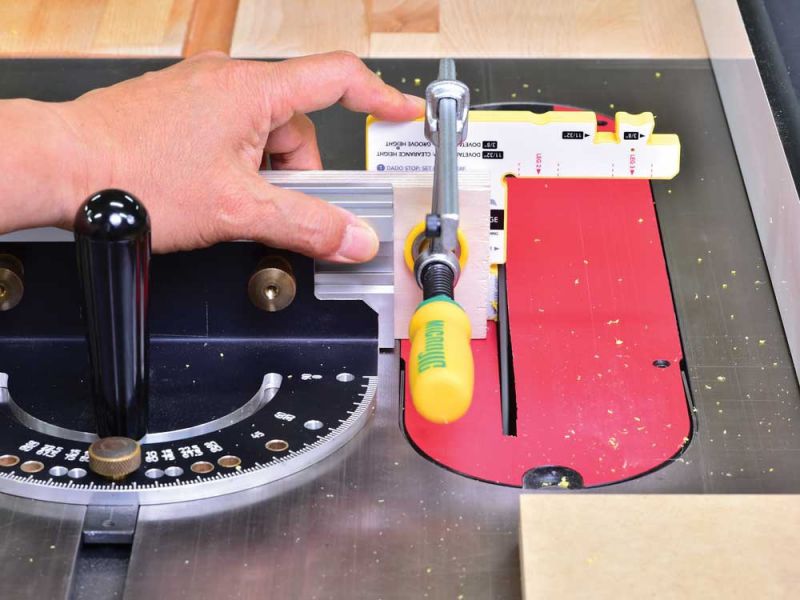

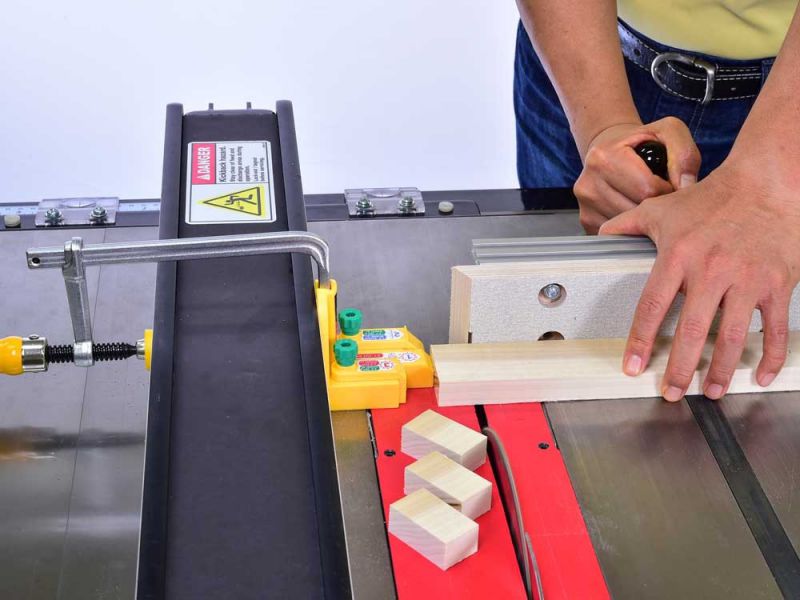

• Functions as crosscut stop for safe, repeatable crosscuts.

• Dado stop
• Doevtail clamp
• Setup gauge

Microjig MATCHFIT Dado Stop Pro Instruction Manual
