NOVA Galaxi DVR 1624 / 1644 Woodturning Lathe with Cast Iron Stand

X
Product Code: TUR/55217
Brand: NOVA Woodturning
Several options are available for this product.
Please Choose Below
NOVA Woodturning
NOVA Galaxi DVR 1624 / 1644 Woodturning Lathe with Cast Iron Stand
Special Carriage Rate of £124.66 Applies to This Item
PRE-ORDER
£2,699.40
Inc. VAT
NOVA Outrigger for Nova Galaxi DVR, Nova Saturn XP and 1624 mk2 Lathes - Ref: 55223
Low Stock - Please Call For Availability
£194.99
Inc. VAT

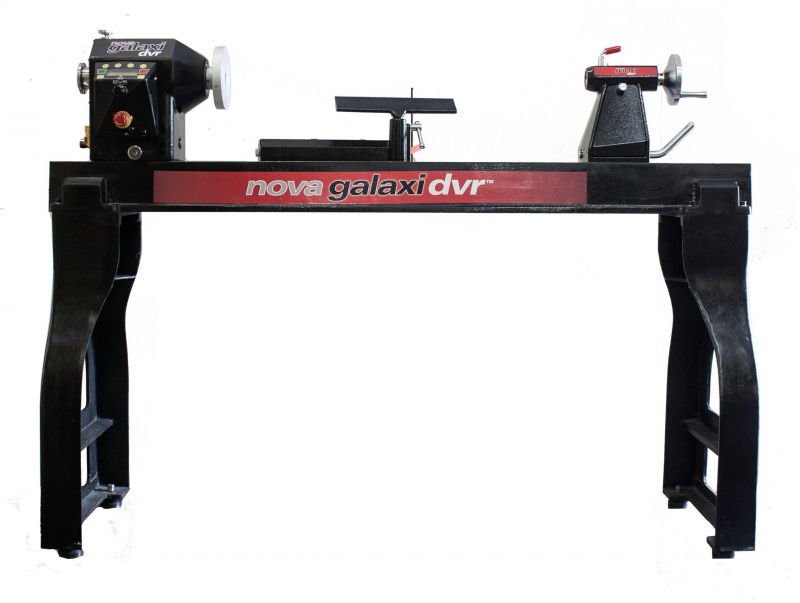

NOVA Galaxi DVR 1624-44 / 1644 Variable Speed
Woodturning Lathe and Cast Iron Stand
Ref: 55217



(outrigger and bowl rest for illustration only)



The NOVA Galaxi DVR 1624-44 combines the best features of larger lathes, including power, capacity and capability with state-of-the-art technology to make turning more efficient, more fun and safer. The NOVA DVR Galaxi is one of the most versatile lathes available; it includes a swivelling head and a cast iron stand as standard.The NOVA DVR lathes are unique.

The build incorporates the motor into the headstock; the spindle and motor form one unit. The motor design makes it highly reliable and practically maintenance free. The DVR (Digital Variable Reluctance) motor uses smart motor technology to provide an incredibly smooth and powerful drive. The controller constantly monitors the spindle and maintains speed, increasing power as it senses extra load from the tool.The 1,305W(1.75hp) DVR motor features chisel dig-in safety sensing and out of balance work adjustment. It has a wide speed range, from a very low 100rpm right up to 5,000rpm. It features easy-to-use dial-in speed control (up to five favourite speeds), making it the perfect solution for turning small pens or large bowls.

The NOVA Galaxi DVR offers 405mm(16") swing capacity (expandable to 735mm(29") capacity with the optional outrigger accessory) and 1,115mm(44") between centres. The headstock can slide along the bed to provide a maximum bowl turning capacity from the end of the bed. It includes a forward and reverse feature. Full swivel head functionality and solid cast iron components.Supplied with cast iron stand, 150mm(6") faceplate, 300mm(12") toolrest, 2MT live centre, 2MT spur centre, knock-out bar and manual.



Key Features

  • Powerful 1,305W (1.75hp) motor with plenty of torque for larger projects
  • Incredible speed range 100 to 5,000rpm; turn anything from pens to large platters

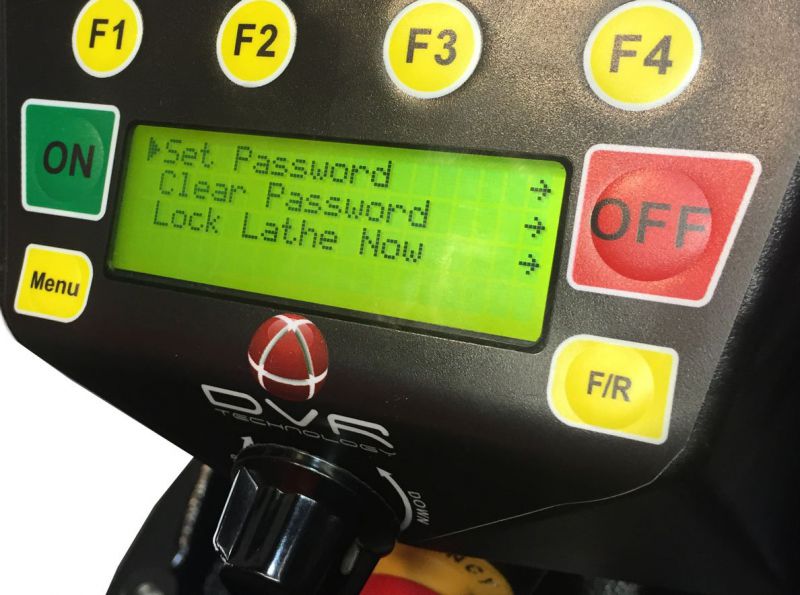

  • Pre-programme 5 favourite speeds feature; no time wasted setting up
  • Swivelling head; indexed at 0°, 22.5°, 45° and 90°

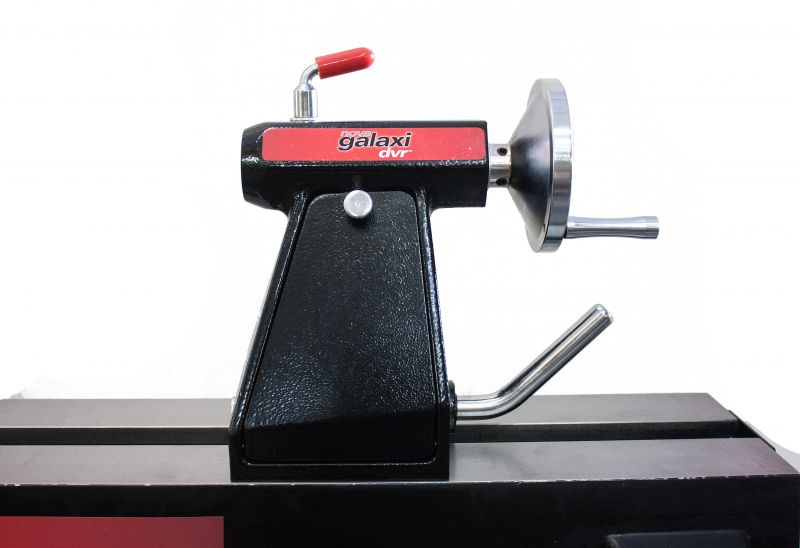

  • Self-ejecting 2MT tailstock
  • Precision machined cast iron construction, built to last



Strengths and benefits

  • Power to Turn and Burn - 2HP (220v) and 1.75 (115v) Direct Drive DVR Motor offers more power/torque than any competitive 16″ lathe on the market.
  • 5 Favorite Speeds, PLUS NEW Dial in Speed Control - Enables you to pre-programme your most used speeds for faster and more efficient project set ups. The NOVA Galaxi is the first NOVA DVR lathe to feature dial in speed control for faster, more precise speed setting.
  • Solid CAD designed Cast Iron Stand included as standard equipment - Exclusive larger design especially for the NOVA Galaxi, with CAD designed ribbing for structural strength, and a provision for a tool shelf. The NOVA Galaxi 1624-44 Lathe Stand is designed to allow the owner to make custom shelves to add to the stand, if desired. Shelves are not supplied with the stand.
  • Stationary lathe capabilities in a compact workspace - Incredible power in a compact working space, great for those who need all the workshop space they can get! The swivel head and articulated Outrigger Accessory (additional purchase) means that turning even large bowls, you are still turning in the same compact working envelope. Slide the headstock along the bed for larger projects.
  • 360° Swivel head - Position work where you want it, makes your turning more comfortable and saves you workshop space
  • Incredible Speed Range - With a very low speed of 100rpm up to an incredibly high speed of 5,000rpm, the NOVA GALAXI DVR is the perfect solution for a wide variety of projects from small pens to large bowls and platters.
  • Stationary lathe capabilities in a compact workspace - All the power you need in a compact working space, great for those who need all the workshop space they can get! The full swivel head and articulated Outrigger Accessory (SKU 55223) means that even with large bowls (29”) you are still turning in the same compact working envelope.
  • High Torque - Delivers high torque from its start speed making it well suited for low speed turning. There is no belt drive – full power output is available at the spindle.
  • Intelligent Drive - The computer analyzes (100s of time per second) both the spindle position and the power required to maintain a given speed. As cutting tool pressure is increased the drive adds more power. Unlike a ‘dumb’ AC or DC where there is no connection between the power supplied and the actual spindle requirements.
  • Up to 50% Energy Efficiency - The DVR motor only draws as much power as necessary – this means it is very efficient in its power use and runs very cool, adding years to your motor
  • Low Maintenance - The DVR is a simple motor – the complexity is in the electronics. It has few mechanical parts with no belts, pulleys – the motor and lathe headstock are a fully integrated whole. There are no brushes or magnets and only one set of very robust industrial grade stator windings.
  • Flexibility in Turning - The headstock not only rotates a full 360deg, but you can slide the headstock along the bed, giving you maximum flexibility and capacity in your turning.



Brochure Details - click on the photo below to view the brochure

teknatool nova galaxi dvr 1644 - nova galaxy dvr 1624



Specification

  • Distance Between Centres: 1,115mm (44")
  • Max Diameter over Bed: 405mm (16")
  • Model: Nova Galaxi 1624-44
  • Power: 1,500W (2.0hp)
  • Speed: 100 - 5,000rpm
  • Spindle Taper: 2MT
  • Spindle Thread: T38 M33 x 3.5mm
  • Tool Rest Stem Diameter: 25.44mm (1")






Click below for

NOVA Galaxi DVR 1624-44 / 1644 Variable Speed
Woodturning Lathe and Cast Iron Stand Package
complete with Outrigger Support and Woodsurfer Bowl Rest
Ref: 101971-PK1
