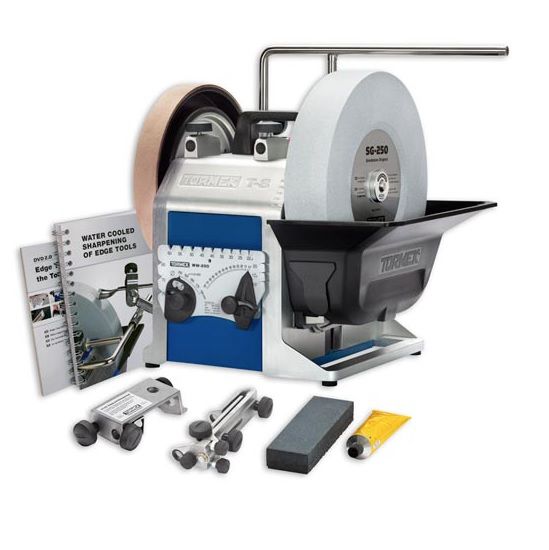

Tormek T-8 Wetstone Grinder Tormek T8 Sharpening System - Ref 102175

Tormek T-8 Wetstone Grinder
Sharpening System Tormek T8
Ref: 102175

• Revolutionary fully cast housing for strength and accuracy
• Integral sleeves for support bar guarantees correct alignment
• Screw lift rise and fall mechanism for water trough
• Micro adjustable for complete control of sharpening angle
• Sharpens all types of steel, including high speed steel (HSS)
• Includes upgraded SE-77 jig for precise 90° edges

• Dimensions: Width 270 mm (10 3/4"), Depth 270 mm (10 3/4"), Height 330 mm (13")
• Weight: 14.8 kg
• Grindstone: Tormek Original Grindstone, Aluminium oxide, 250×50 mm (10"× 2") 90 rpm
• Leather Honing Wheel: 145×26 mm (5¾"×1")
• Main Shaft: Stainless steel main shaft and stone hardware. EzyLock in composite.
• Housing: Zinc cast top, Impact resistant ABS plastic
• Motor: Industrial single phase, 200 W (input)
• 230 V, 50 Hz or 115 V, 60 Hz. Duty 30 min/hour, Maintenance free.
• Silent running, 54 dB. 10,000 hour life


• TT-50 Truing and Dressing Tool
• SP-650 Stone Grader
• WM-200 Angle Setting Guide
• PA-70 Honing Paste and Dressing Oil for the honing wheel
• SE-77 Square Edge Jig
• Handbook
• DVD

• The Tormek T-8 sharpening system is the perfect answer to your sharpening requirements. For any professional or amateur needing a versatile, reliable and repeatable sharpening system, the T-8 should be on the top of your list.
• The T-8 has a 250mm x 50mm water-cooled grindstone and a 220mm x 31mm leather tyred honing wheel. Powered by a quiet 200W motor, Tormek’s unique and efficient drive system maintains constant speed, even under load. Tools can be sharpened with the Supergrind wheel cutting towards or away from the edge. The T-8 features a strong, cast-alloy casing. The mounting sleeves for the universal support are an integral part of the casting.
• The design eliminates the possibility of any misalignment between the universal support and the grinding wheel. The universal support bar has a micro-adjuster, which makes setting up or replicating a sharpening angle easy and highly accurate. The Advanced Water Trough features a screw lift mechanism. You can fit it, fill it and then by simply turning the knob, raise the trough to bring the water into contact with the stone. It makes removing the trough for emptying just as simple.
• The T-8 includes a magnetic scraper for efficient cleaning. The unit has an NVR safety switch with a strong waterproof cover. The T-8 is suitable for use in education and other areas where an NVR switch is a necessity.
• The SE-77 upgraded jig included is for square edge tools and ts design has a movable side and fine adjustment. This ensures a precise 90° angle between your blade’s edge and side. It also offers the possibility to create a slightly cambered edge. The Tormek wet-grinding method leaves a polished, burr-free edge without overheating the tool. Wet grinding significantly extends the life of your tools; it removes less material without affecting the temper of the steel.
