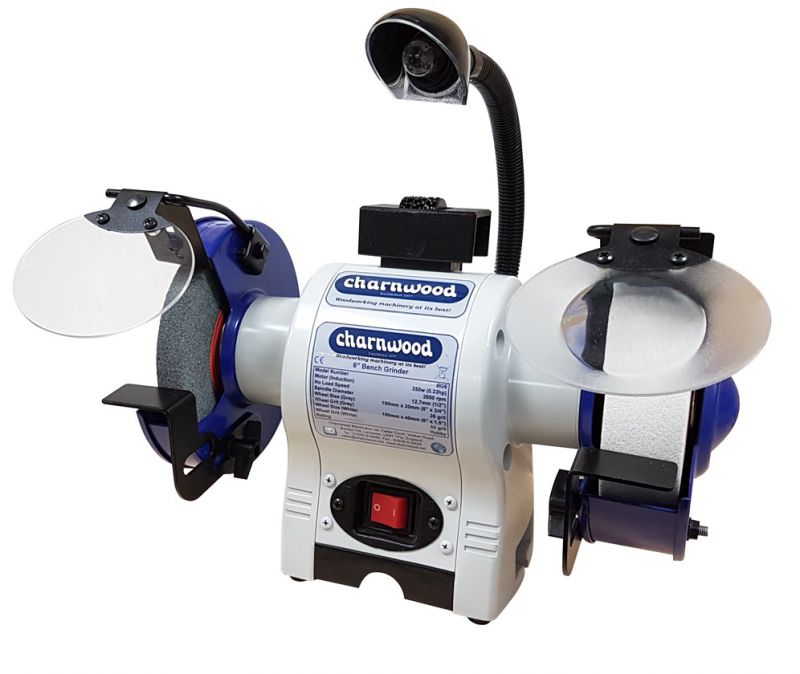

Charnwood BG6 Charnwood 6" Bench Grinder with 40mm white wheel

Charnwood 6" Bench Grinder with 40mm White Wheel
Charnwood BG6
REF - BG6

Charnwood have developed this model particularly for woodturners by fitting it with a 40mm wide fine white stone grinding wheel.

• The extra width allows virtually all turning tools to be sharpened.
• The white stone helps to prevent heat build up and is used for sharpening heat sensitive tools such as High Speed Steel (HSS).
• The other end of the grinder is fitted with a coarse Aluminium Oxide grey stone for fast removal of material.
• Perfect if you get a chipped chisel tip and need to remove a lot of material.
• The grinder is driven by a smooth and quiet induction motor with ample power for all sharpening and grinding operations.
• An integral work light on a flexible shaft ensures that the work area is well lit at all times.
• Each wheel is fitted with a spark guard, which can adjusted as the stone wears down to maintain maximum safety.
• A one piece steel tool rest is similarly adjustable and can be quickly removed should you wish to fit a polishing wheel.
• For doing close up work, one of the eye shields doubles as a 3 times magnifier.
• The grinder sits on 4 rubber feet to provide a stable platform.
• It can also be secured to a work bench using the 2 mounting points provided.
• The inclusion of the wheel dressing tool allows the stones to be reshaped and squared off as they wear down, giving a long and productive life span.
• Supplied with spark guards, eye shields (1 with magnifier), tool rests, coolant tray, wheel dresser, 1.75m cable and UK 3 pin plug.

• Bench Grinder with 8" diameter wheels, can be used for all grinding, sharpening and shaping tasks around the workshop.

• 250w Quiet Induction Motor
• 20mm Wide Coarse Grey Stone
• 40mm Wide Fine White Stone
• Adjustable Spark Guards
• Adjustable Eye Shields
• Adjustable Tool Rest
• Integral Mains Powered Work Light
• Built-In Coolant Tray
• Wheel Dressing Tool

• Motor (Induction) - 250w (0.3hp)​
• Voltage 220~240v, - 50hz
• Max. Continuous Run Time - 30 minutes
• No Load Speed - 2850rpm
• Spindle Diameter - 12.7mm (1/2")
• Wheel Diameter - 150mm (6")
• Wheel Width Grey (Coarse) - 20mm
• Wheel Width White (Fine) - 40mm
• Wheel Grit Grey (Coarse) - 36g
• Wheel Grit White (Fine) - 60g
• Work Light Bulb 12v, 10w, screw type
• Assembled Dimensions (WxDxH) - 400mm x 350mm x 370mm
• Shipping Dimensions (WxDxH) - 460mm x 270mm x 310mm
• Weight - 12kg
• Rating Hobby
• Warranty - 5 years

Charnwood BG6 Owners Manual

Charnwood Machinery 5 Year Guarantee
