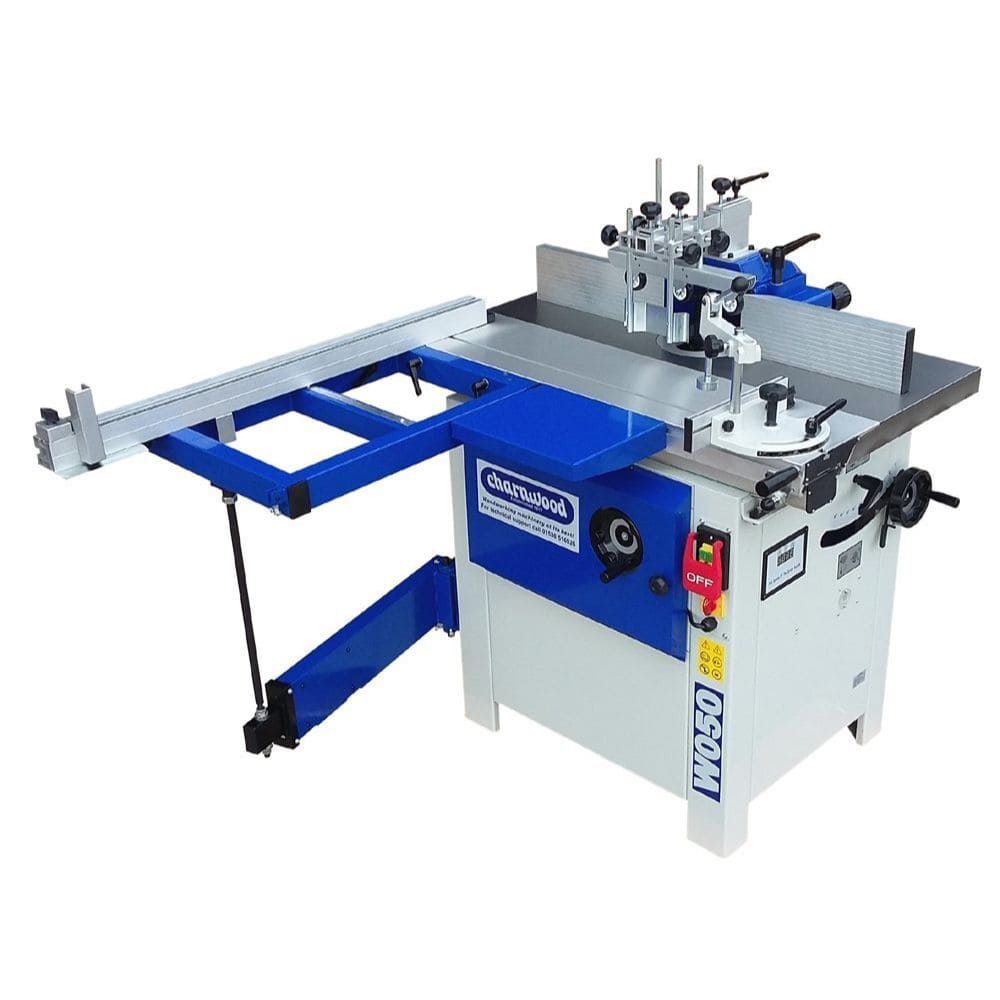

Charnwood W050P Tilting Spindle Moulder and Extension Table Package

Charnwood W050P Tilting Spindle Moulder Package with Integrated Sliding Table and Outrigger Extension Squaring Table


Save £150 when bought as a package


• 2.8kW Induction Motor
• Four Speeds with Digital read-out
• Sliding Beam 48” Capacity
• Cast Iron Main Table
• Alloy Sliding Table
• 45° Backwards Tilting Spindle
• Independently Adjustable Fences
• Optional Outrigger with Squaring Arm
• Reversible Spindle Direction

• A large precision ground cast iron table forms the main table, with a sliding beam in front, which includes a mitre fence and work clamp as standard equipment.
• A mechanically braked motor offers ample power to use tooling up to 200mm in diameter with a choice of four speeds to allow a wide range of tooling to be used. A digital speed display informs the operator of the current setting. Further versatility is provided by the backwards tilt facility. The spindle hood is of cast alloy and is fitted with long, fully adjustable fences, a vertical hold down, front clamp and a 100mm dust outlet. A hinged lid allows for easy access when setting the tooling.
• Supplied with set of spindle spacers, table inserts (80mm, 110mm & 150mm), cable and 16amp plug.
• The outrigger table with telescopic support arm is ideal for those working with larger panels or longer lengths of timber. A squaring arm can be set to any angle and has a flip-over sliding length stop graduated in millimetres up to 1500mm.
• The optional Ring Fence allows safe working when putting an edge moulding onto curved shaped pieces. It consists of a round fence to control the depth of cut, a transparent cutter guard, a lead in guide and a 100mm diameter extraction outlet.
• Extra images above show optional spindle moulder ring fence and outrigger extension table.

• Motor (induction): 2800w (3.75hp), 240v
• Main table size: 1000mm x 360mm
• Sliding carriage size: 1000mm x 240mm
• Sliding carriage stroke: 1200mm
• Spindle diameter: 30mm
• Spindle Tilt: +5 to - 45 degrees
• Speeds: 4 (1800, 3000, 6000 & 9000rpm)
• Vertical stroke:100mm
• Maximum tooling diameter (above table): 200mm
• Maximum tooling diameter (below table): 180mm
• Table aperture depth: 50mm
• Table height: 900mm
• Dust extraction outlet: 100mm
• Dimensions (WxDxH): 1000mm x 1300mm x 1250mm
• Weight: 218kg
• Rating: Trade
• Warranty: 5 Years
