TREND H/JIG/C HINGE JIG SKELETON TWO PART IN CASE

Trend Routing On-Site Jigs - Trend Hinge Jig C - Hinge Jig Skeleton Two Part In Case - Ref: H/JIG/C

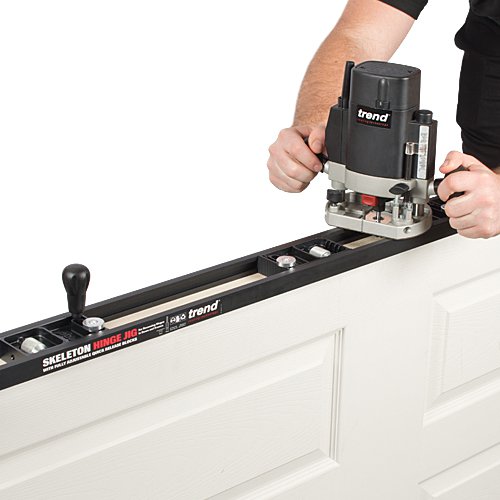

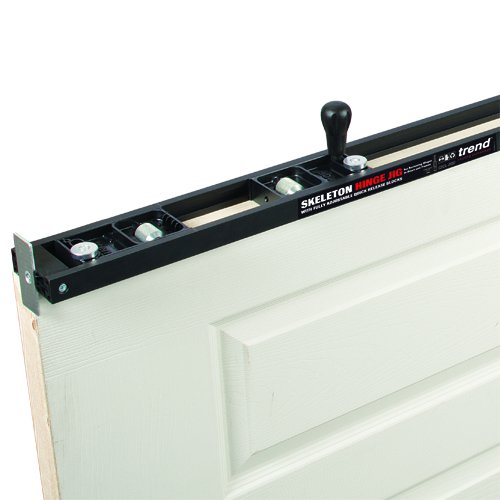

• The two part Contractor Hinge Jig is a portable fully adjustable block template set designed for recessing hinges in wooden doors & frames using a plunge router.
• It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
• Used on-site & in joinery shops to increase productivity with excellent results.
• Fully adjustable apertures for fire door requirements and renovation work.
• Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
• Ideal for fitting a new door in an old frame.
• No need for marking out in the conventional way.

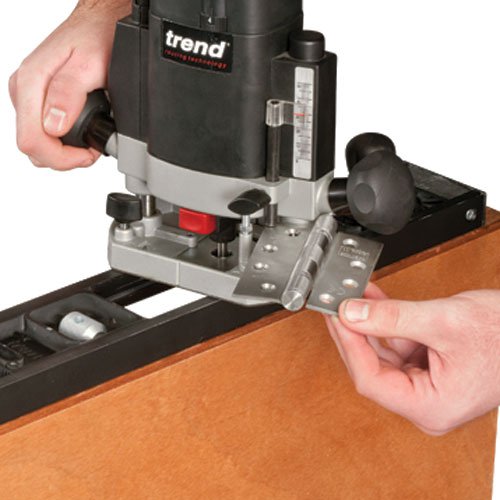

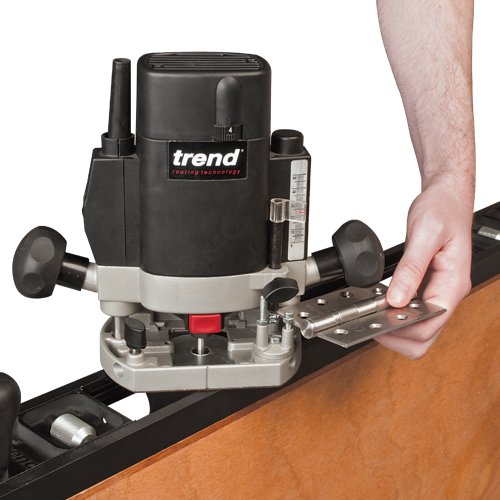

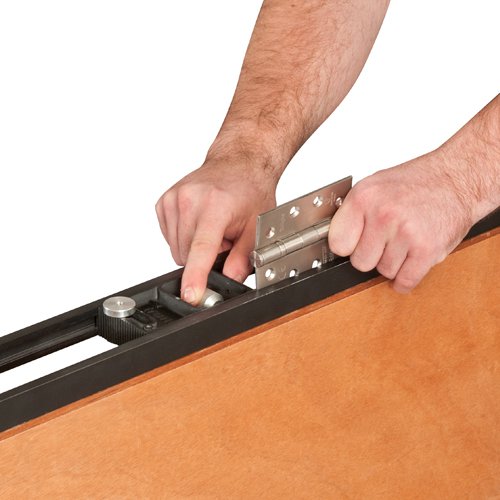

• Quick & simple to set-up as the hinge is used as the pattern.
• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
• Use with a light duty plunge router with 1/4 inch collet.
• Long reach router cutter required, 12mm diameter with 70mm overall length.

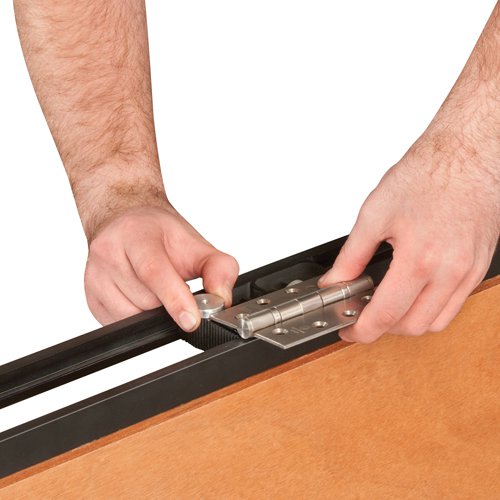

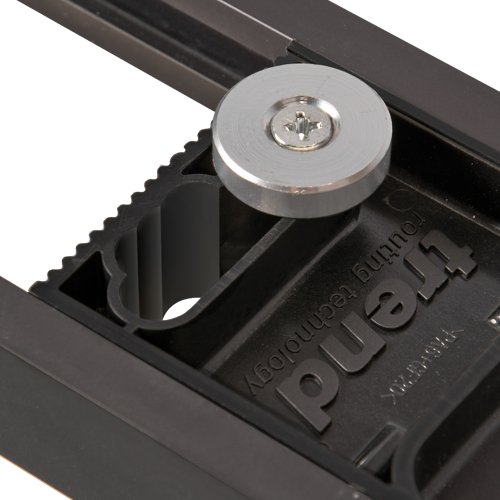

• Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
• Unibase may be needed.
• Patent No. GB2490139
• T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

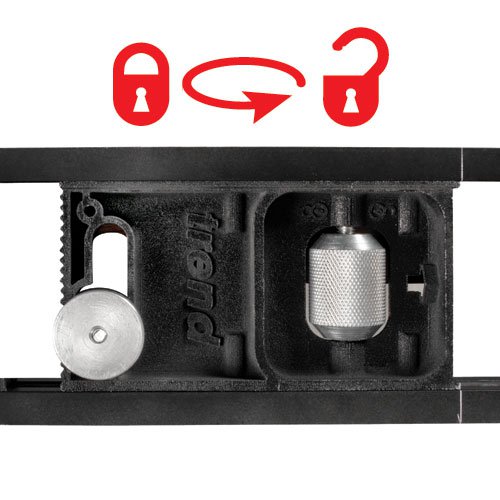

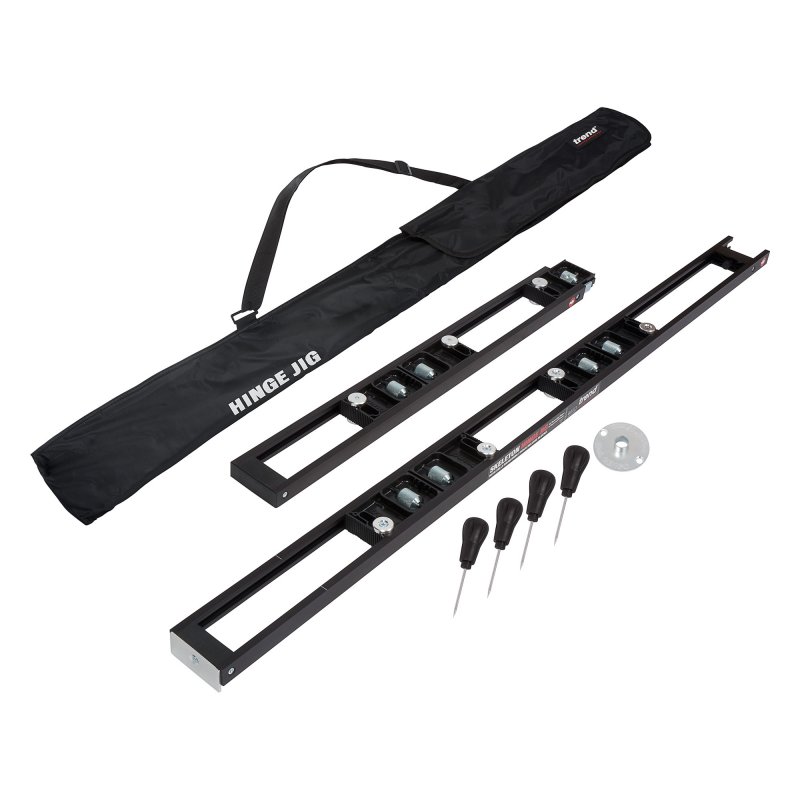

• 3 x Hinge sliding aperture block assemblies
• 4 x Bradawls (short blade)
• 1 x 16mm guide bush
• 1 x Carry case

• Length min: 2 5/8" (67 mm)
• Length max:  5" (127 mm)
• Width min:  1/2" (12.7 mm)
• Width max:  1 3/8" (35 mm)
• Width max. in 35mm rebate: 23 mm
• Width max. in 44mm rebate: 32 mm

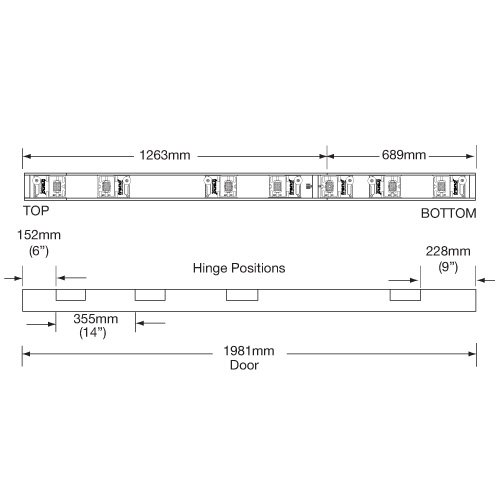

• Door sizes possible
• Height min: 6' 5" (1956 mm)
• Height max: 2100 mm* (6' 10"*)
• Thickness min: 5/8" (16 mm)
• Thickness max: 2" (51 mm)

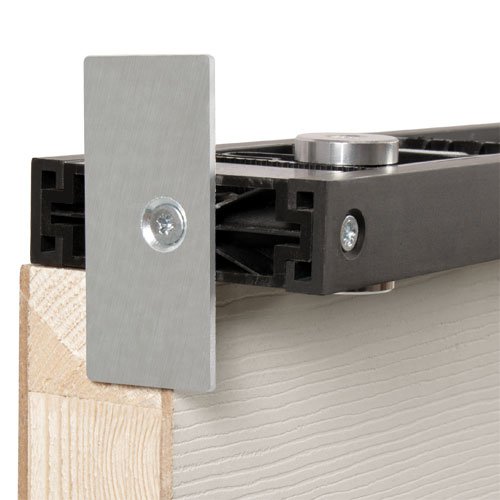

• Edge stops thickness: 6 mm
• Weight: 2.9 kg
• Jig overall length: 1956 mm
• Plate thickness: 3 mm
• Fixed stop max. thickness: 25 mm**
